Dash Integration Module (Dim)

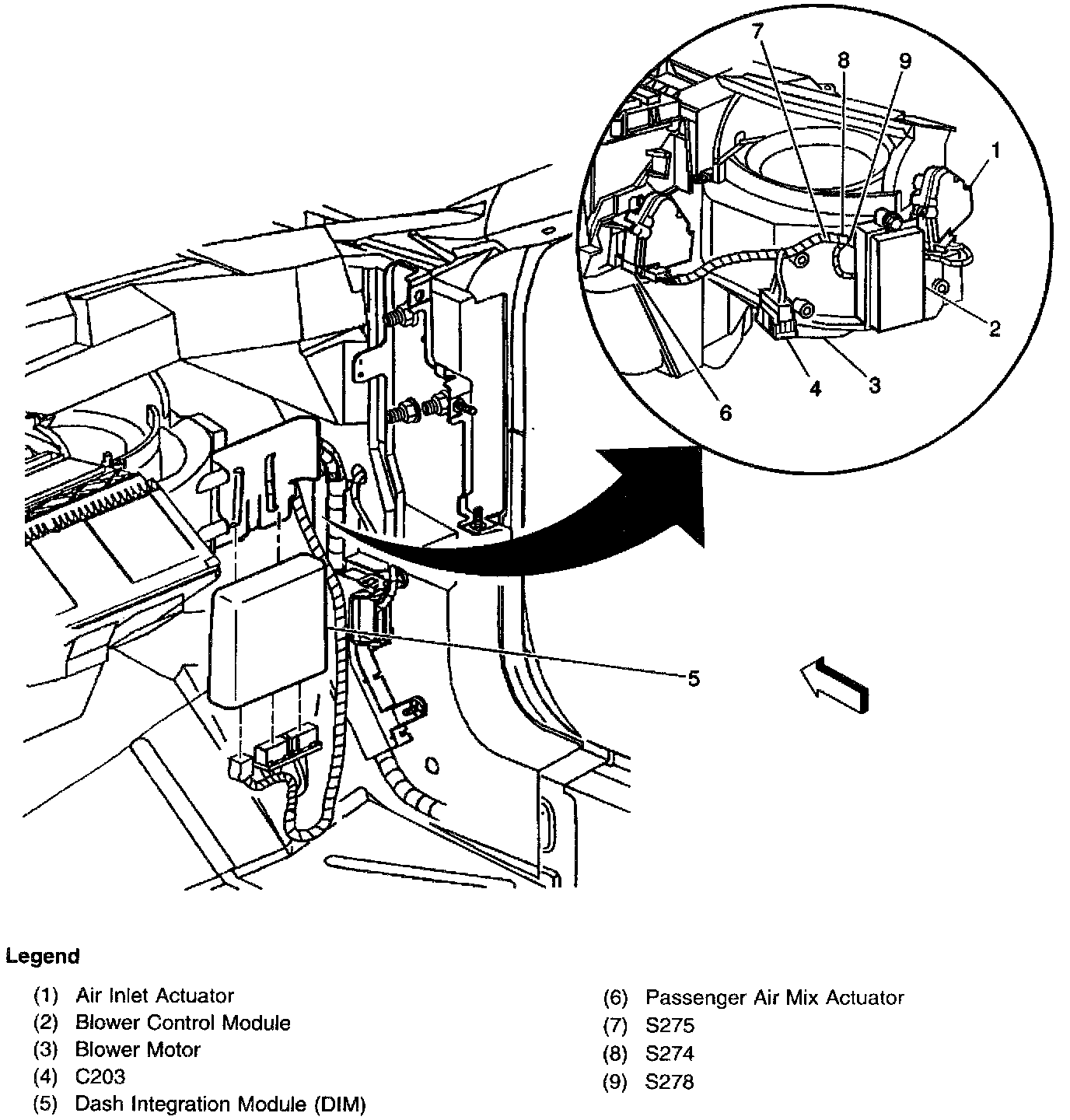

Passenger Compartment, Right Side Below The IP:





Right side of the instrument panel, near the blower motor
