Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module >> Ignition Control Module C2

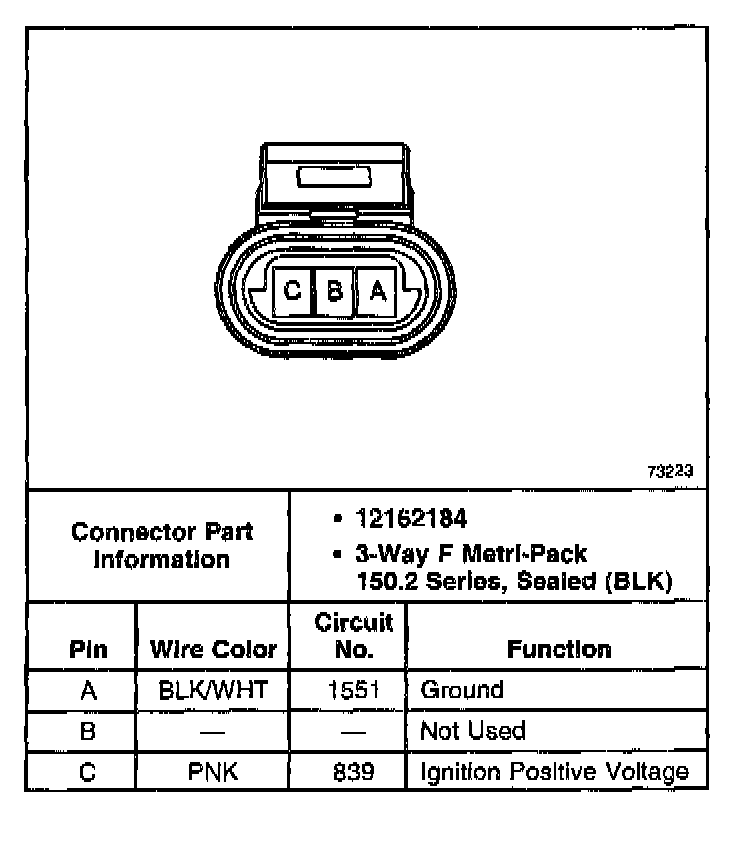

Ignition Control Module C2

Ignition Control Module C2:
