LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2005
>>
STS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Control Module, A/T
Control Module, A/T

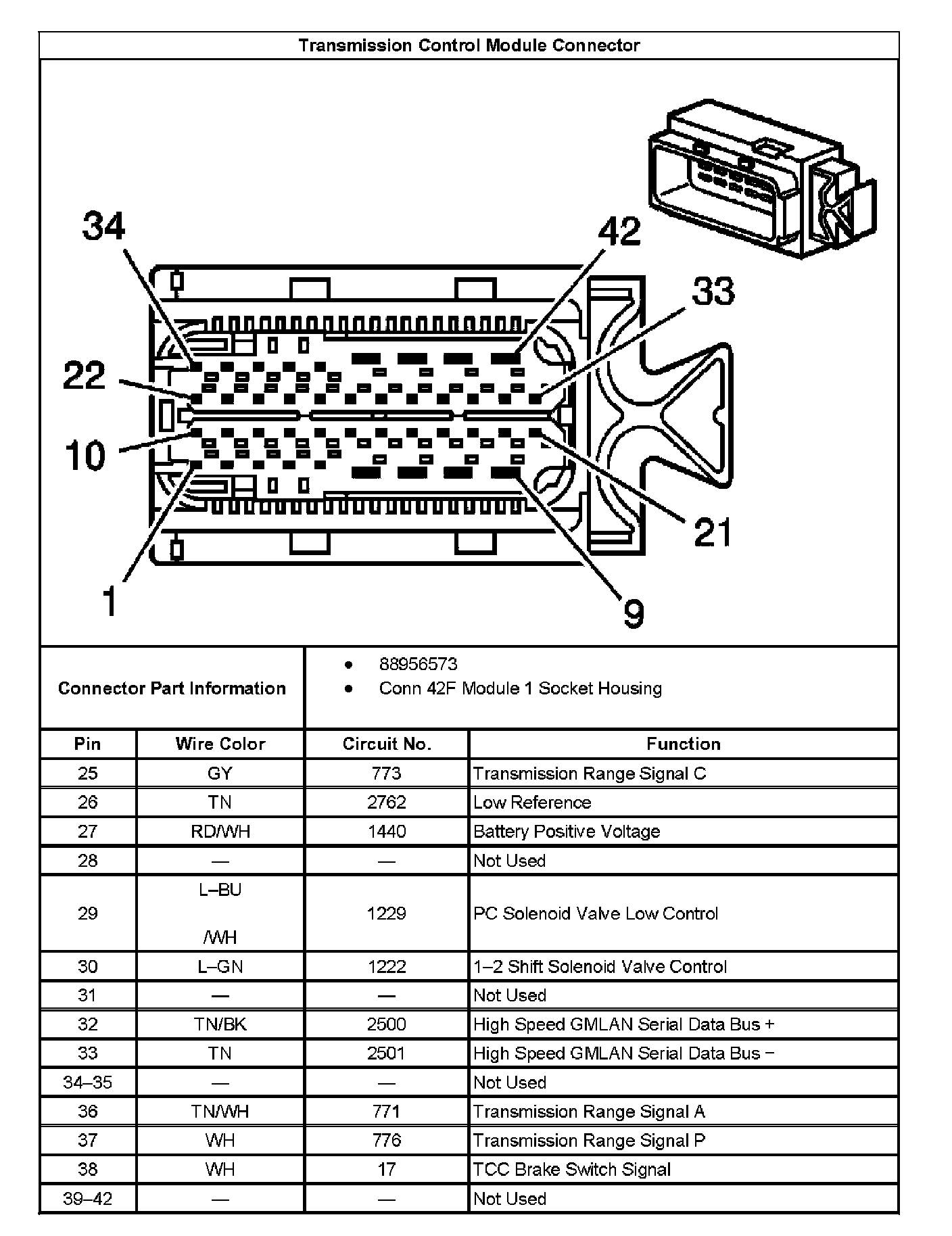

Transmission Control Module Connector:

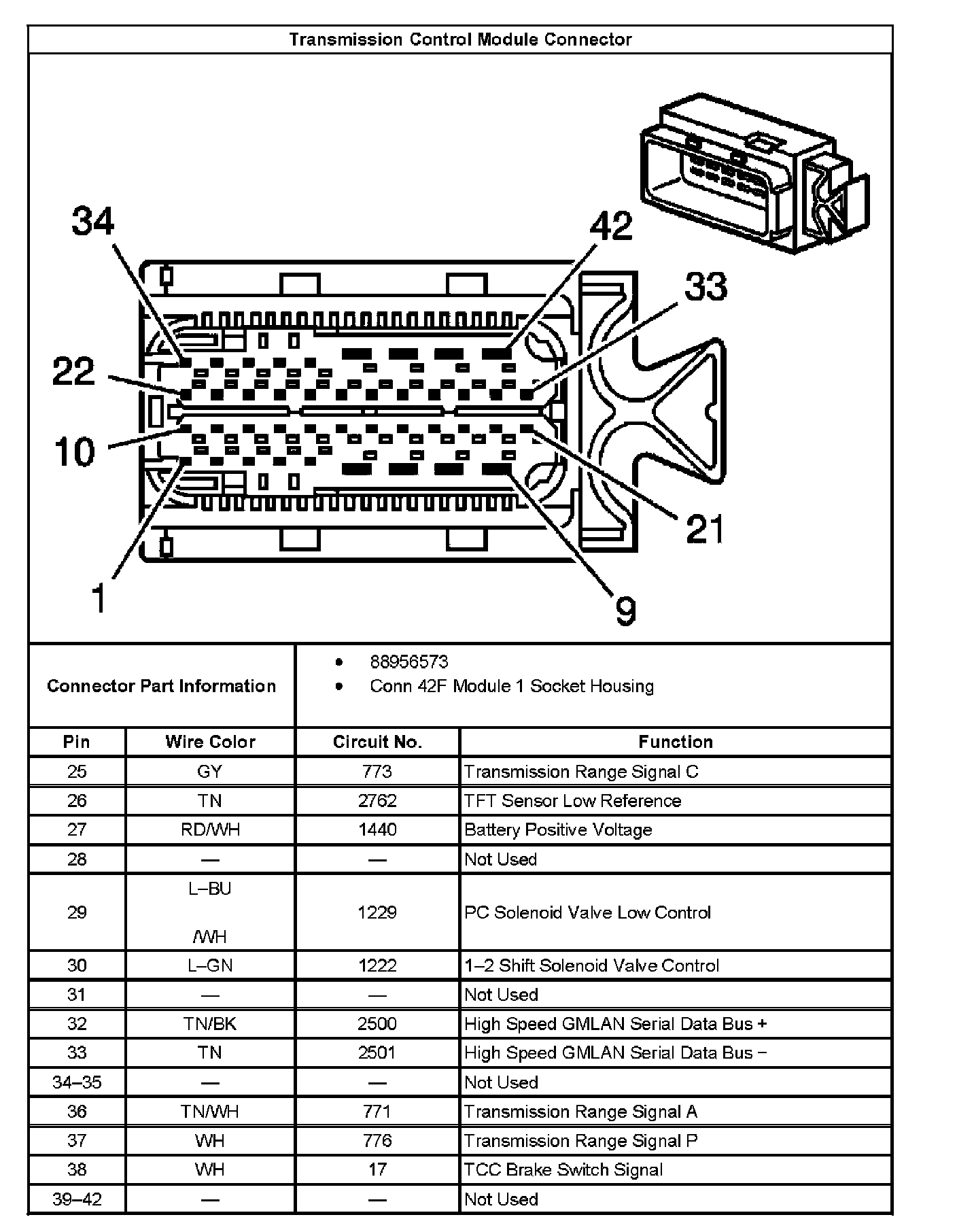

Transmission Control Module Connector:

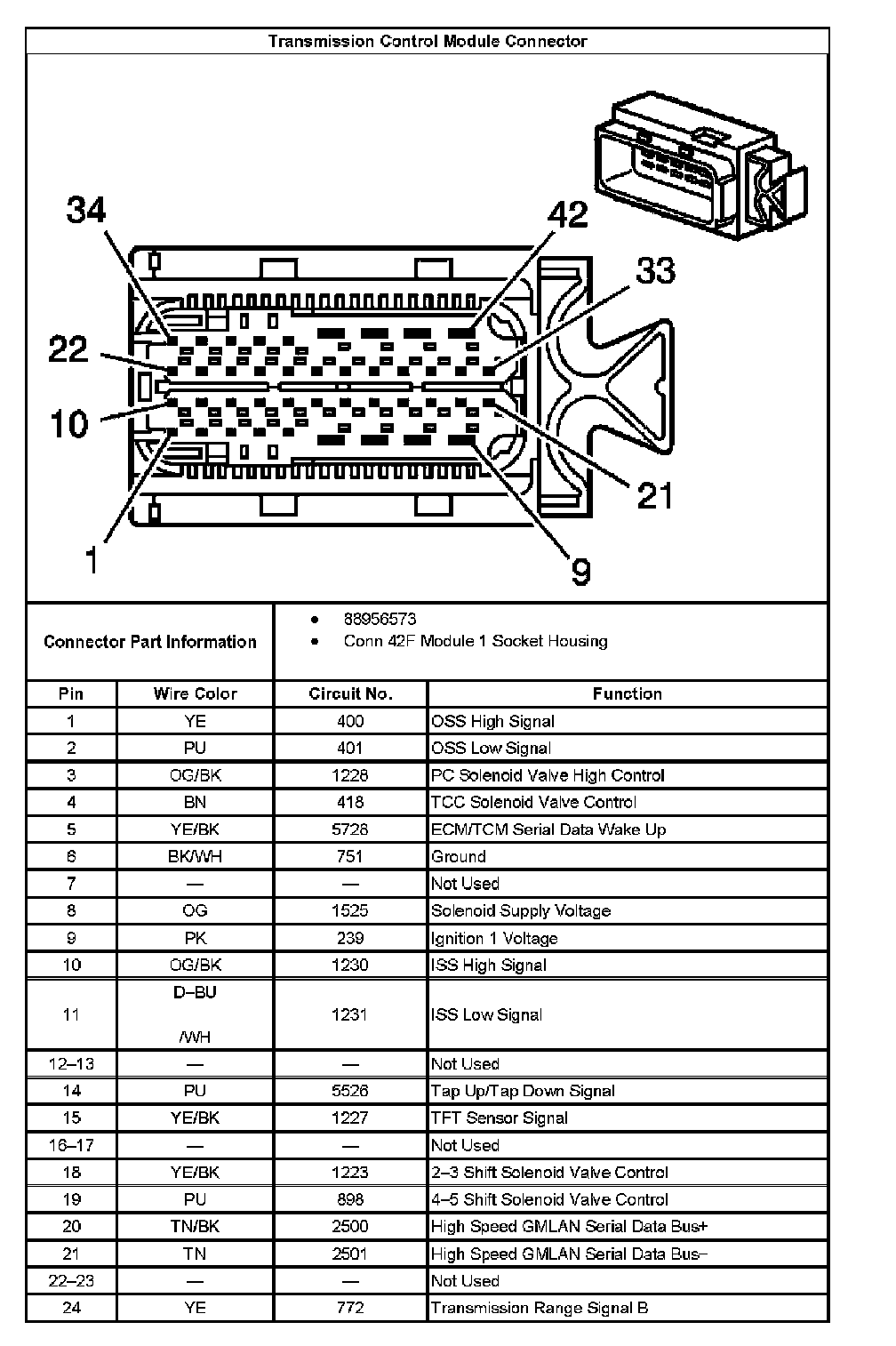

Transmission Control Module Connector:

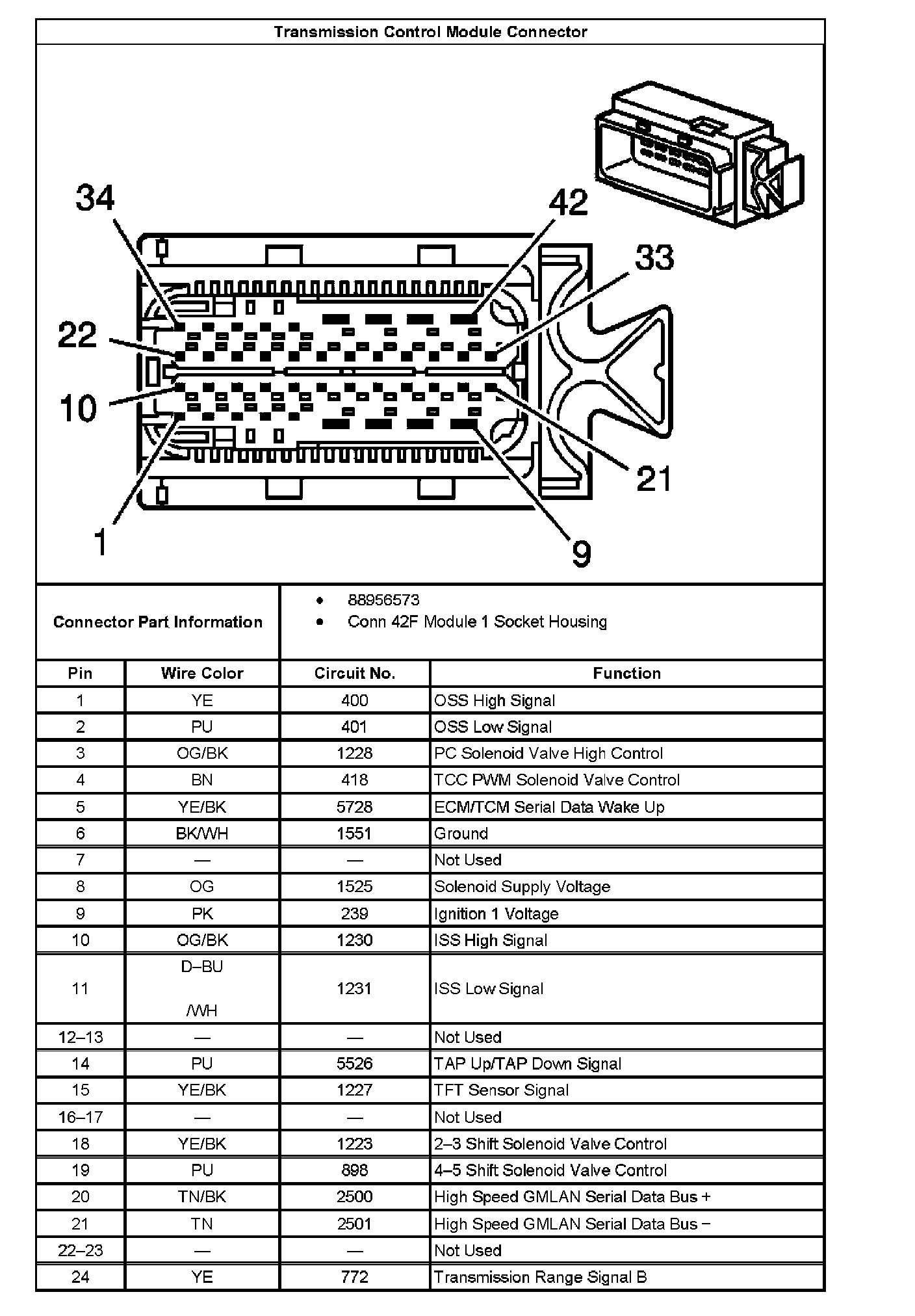

Transmission Control Module Connector:
