Home
>>
Cadillac
>>
2005
>>
STS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Rear Integration Module (RIM) C4
Rear Integration Module (RIM) C4

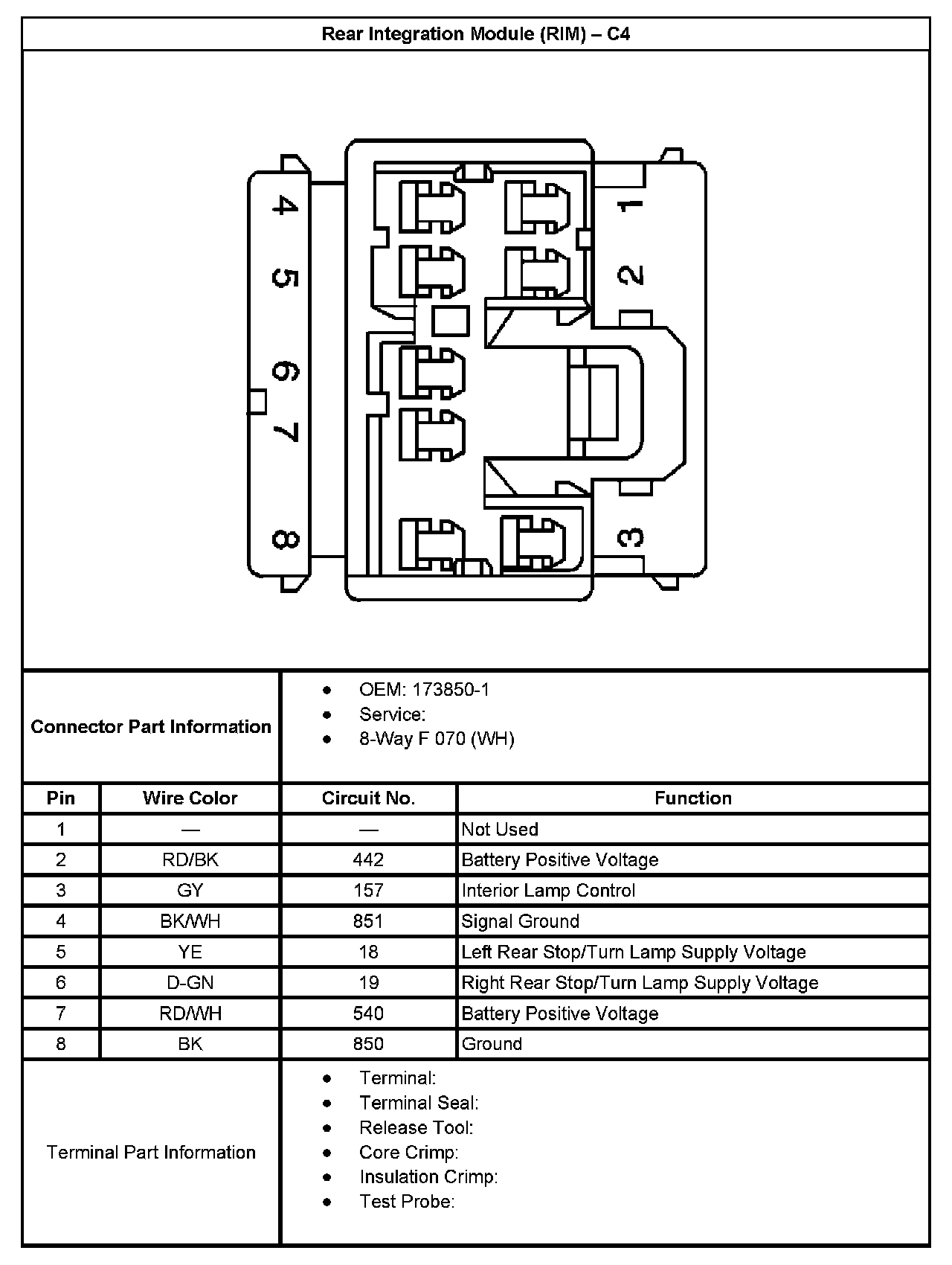

Rear Integration Module (RIM) - C4:
