Climate Control Seat Module

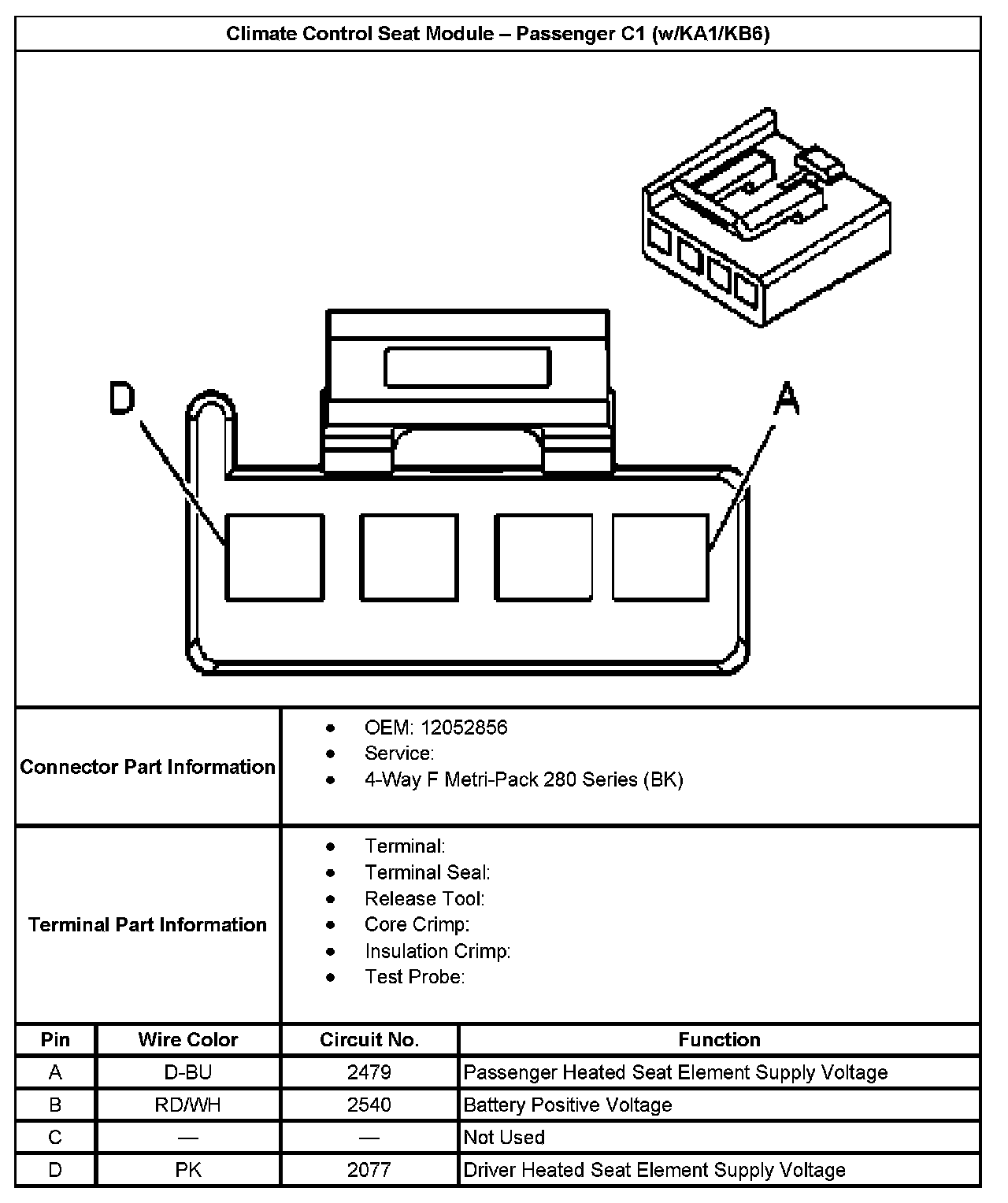

Climate Control Seat Module - Passenger C1 (With RPO Code KA1/KB6):

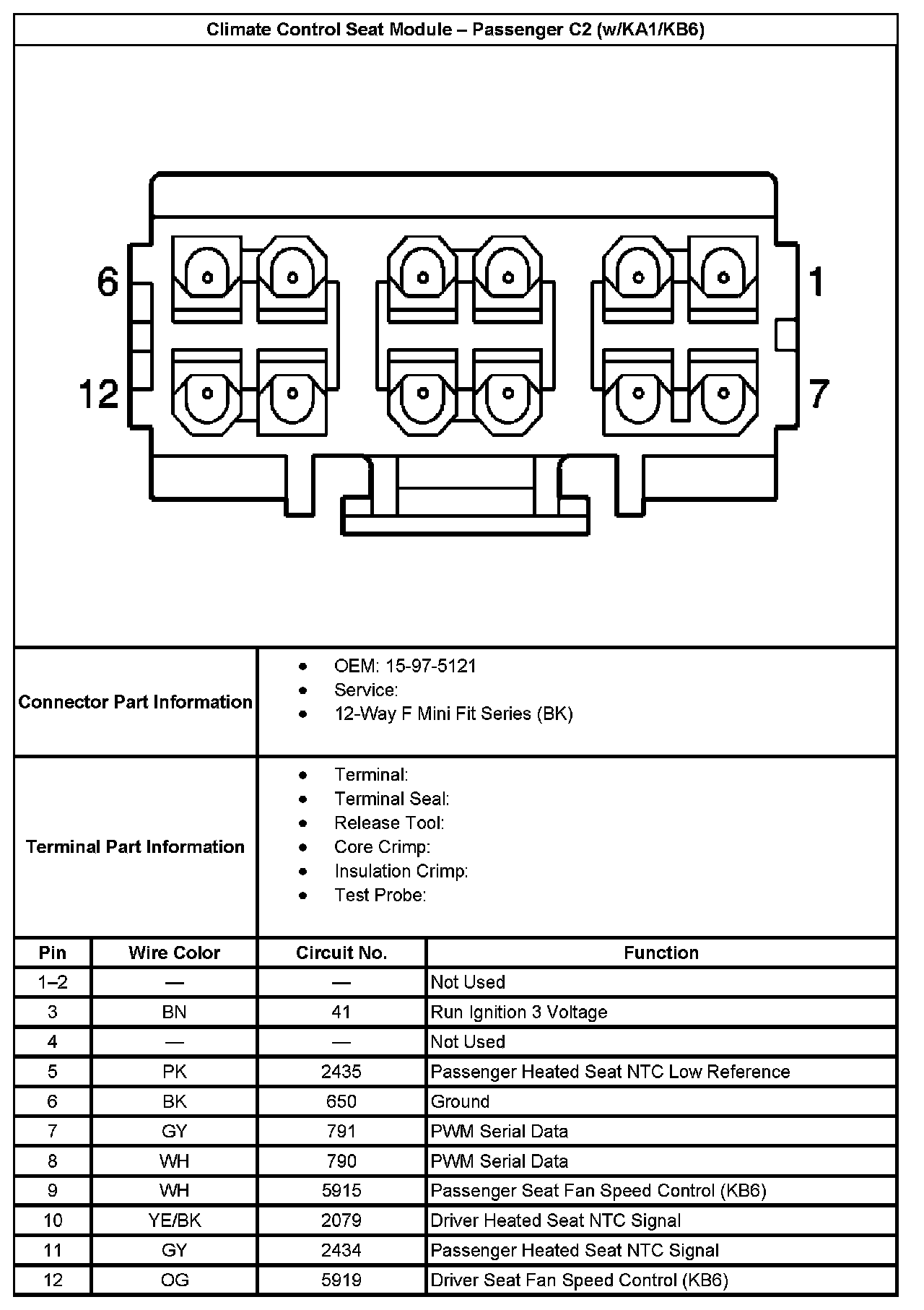

Climate Control Seat Module - Passenger C2 (With RPO Code KA1/KB6):
