Heated Seat Module

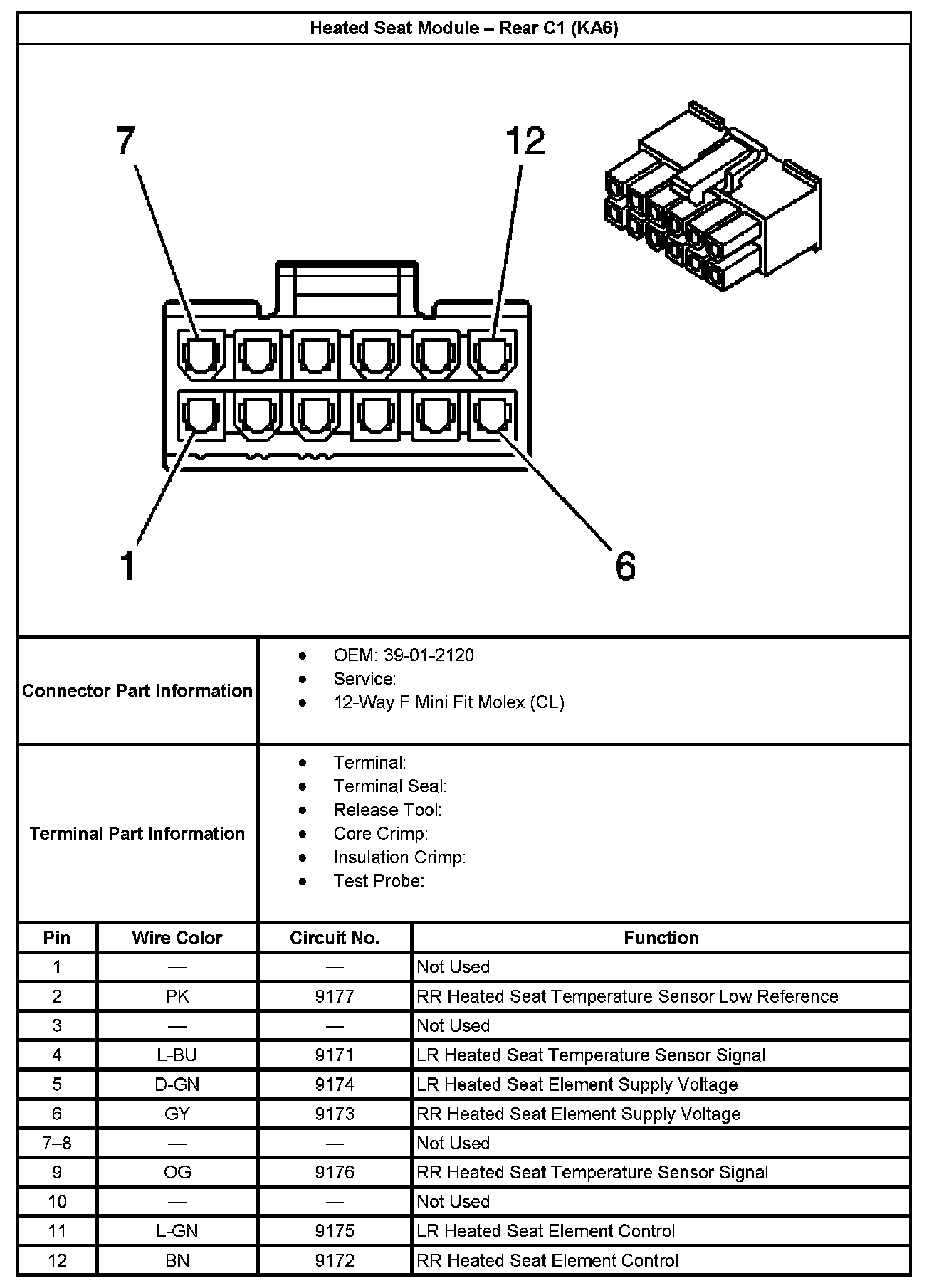

Heated Seat Module - Rear C1 (With RPO Code KA6):

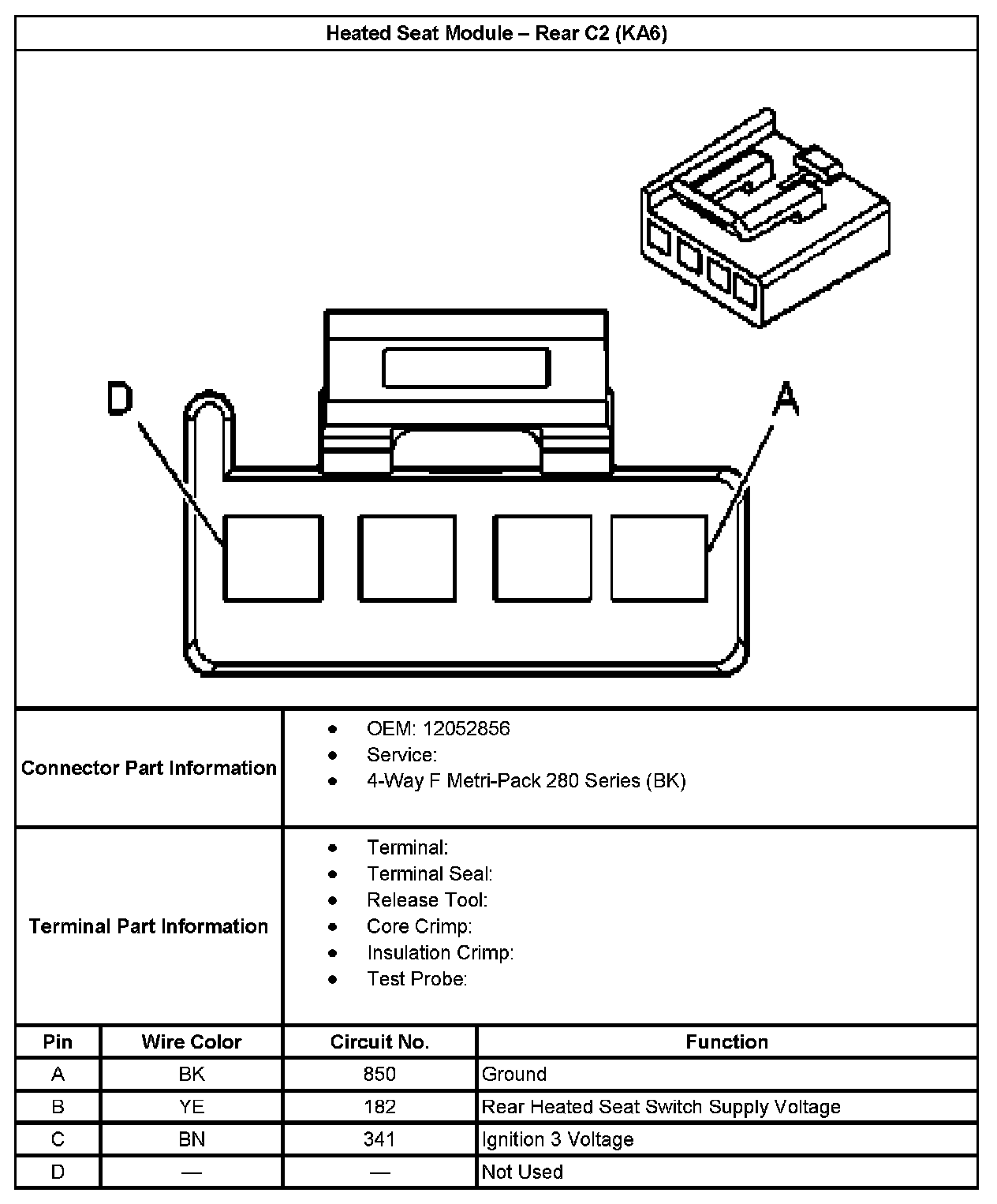

Heated Seat Module - Rear C2 (With RPO Code KA6):

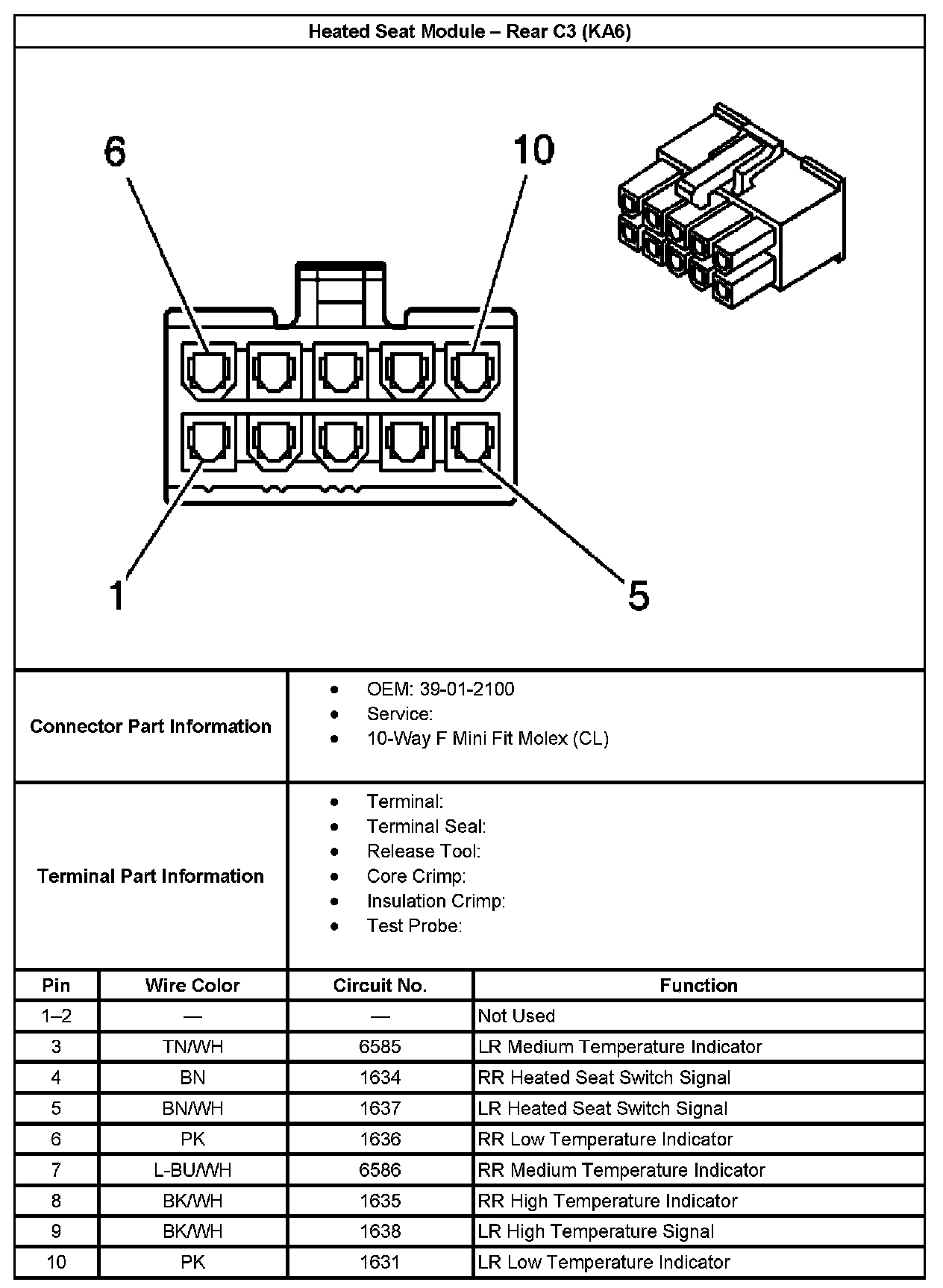

Heated Seat Module - Rear C3 (With RPO Code KA6):
