Home
>>
Cadillac
>>
2005
>>
STS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Engine Compartment Views
Engine Compartment Views

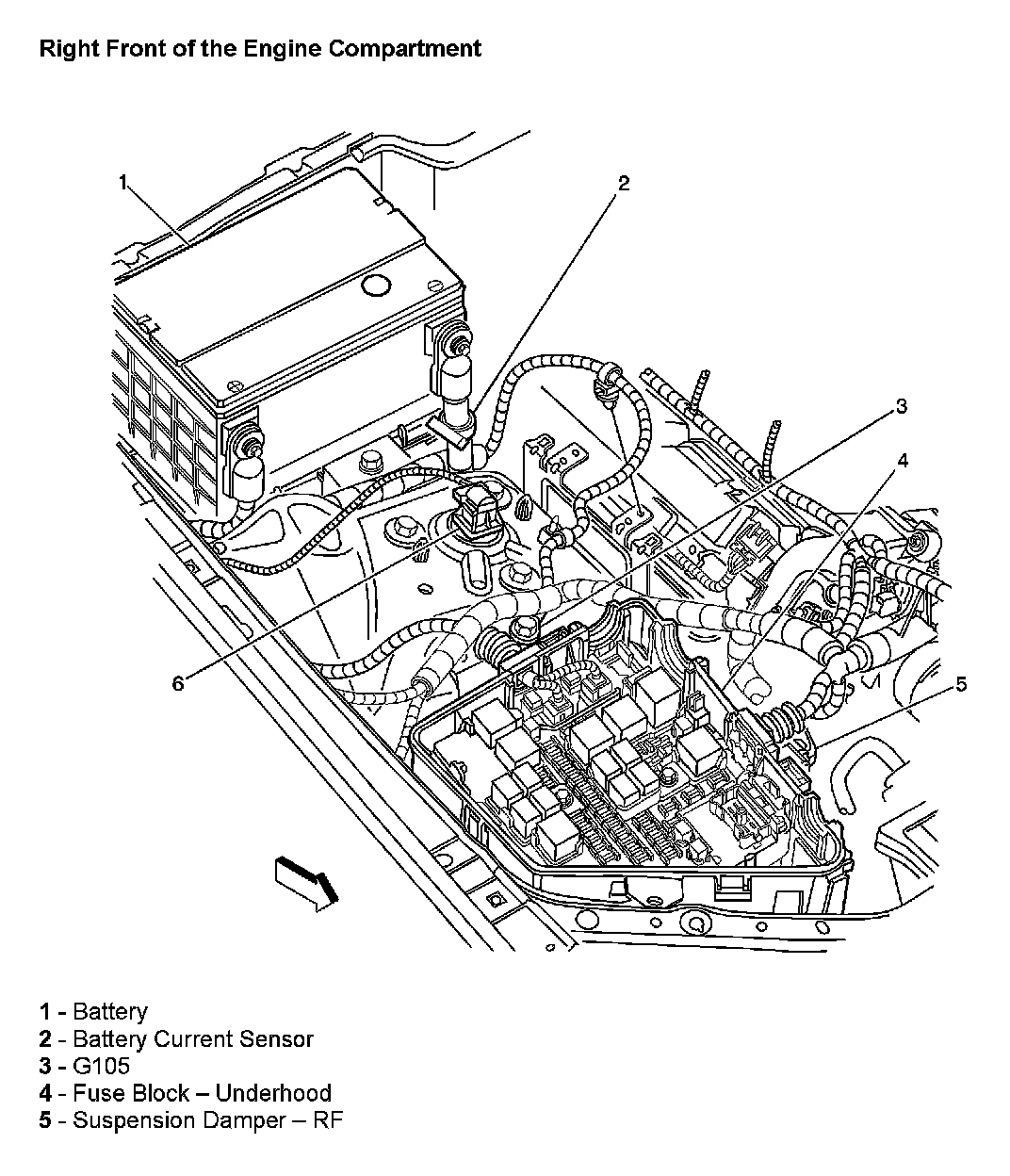

Right Front Of The Engine Compartment:
