Chevrolet
>>
2000
>>
Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Control Module
Power Seat Control Module

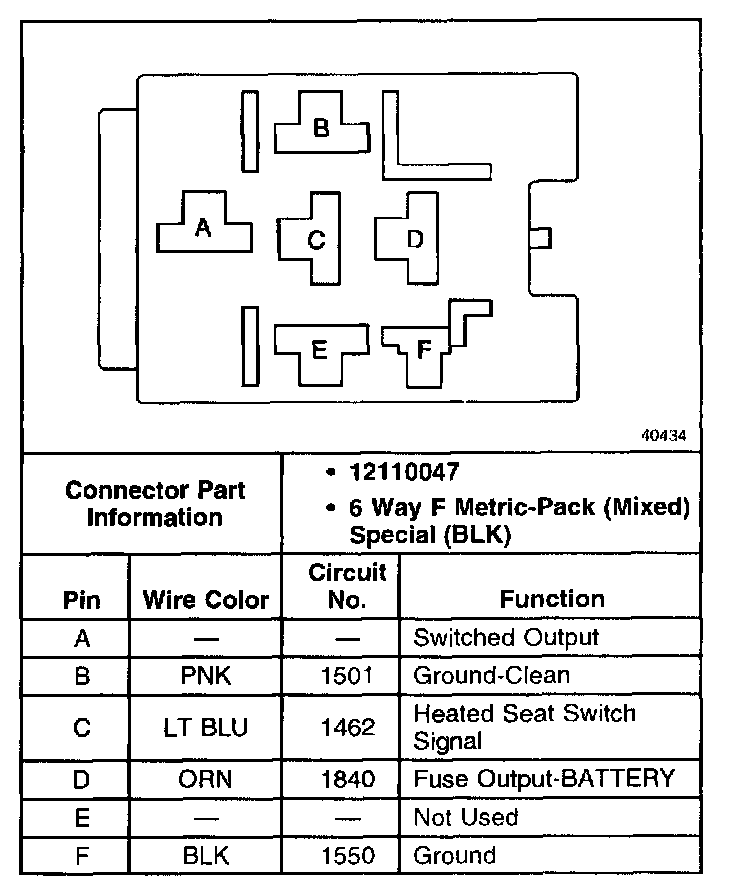

Heated Seat Control Module:
