Chevrolet
>>
2000
>>
Lumina V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Relay

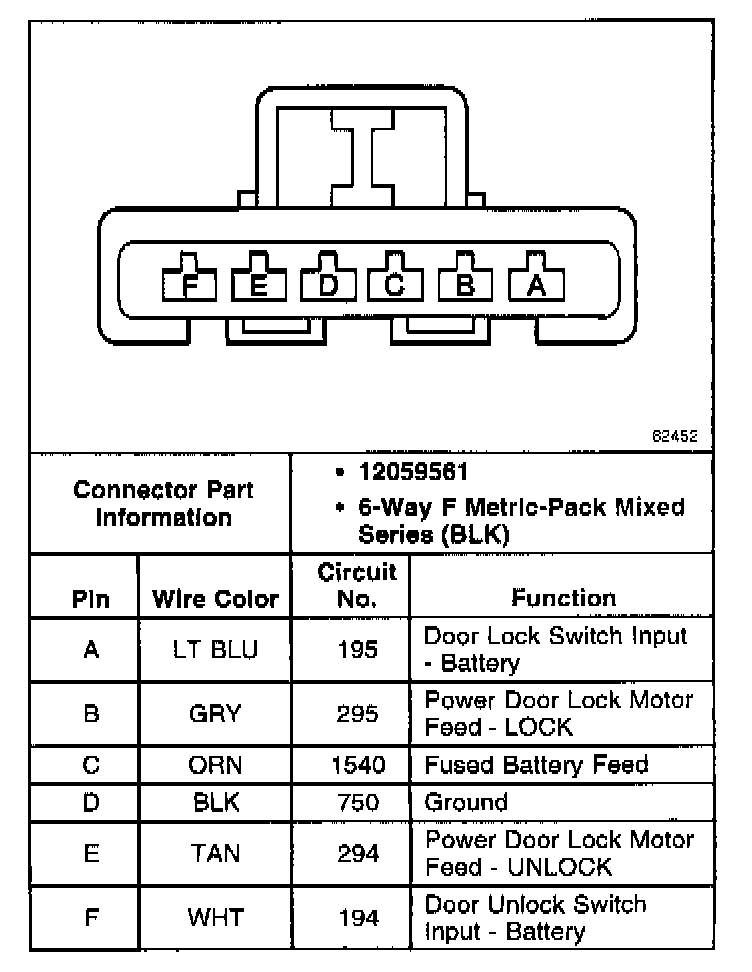

Power Door Lock Relay
Door Lock Relay:
