Home >> Chevrolet >> 2003 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector >> Fuel Injector #2

Fuel Injector #2

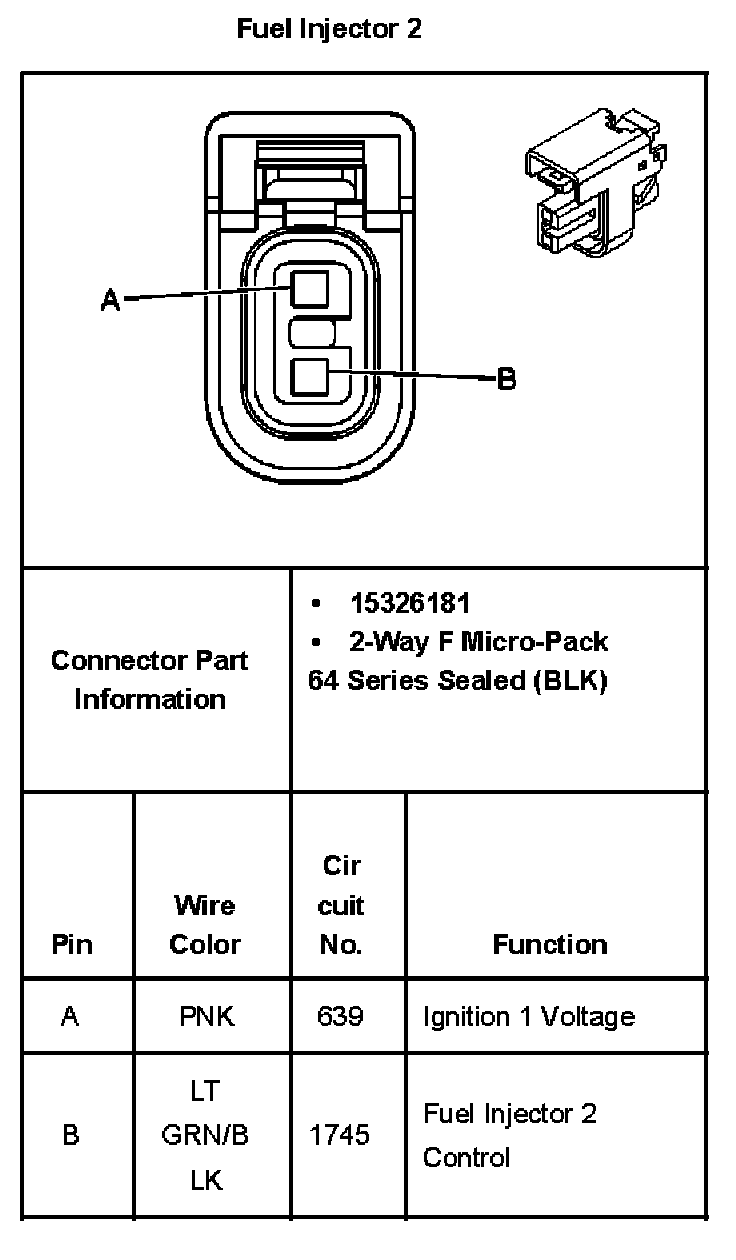

Fuel Injector 2:
