Ignition Control Module

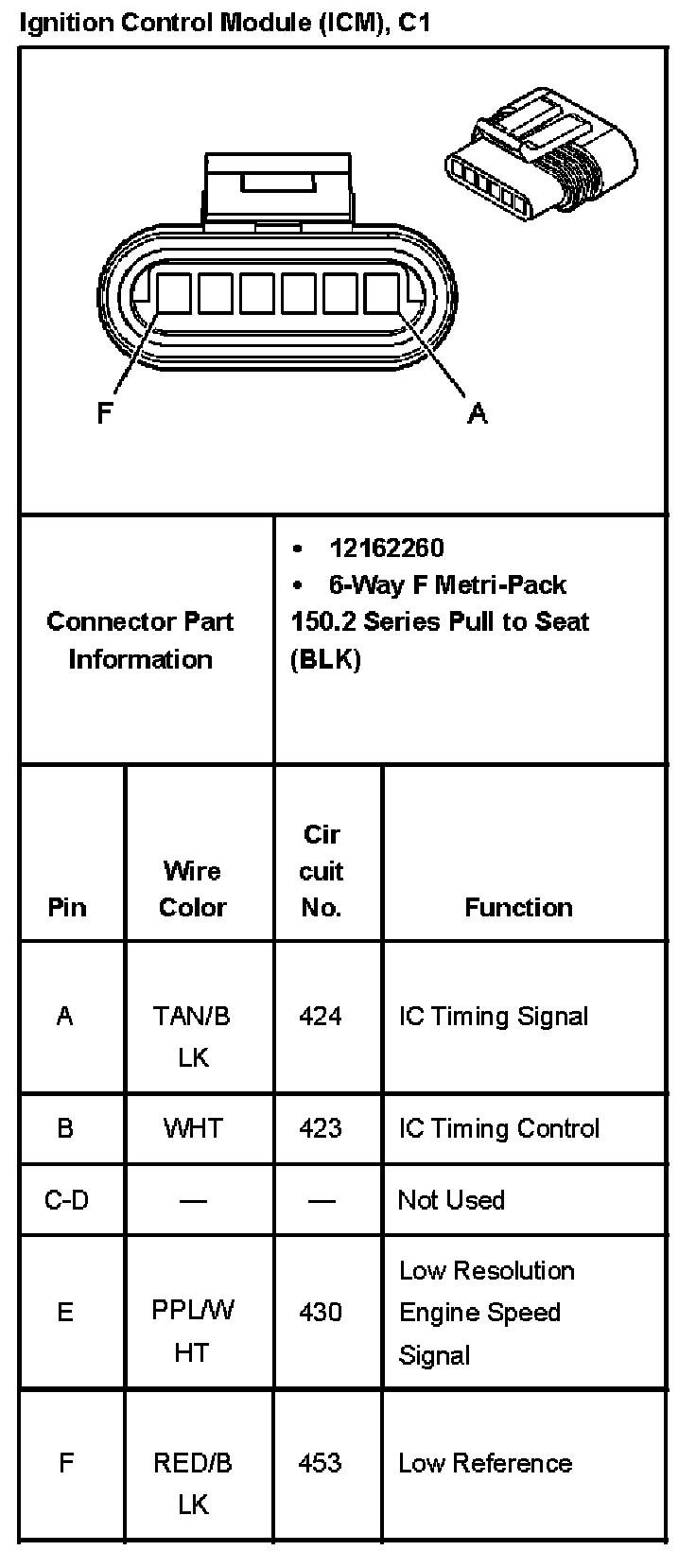

Ignition Control Module (ICM), C1:

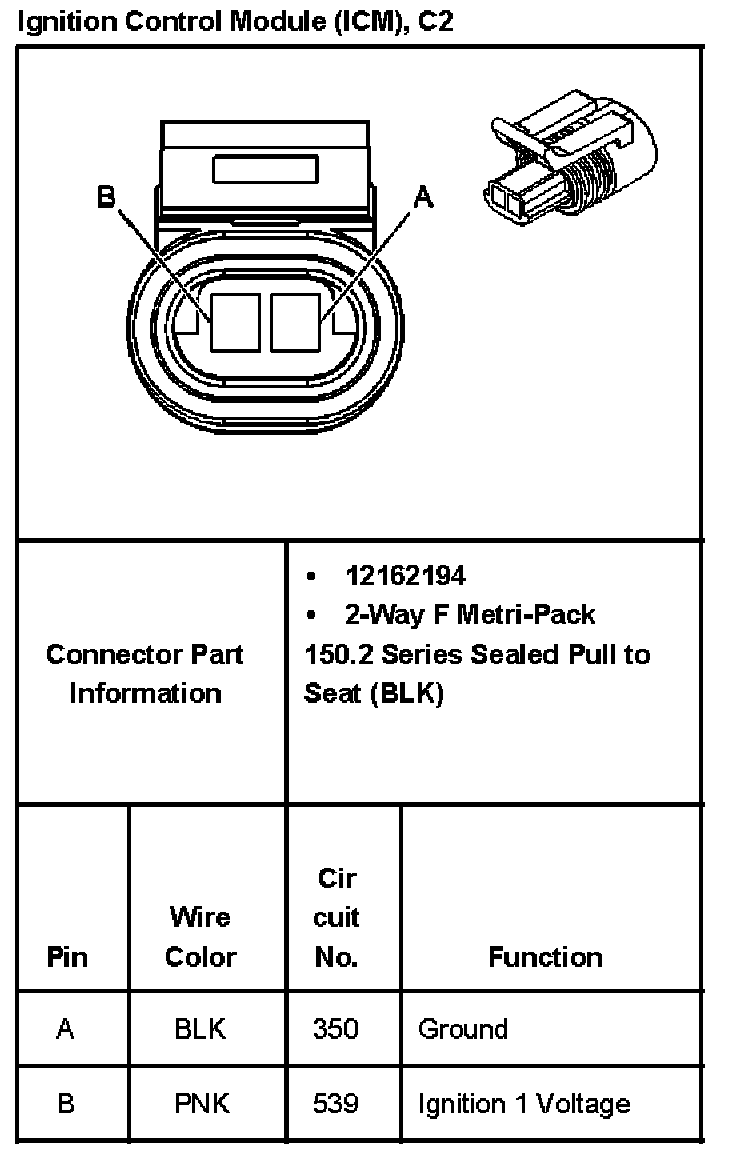

Ignition Control Module (ICM), C2:

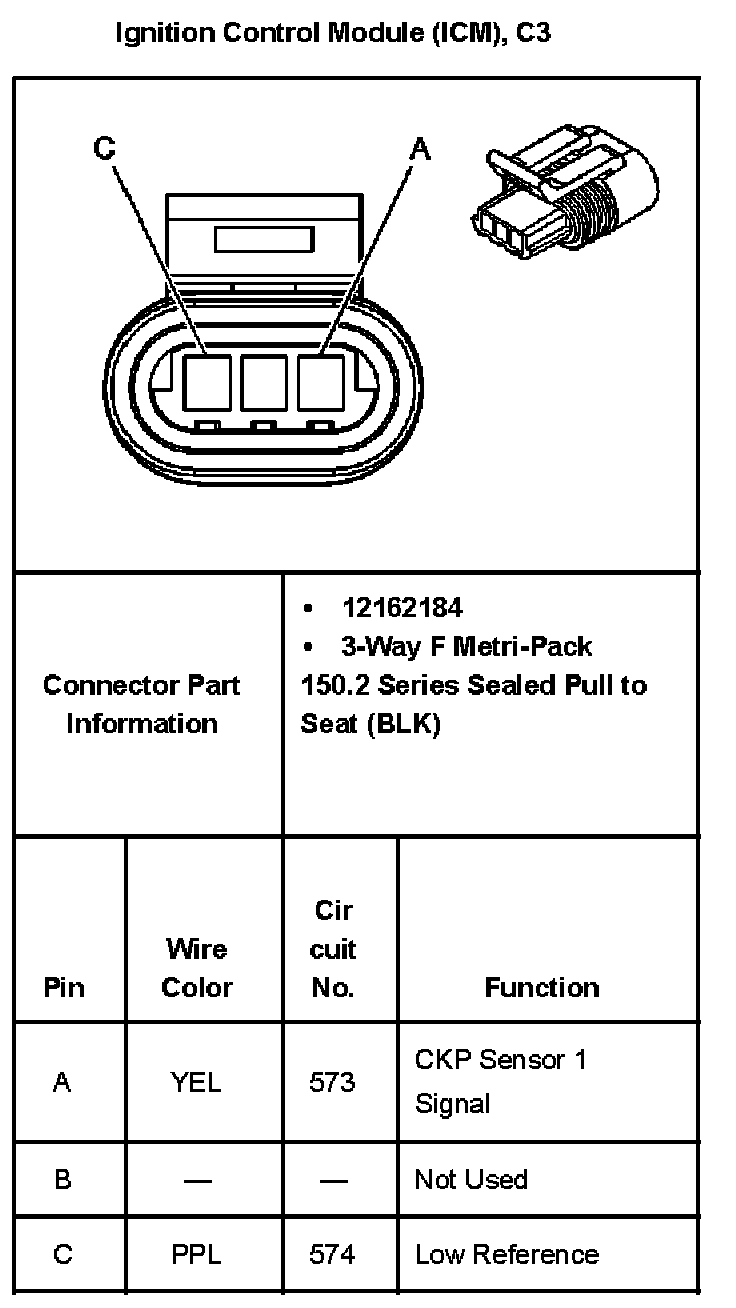

Ignition Control Module (ICM), C3:
