Home >> Chevrolet >> 2005 >> Cobalt L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> RF Door Tweeter

RF Door Tweeter

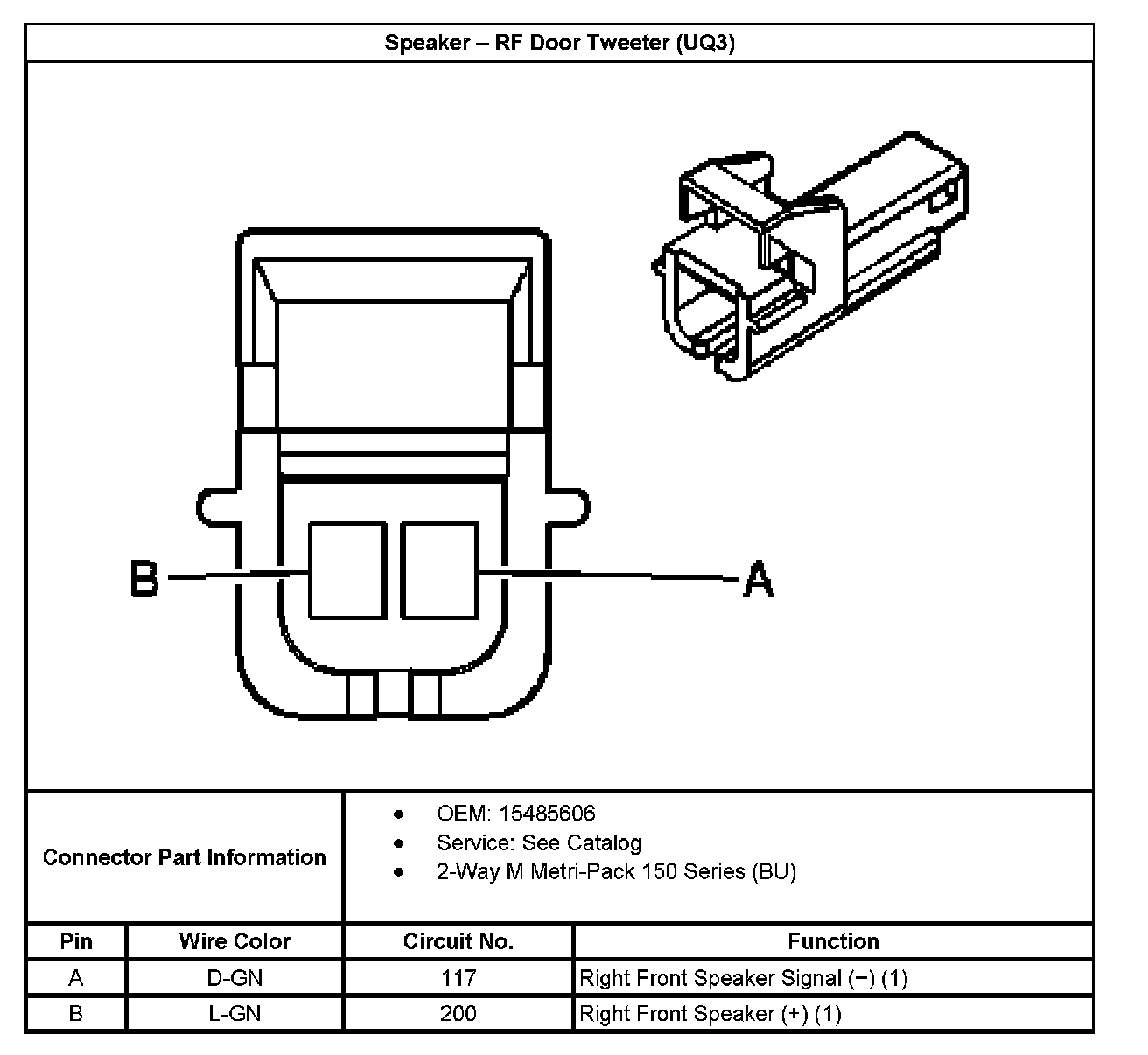

Speaker - RF Door Tweeter (With RPO Code UQ3):
