Engine Control Module (ECM) C1

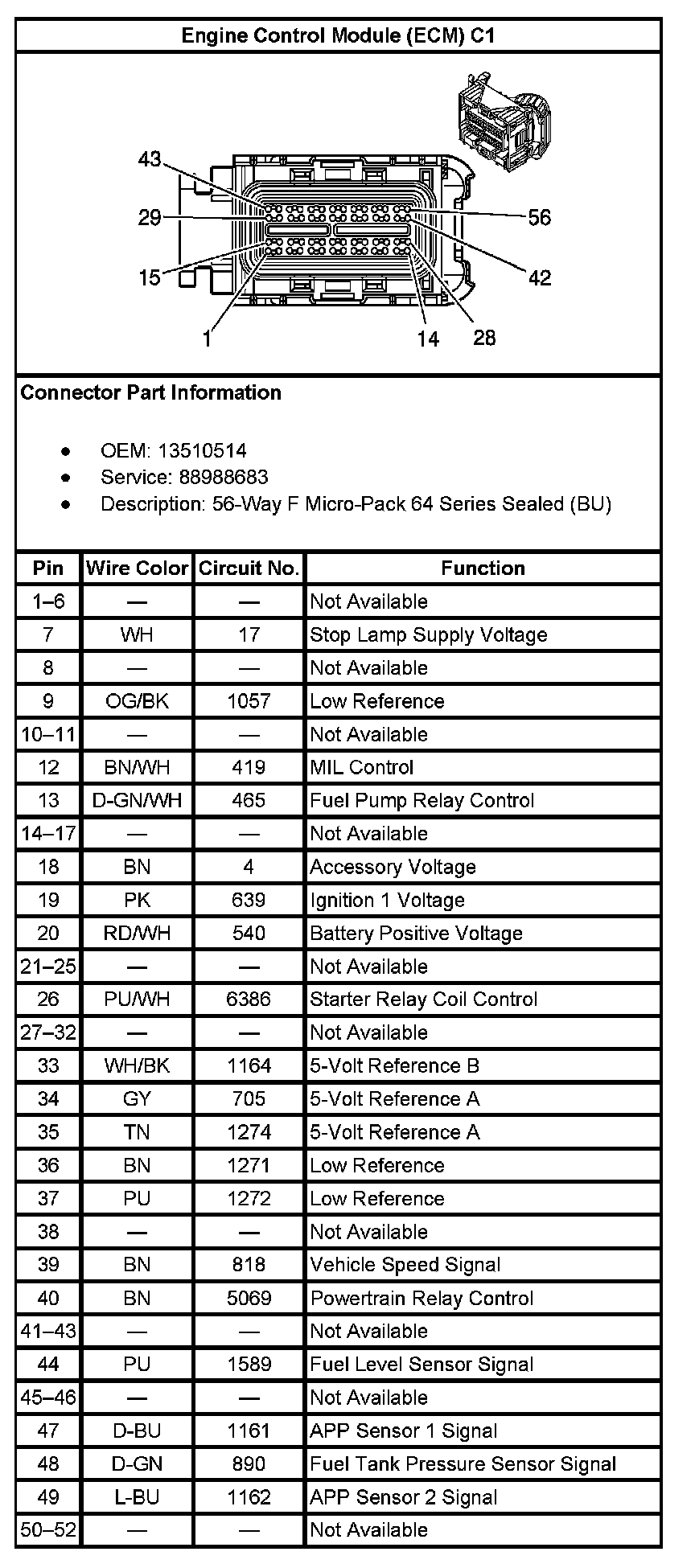

Engine Control Module (ECM) C1 (Part 1):

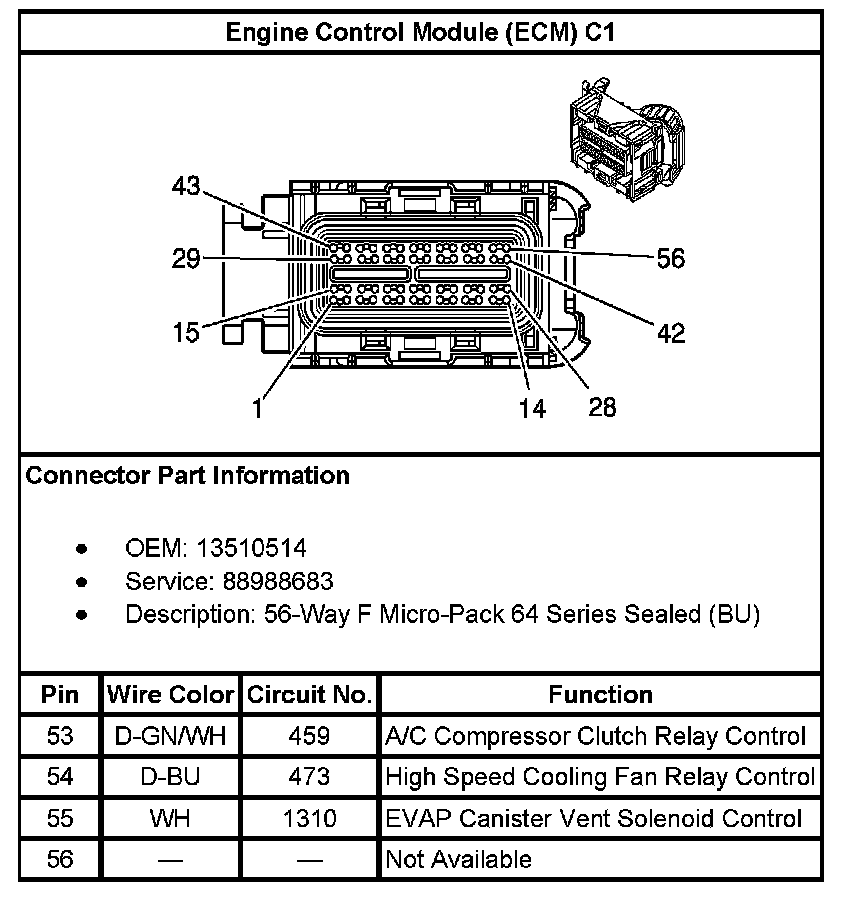

Engine Control Module (ECM) C1 (Part 2):
