Home >> Chevrolet >> 2006 >> Malibu V6-3.9L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Control Module

Wiper Control Module

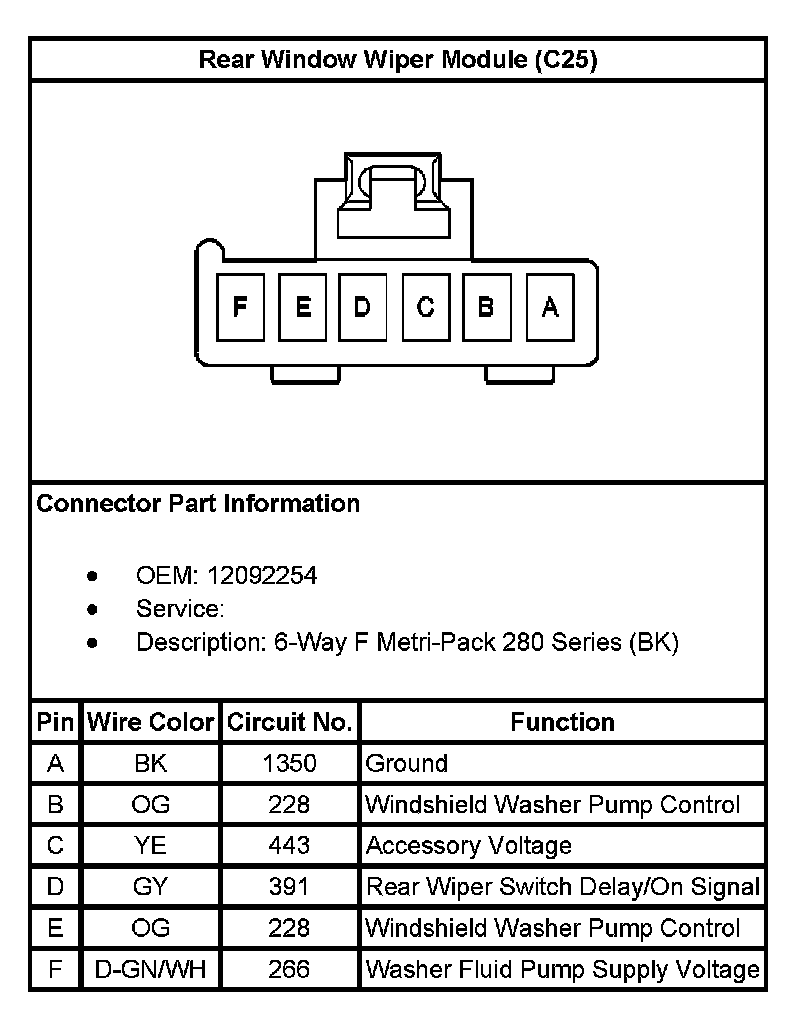

Rear Window Wiper Module (With RPO Code C25):
