Home >> Chevrolet >> 2006 >> Monte Carlo V6-3.9L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) C2

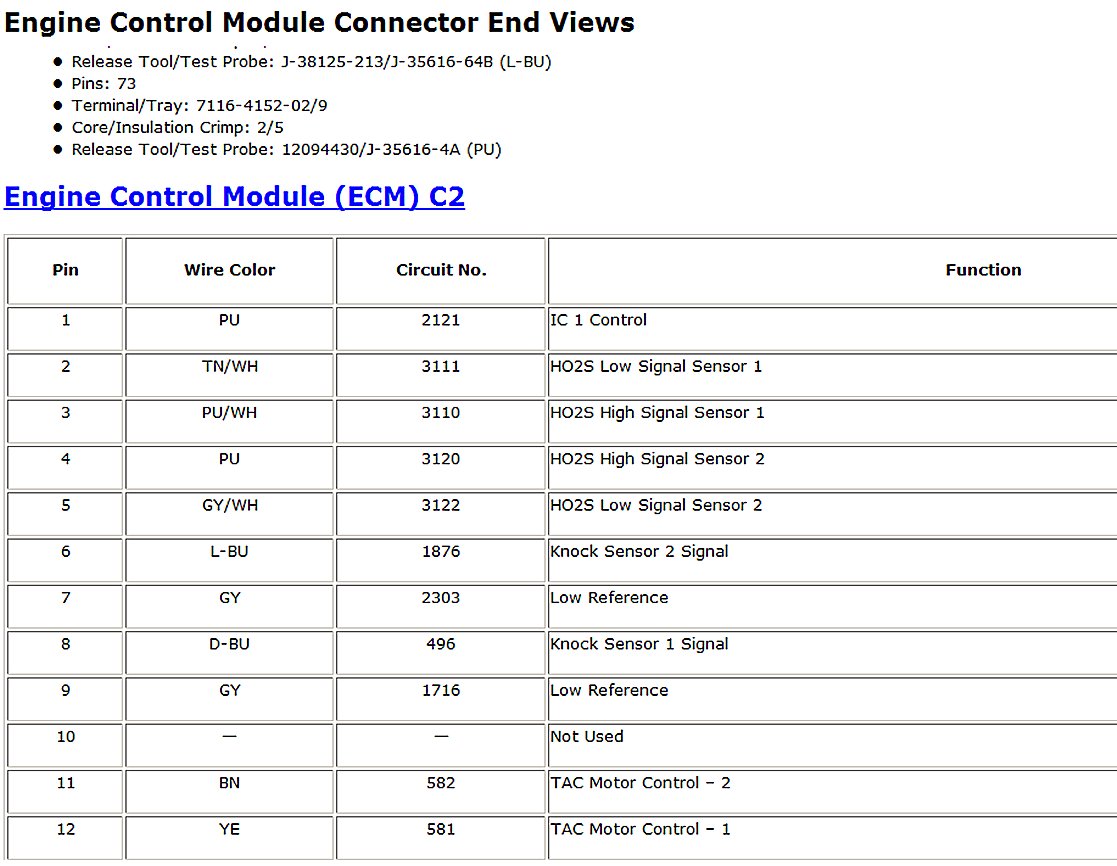

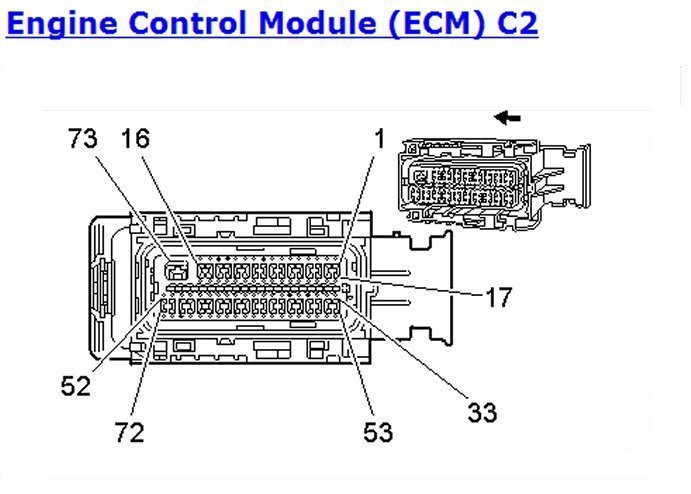

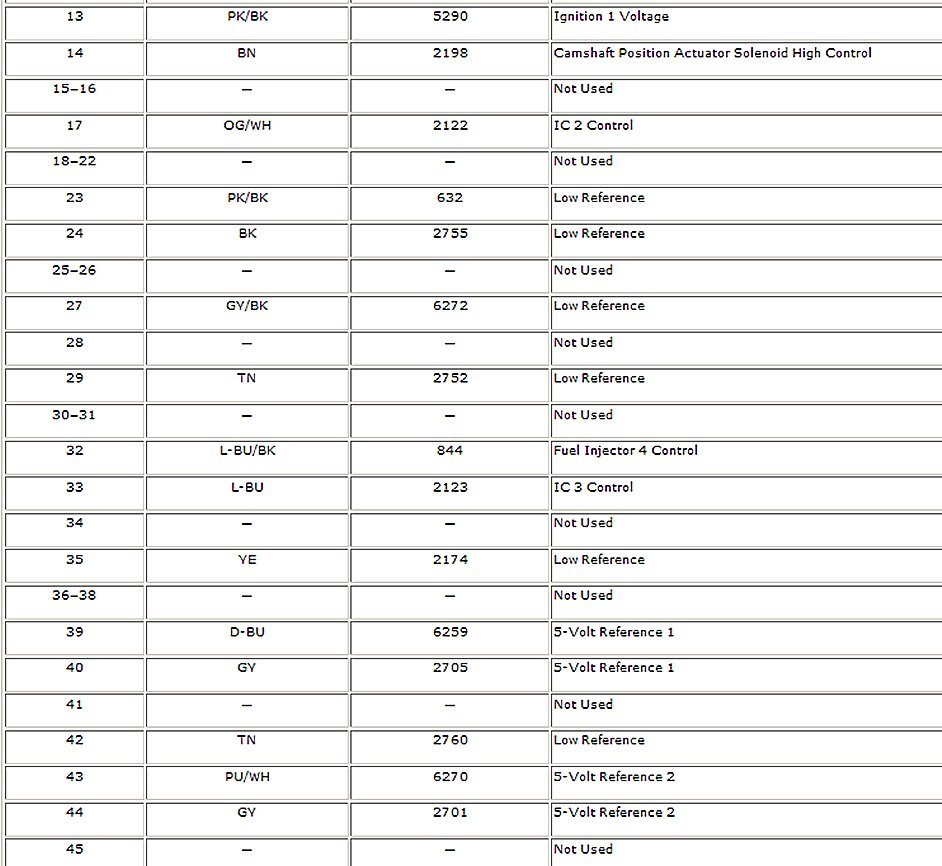

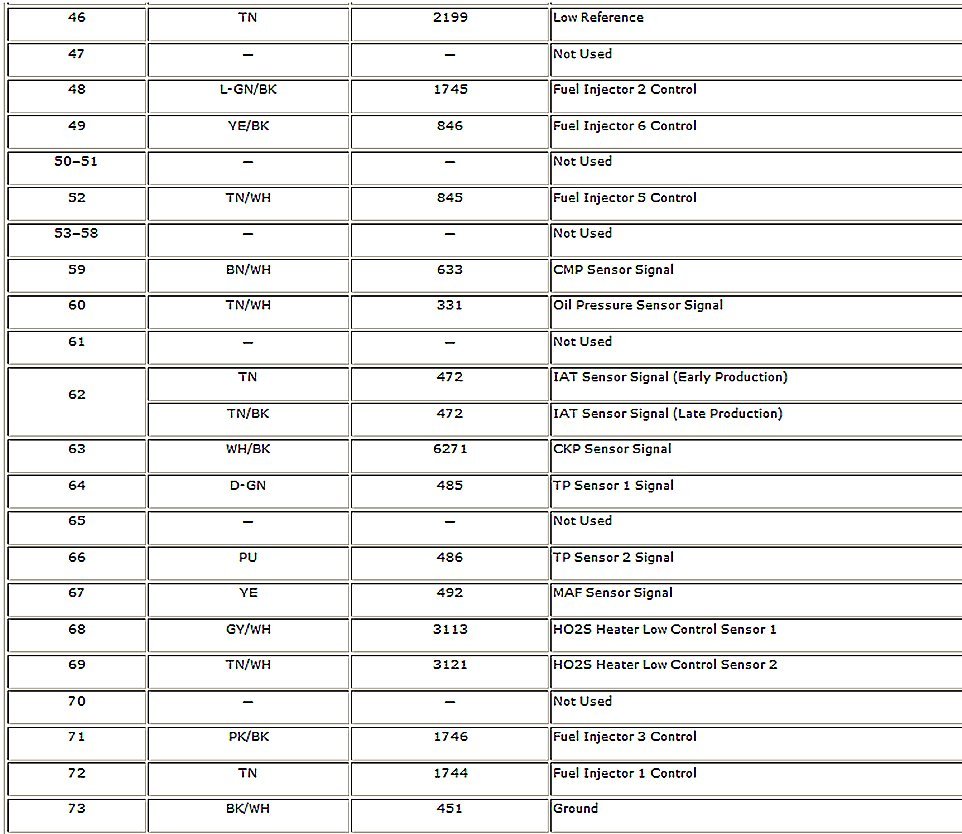

Engine Control Module (ECM) C2
