Engine Control Module (ECM) C3

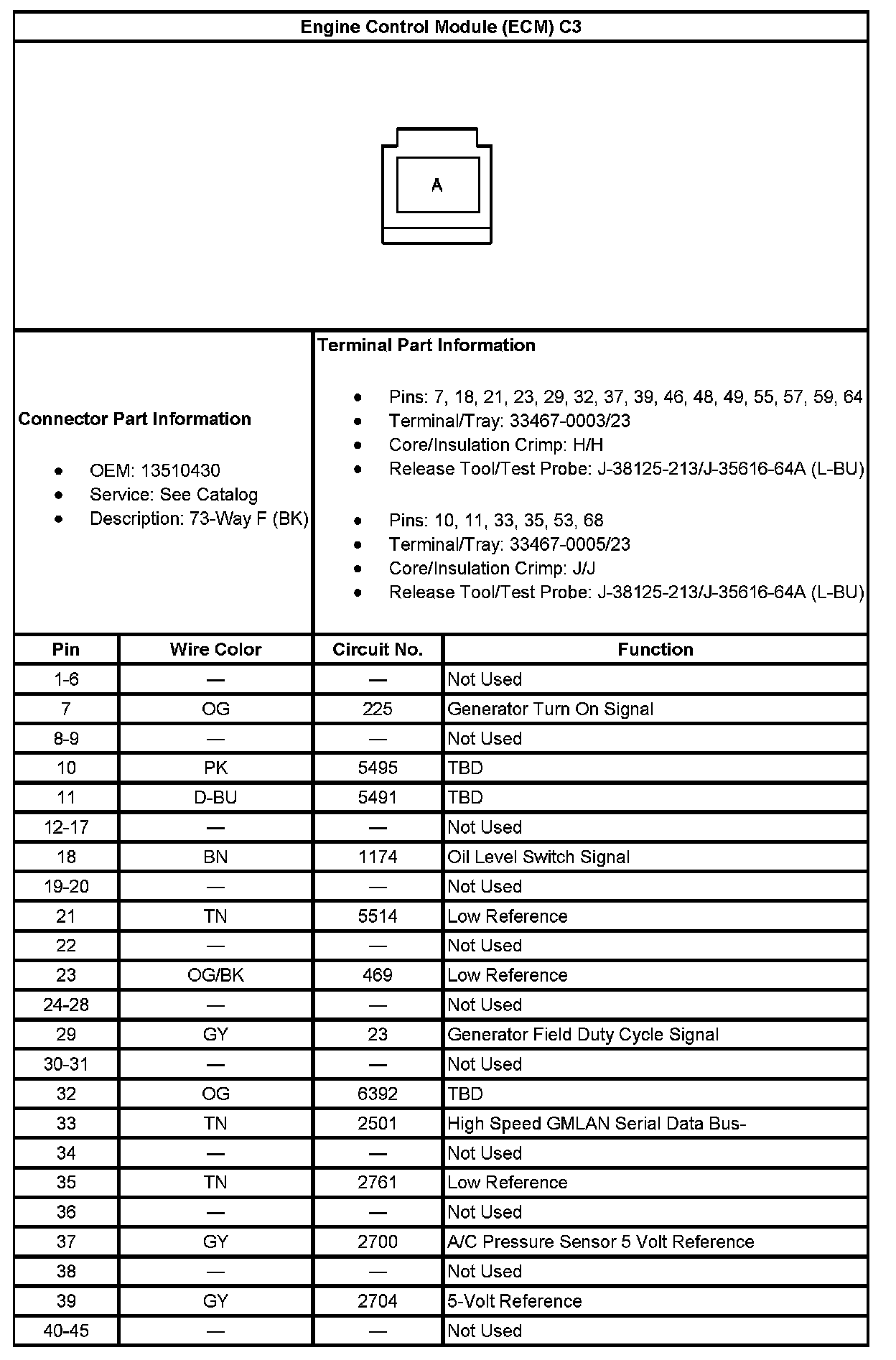

Engine Control Module (ECM) C3 (Part 1):

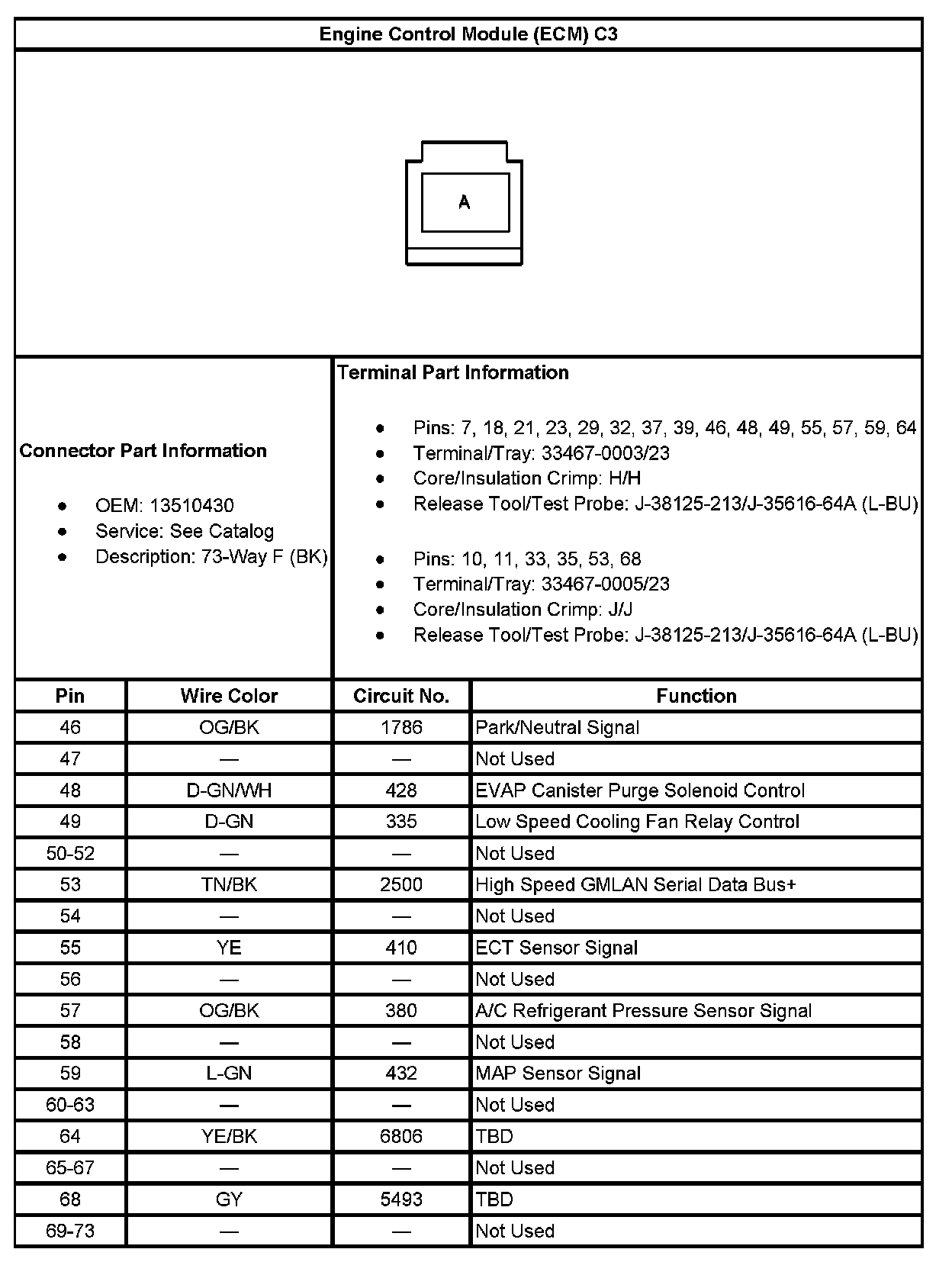

Engine Control Module (ECM) C3 (Part 2):
