Home >> Chevrolet >> 2009 >> Malibu L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

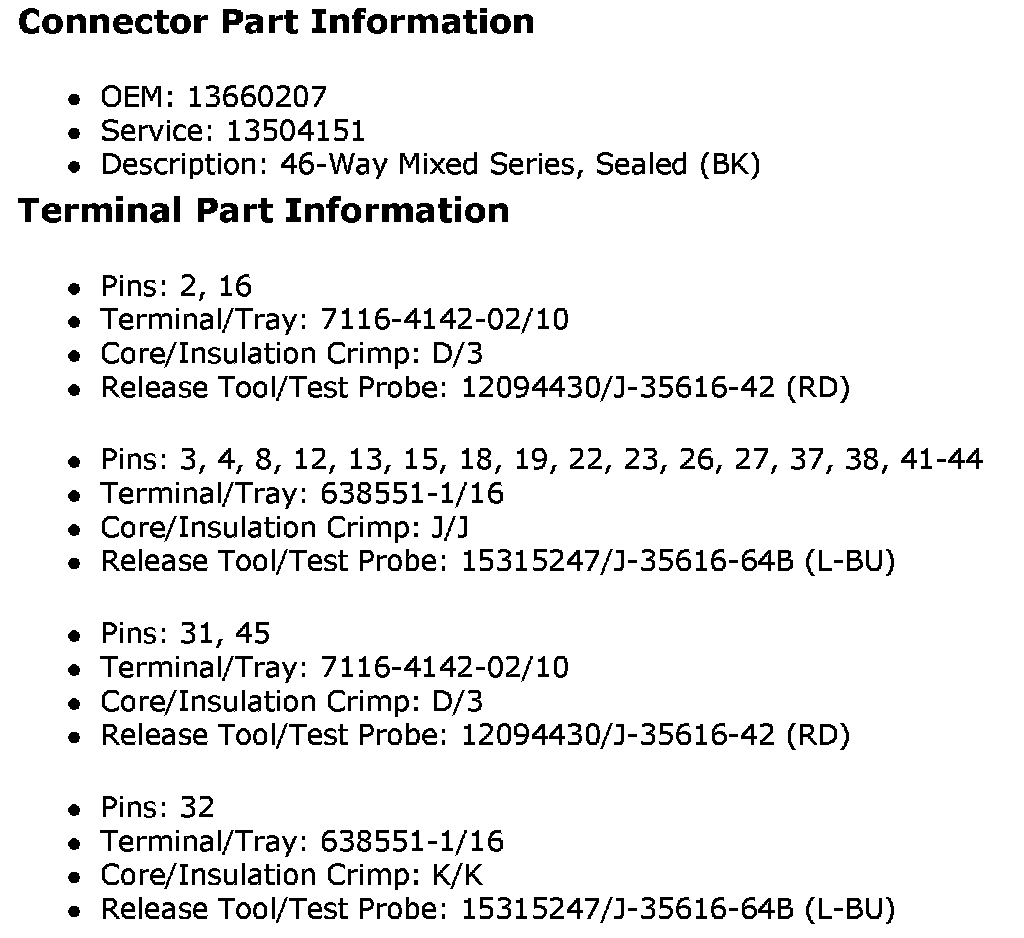

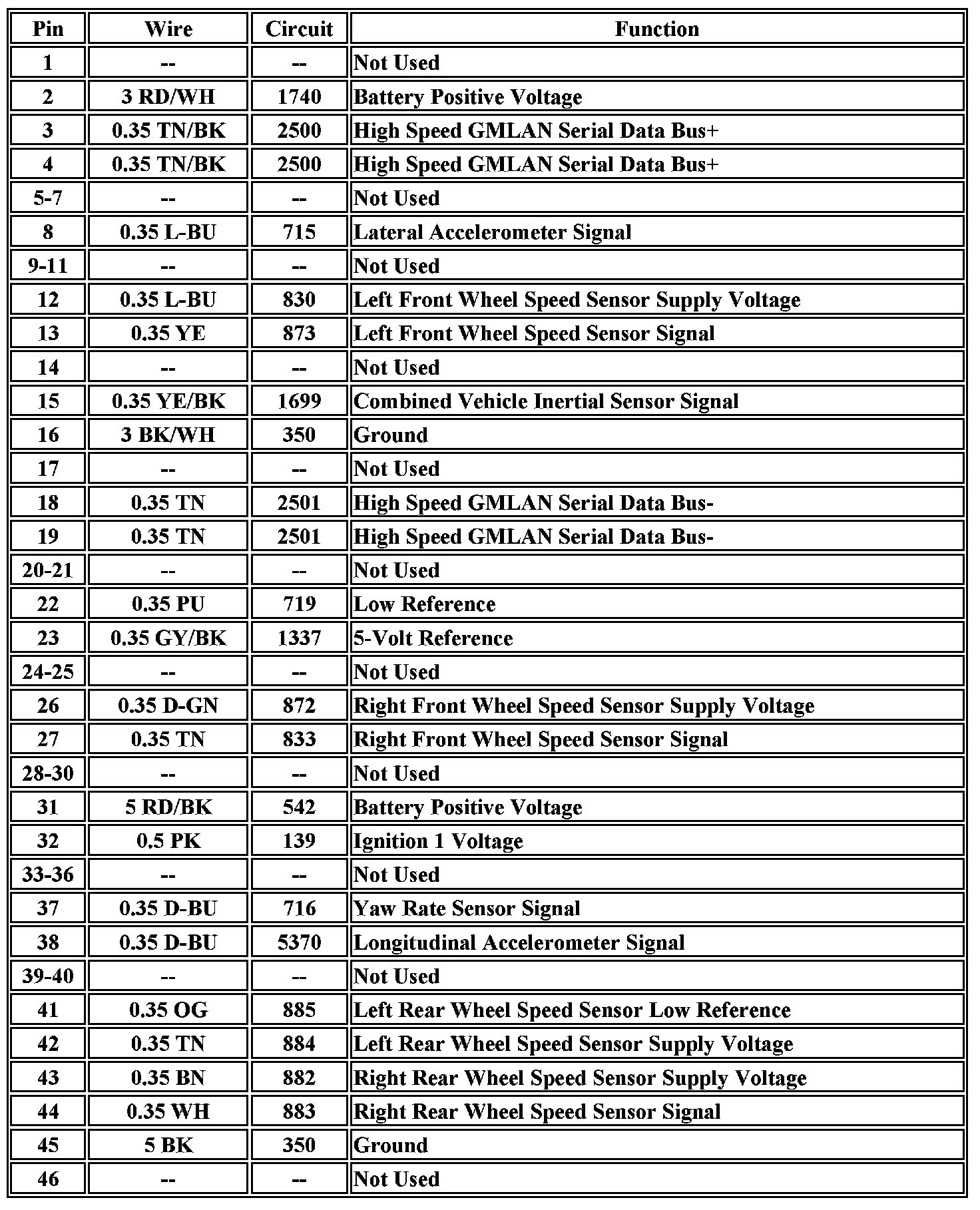

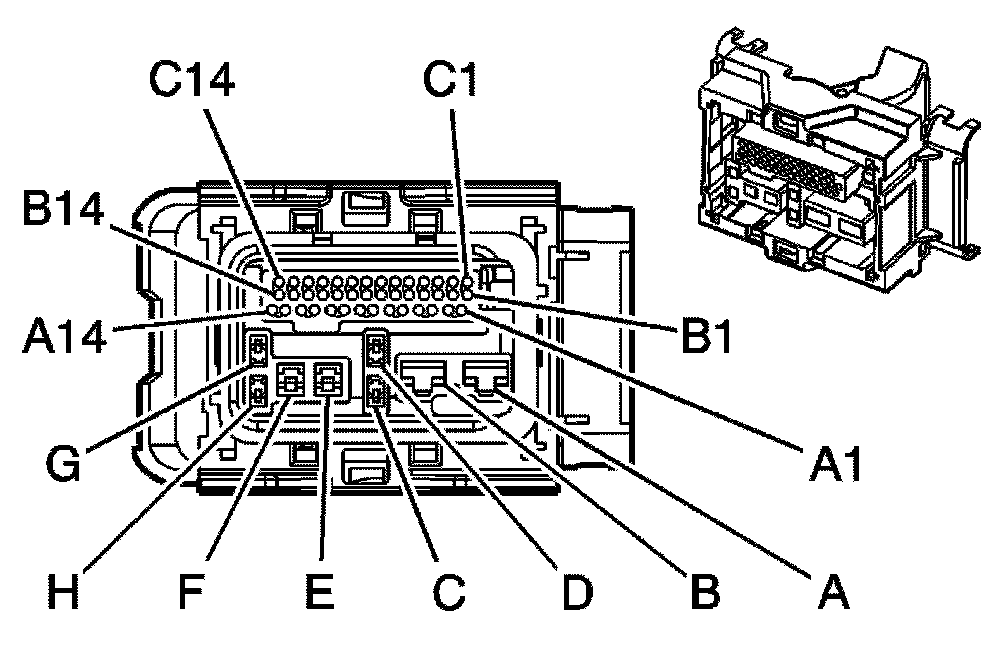

Electronic Brake Control Module (EBCM) (LAT)
