Brake Pressure Switch
Brake Pressure Switch
ESP Brake Pressure Sensor 1:

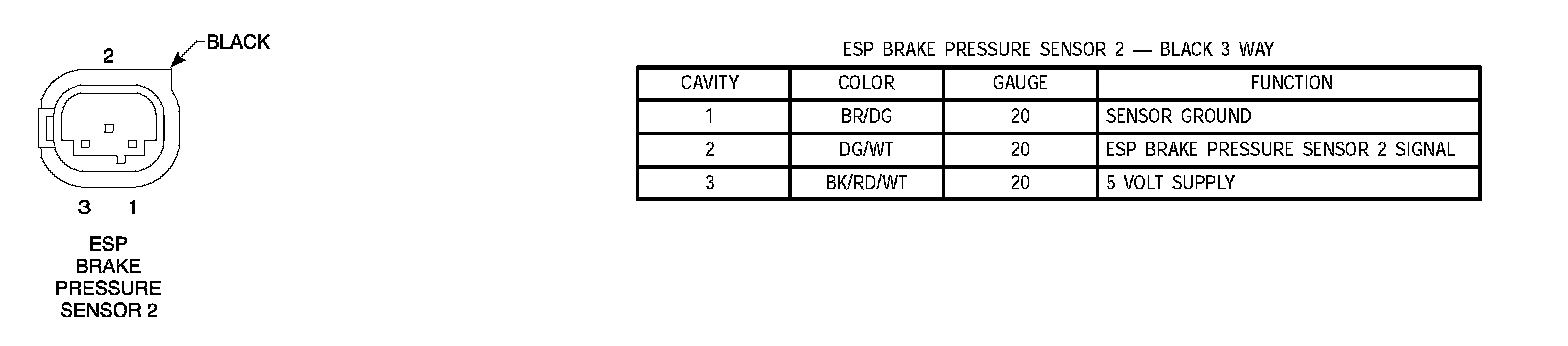

ESP Brake Pressure Sensor 2:
