Home >> Ford >> 1993 >> Mustang V8-302 5.0L HO >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

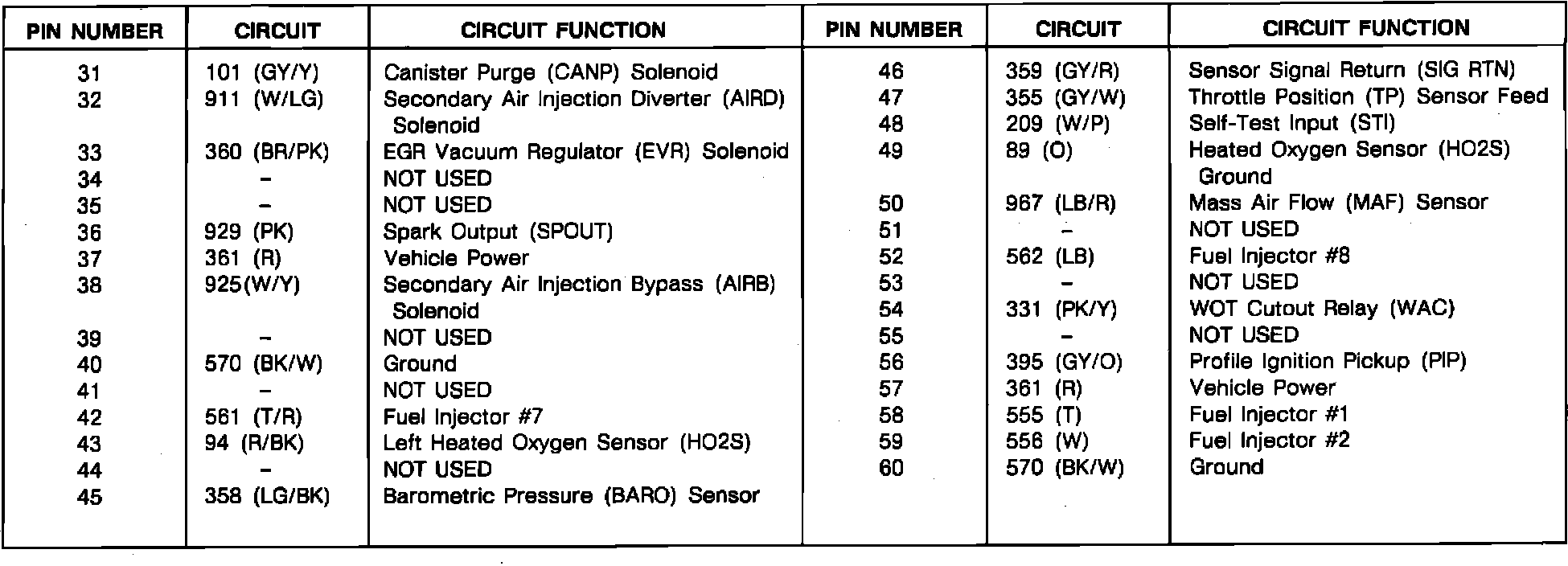

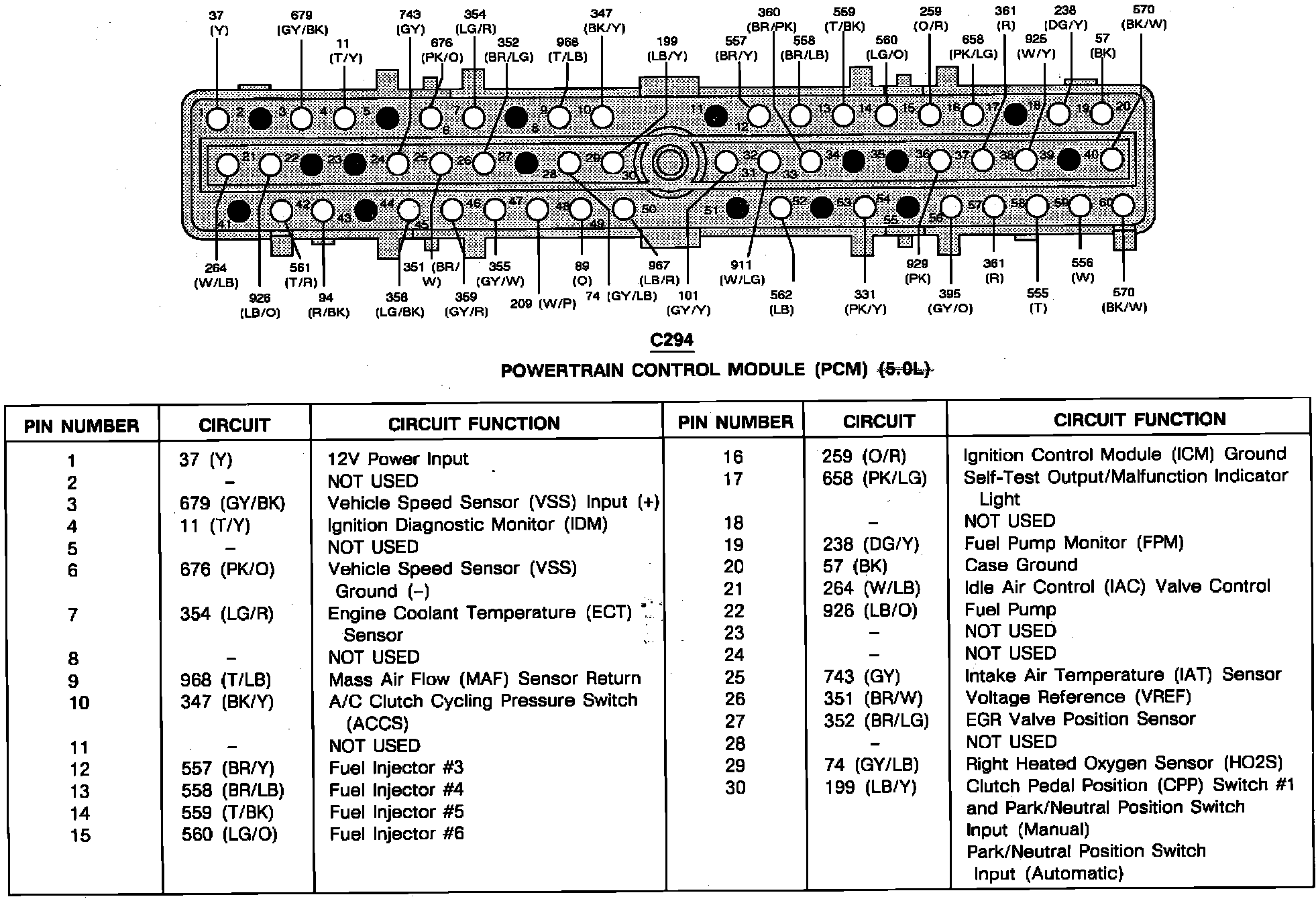

Powertrain Control Module (PCM):



Powertrain Control Module (PCM):
