Home
>>
Ford
>>
1996
>>
Taurus V8-3.4L VIN N SHO
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

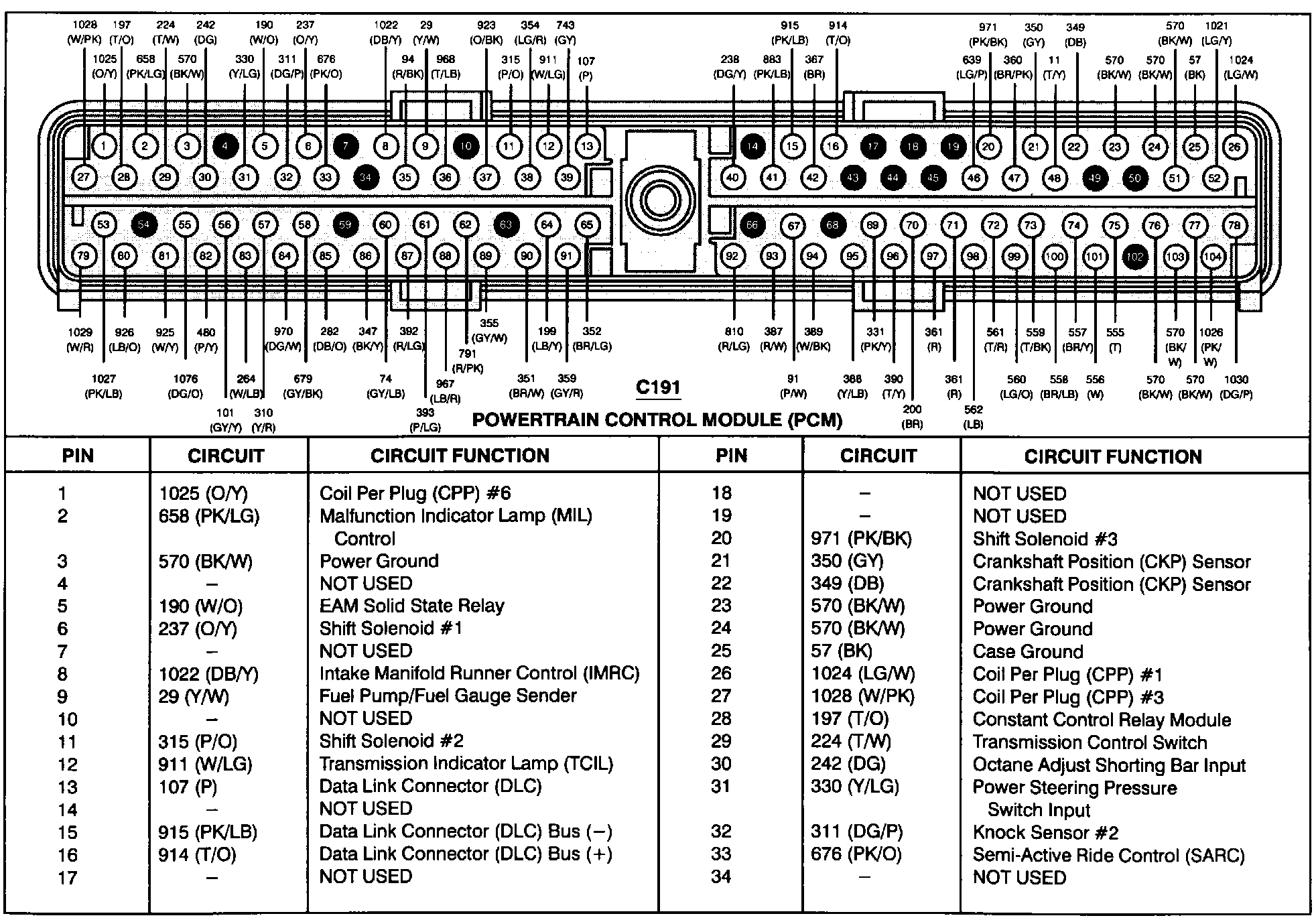

Powertrain Control Module (Part 1 Of 3):

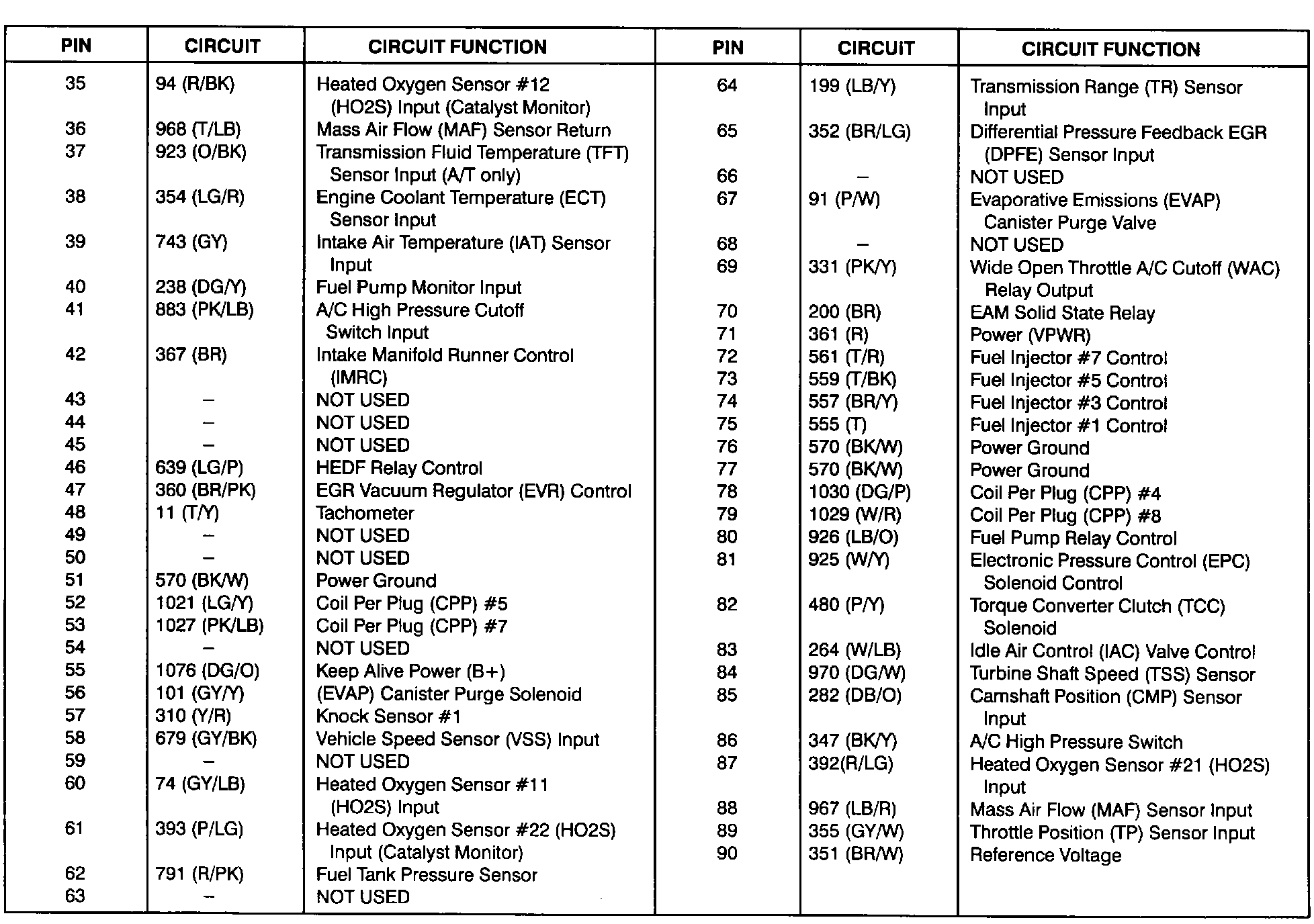

Powertrain Control Module (Part 2 Of 3):

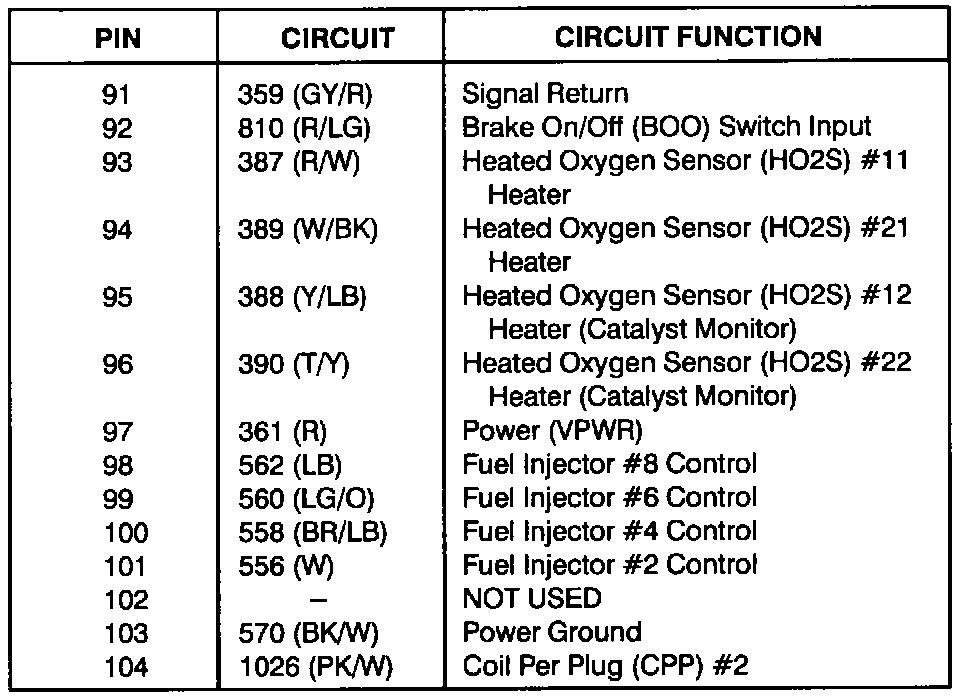

Powertrain Control Module (Part 3 Of 3):
