Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

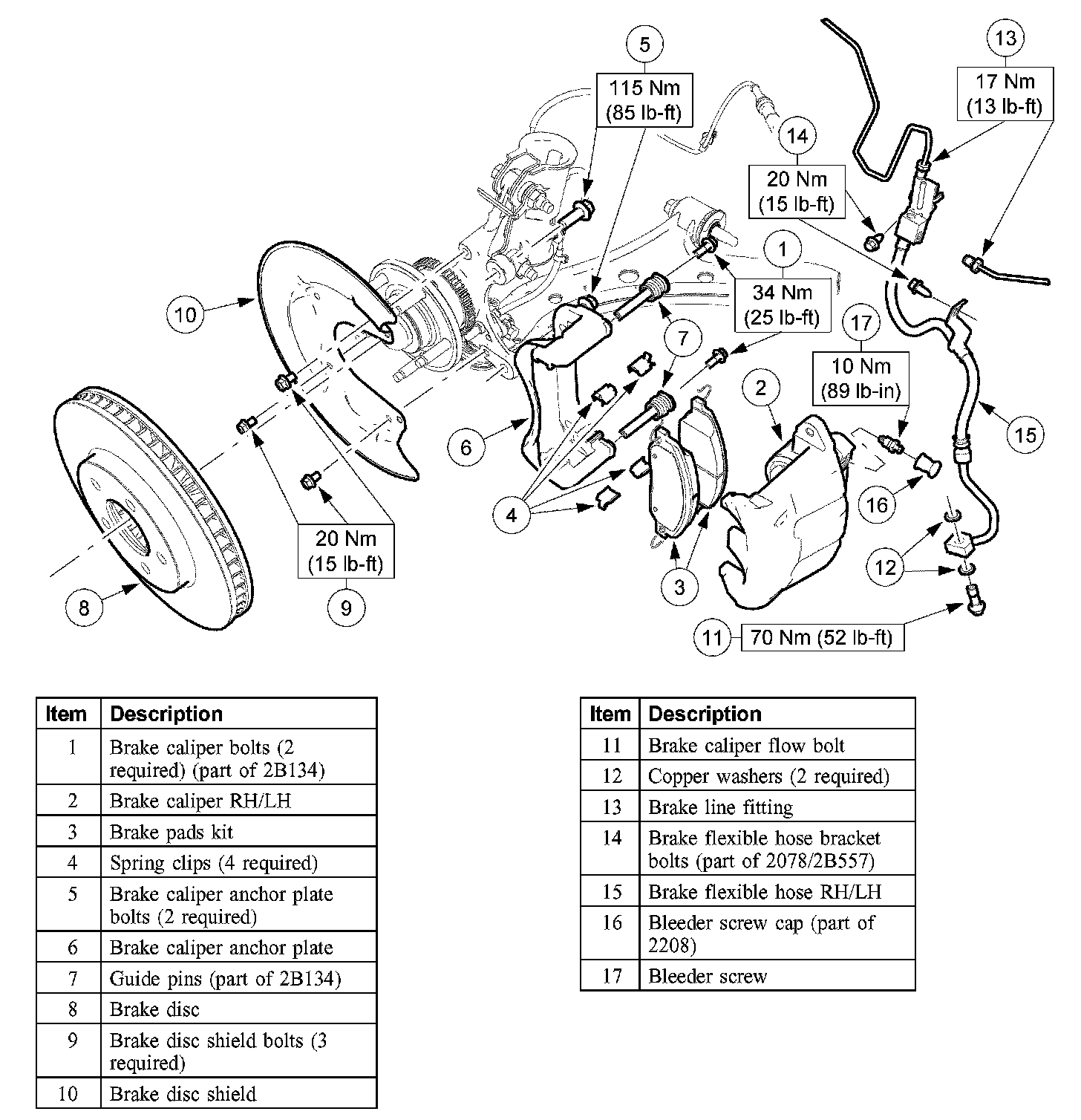

Disc Brake System Exploded View
