Steering Wheel: Service and Repair

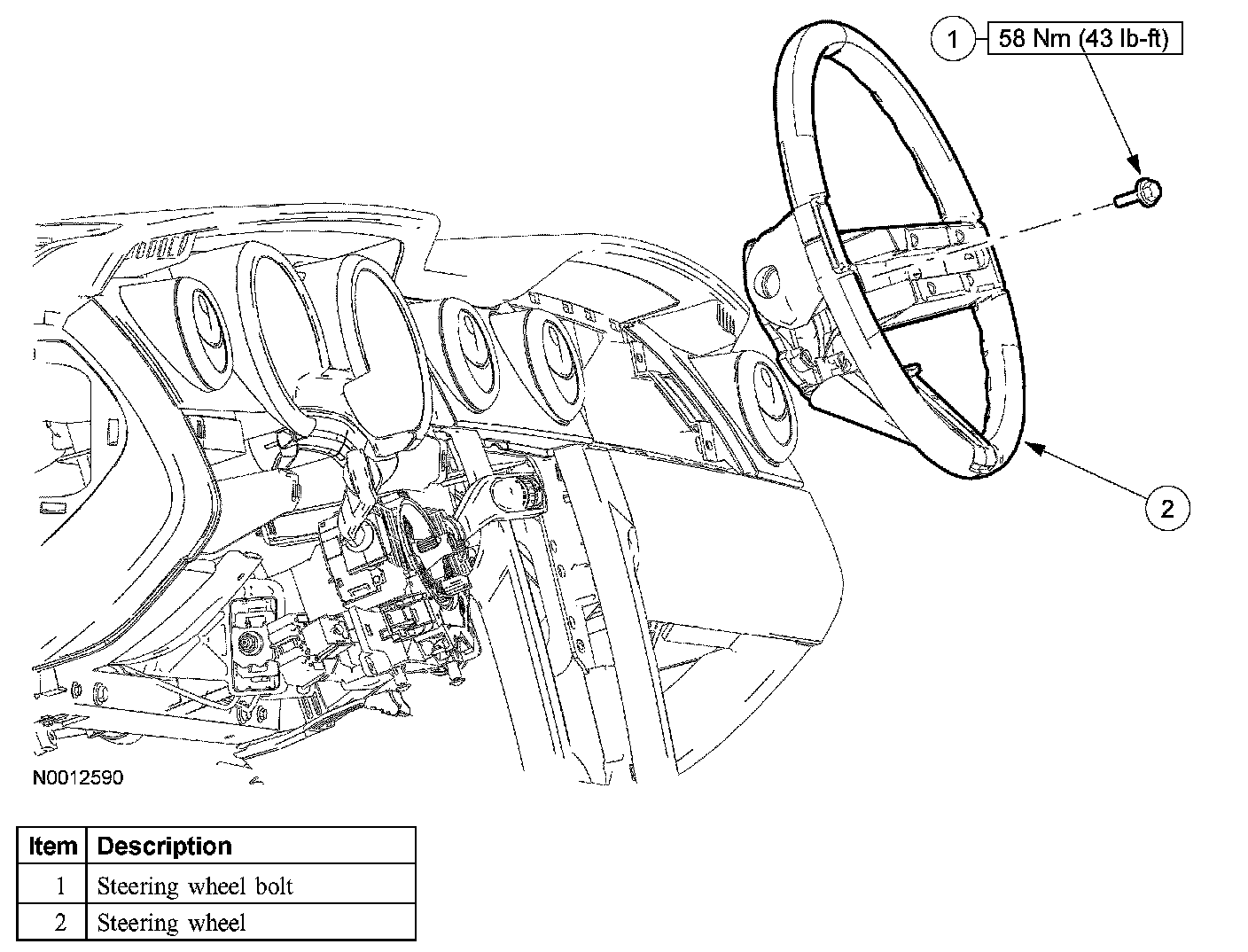

Steering Wheel





Removal and Installation
1. Place the steering wheel in the straight-ahead position and turn the ignition switch to the OFF position.
2. Remove the driver air bag module.
3. Remove and discard the steering wheel bolt.
^ To install, tighten to 58 Nm (43 ft. lbs.).

4. Remove the steering wheel.
^ Route the connectors for the clockspring through the steering wheel.

5. To install, reverse the removal procedure.
