Home >> Ford >> 2005 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Rear Electronic Module (REM)

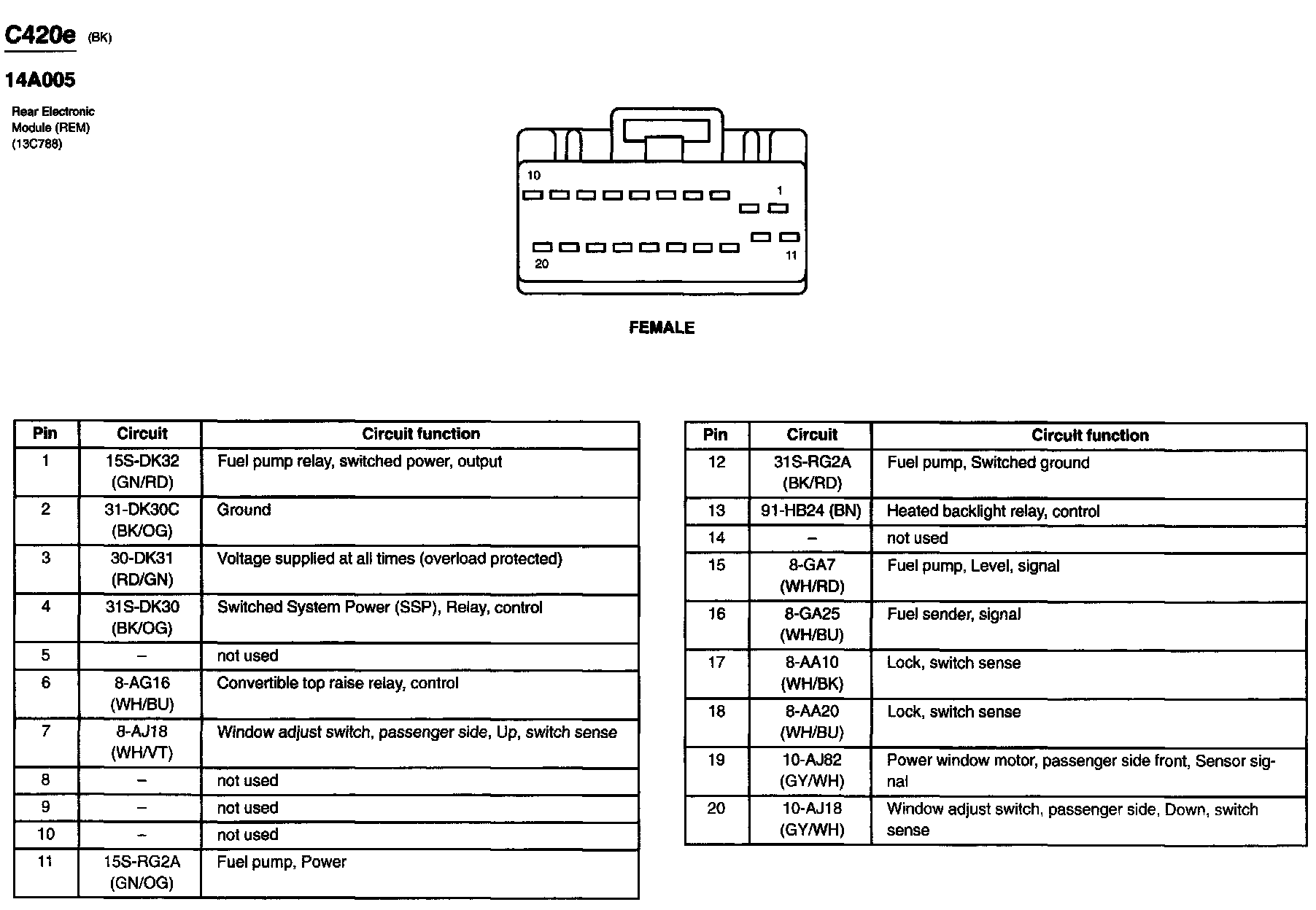

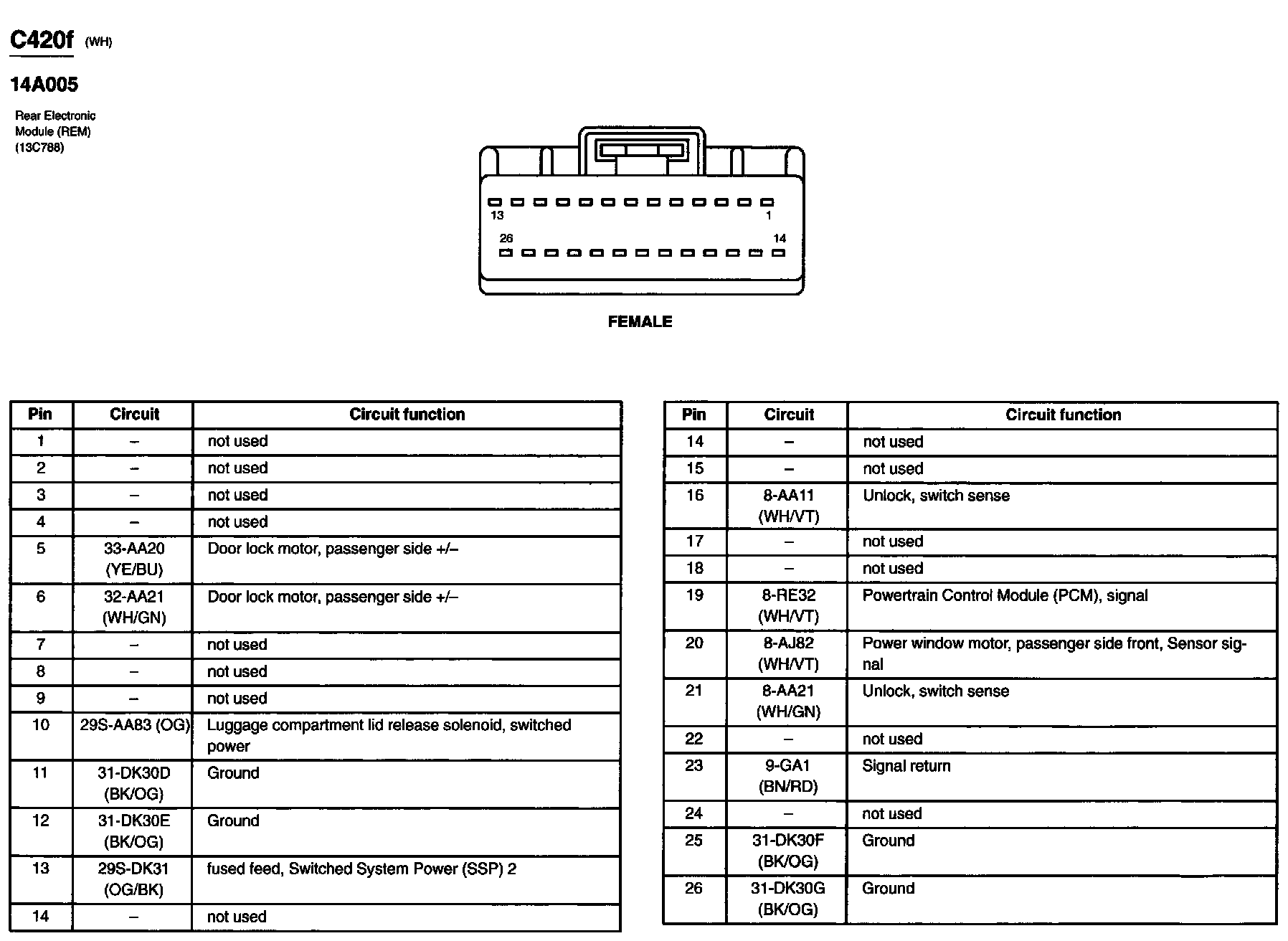

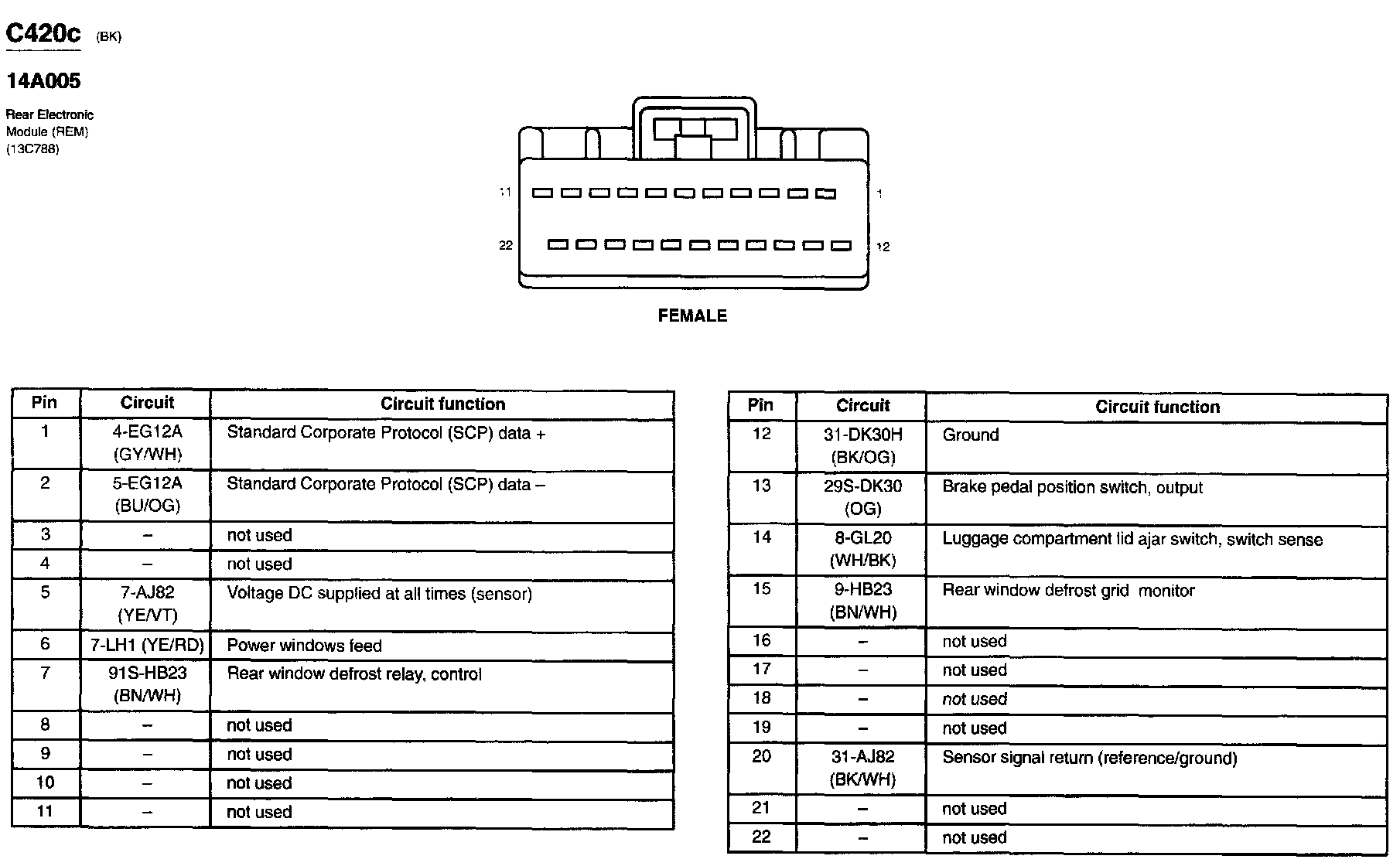

Rear Electronic Module (REM)
