Home >> Ford >> 2005 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> EGR Control Module

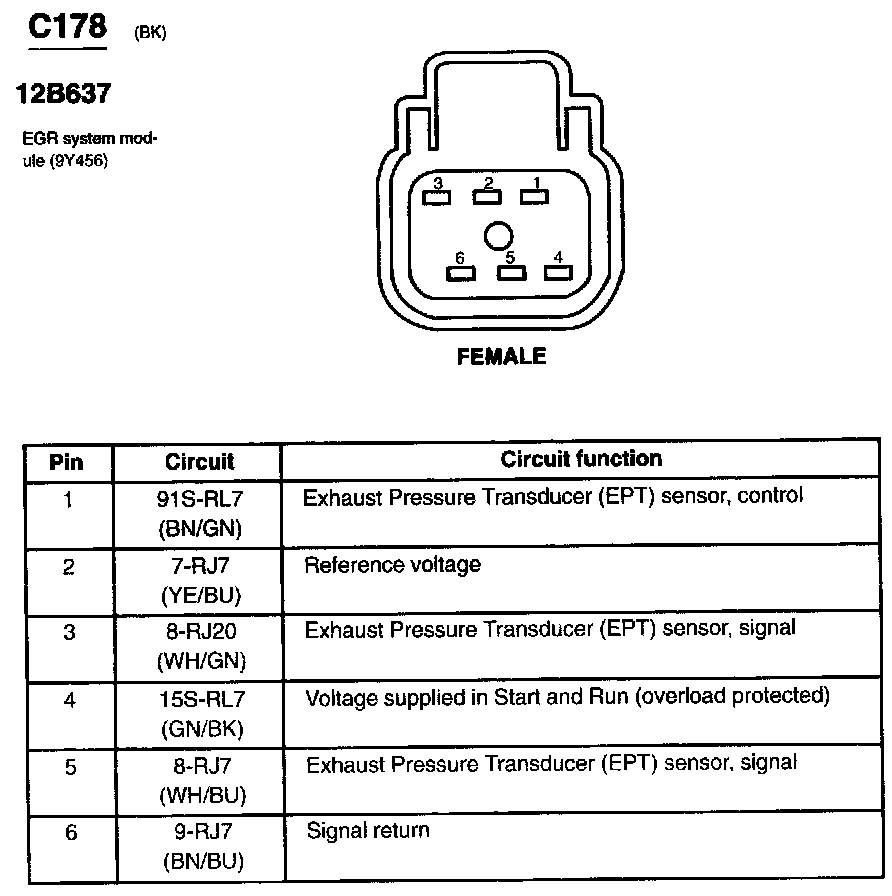

EGR Control Module
