Ford
>>
2006
>>
Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

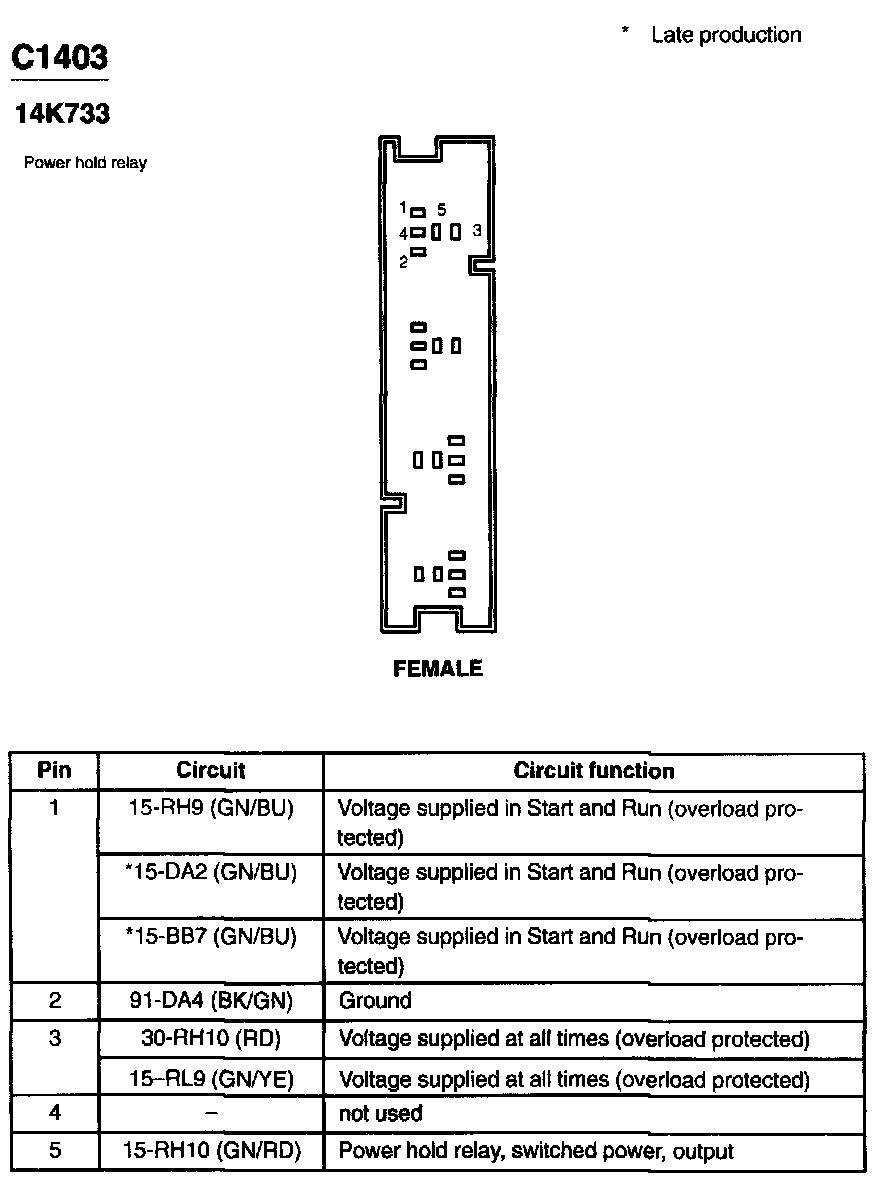

Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)
C1403:
