Test F: The Generator Is Noisy

PINPOINT TEST F: THE GENERATOR IS NOISY

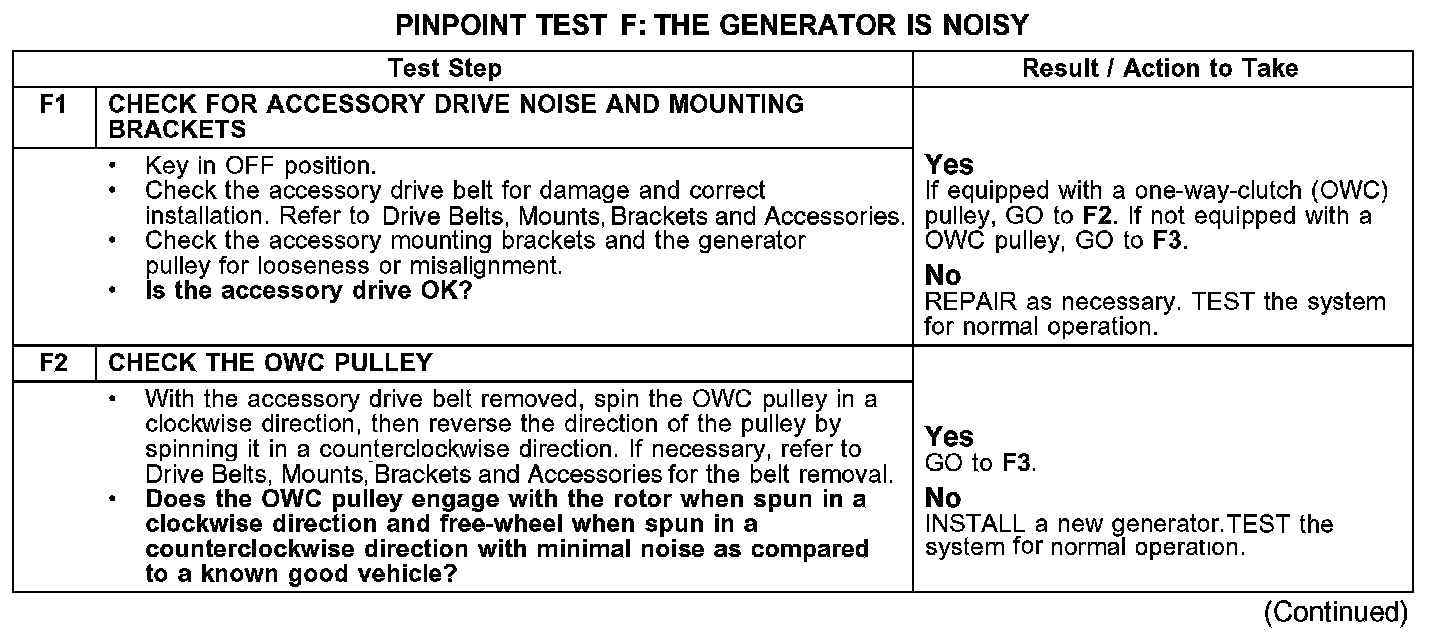

F1-F2:

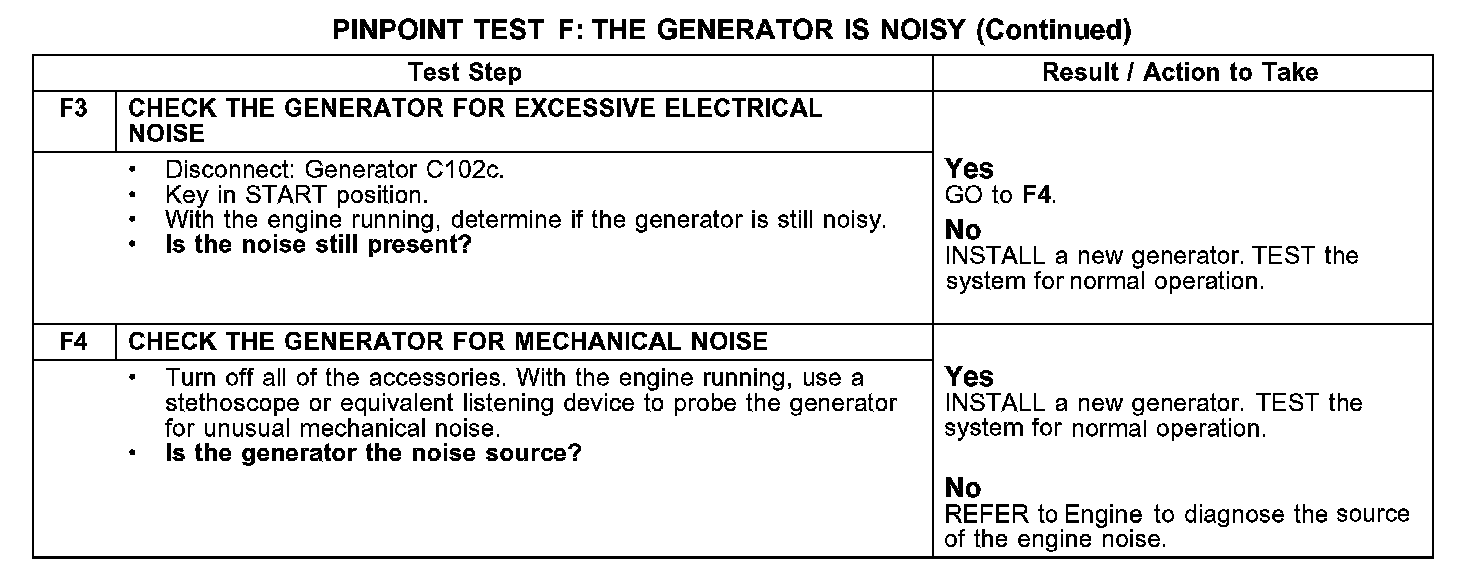

F3-F4:






Normal Operation
The generator is belt-driven by the engine accessory drive system.

Possible Causes
- loose bolts/brackets
- drive belt
- generator/pulley
