Home >> Ford >> 2007 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Throttle Control Module

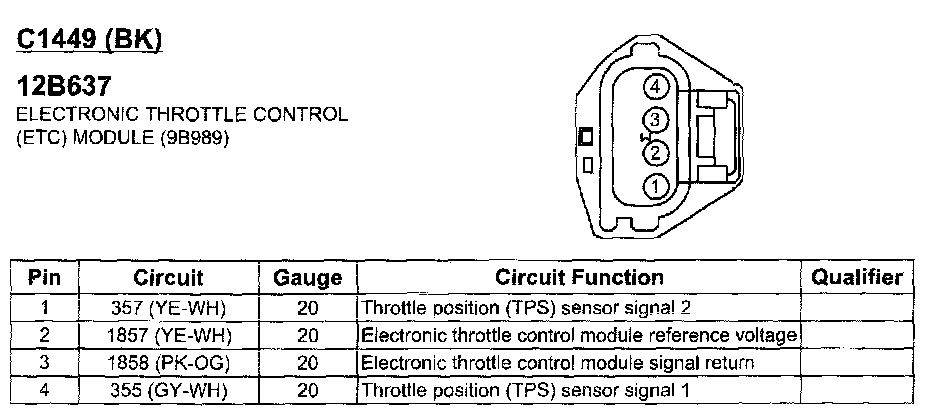

Electronic Throttle Control Module

C1449:
