Input Carrier Inspection

Input Carrier Inspection





Important: Check end play on each pinion. Clearance is the same for 4 or 5 pinion design.

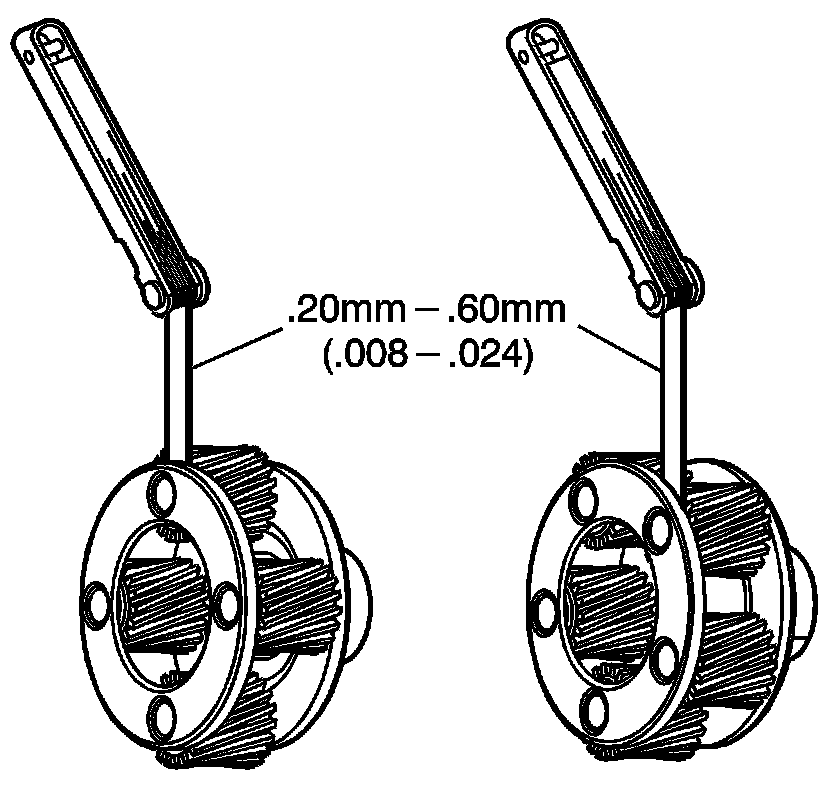

1. Check the input carrier pinion end play. The end play must not exceed 0.61 mm (0.024 in).
2. Inspect the input carrier for pinion gear damage, proper pin stake and keystoned pinion gears. Pinions must rotate freely.
