Home >> Honda >> 2004 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector

Multiple Junction Connector

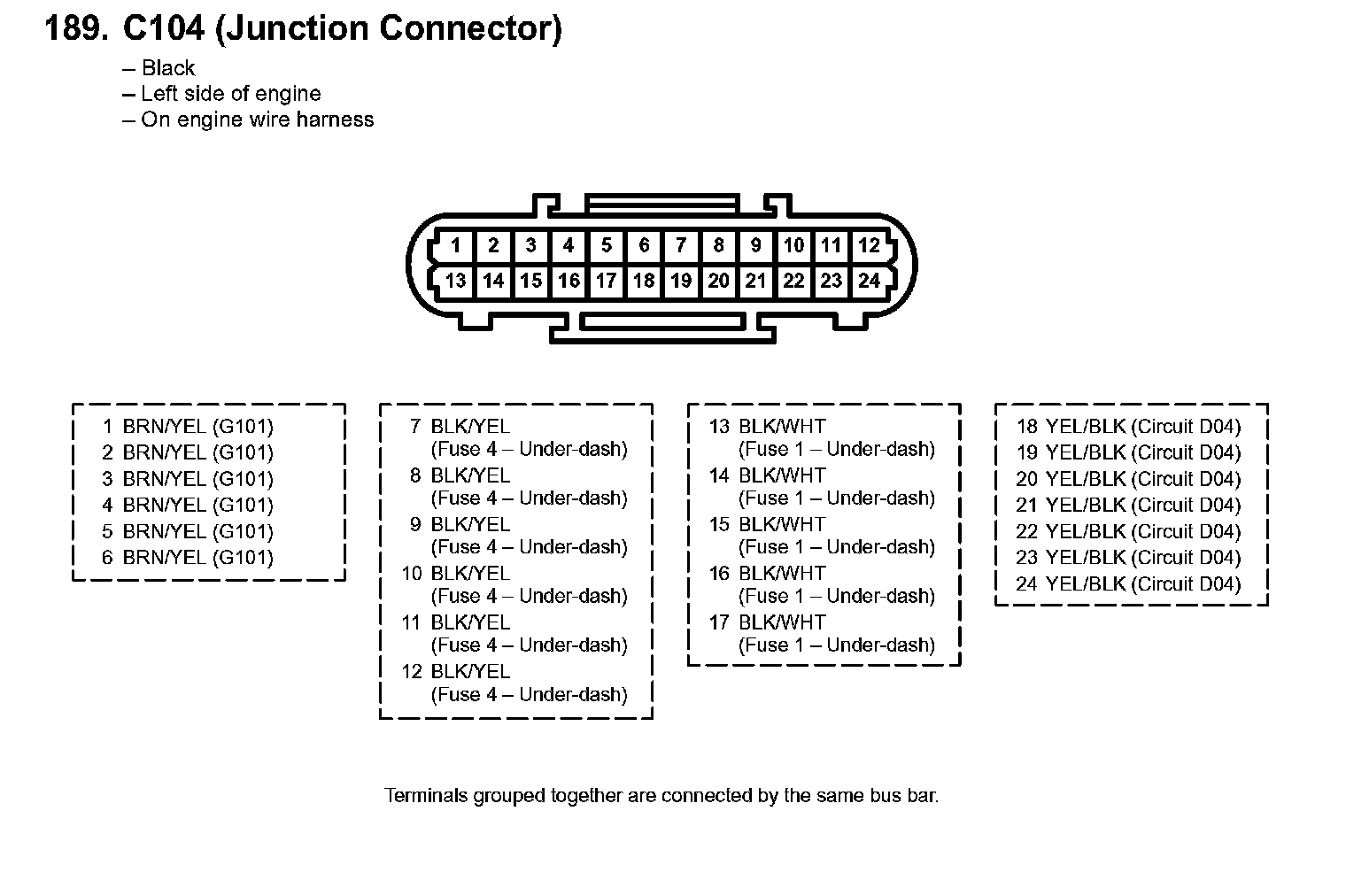

189. C104 (Junction Connector):
