Home
>>
Honda
>>
2004
>>
Civic Si L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Locations
Data Link Connector: Locations

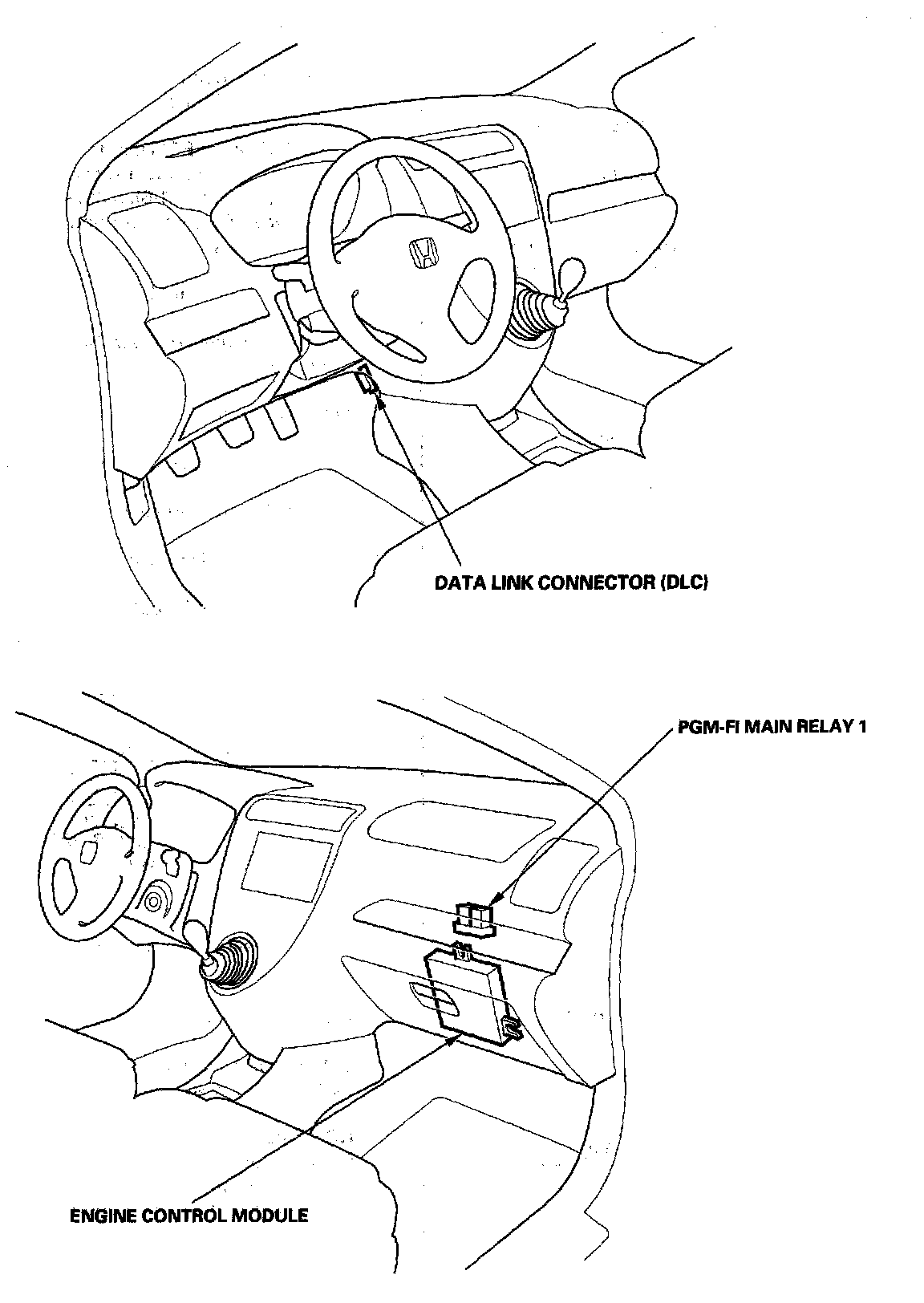

PGM-FI System - Component Location Index:

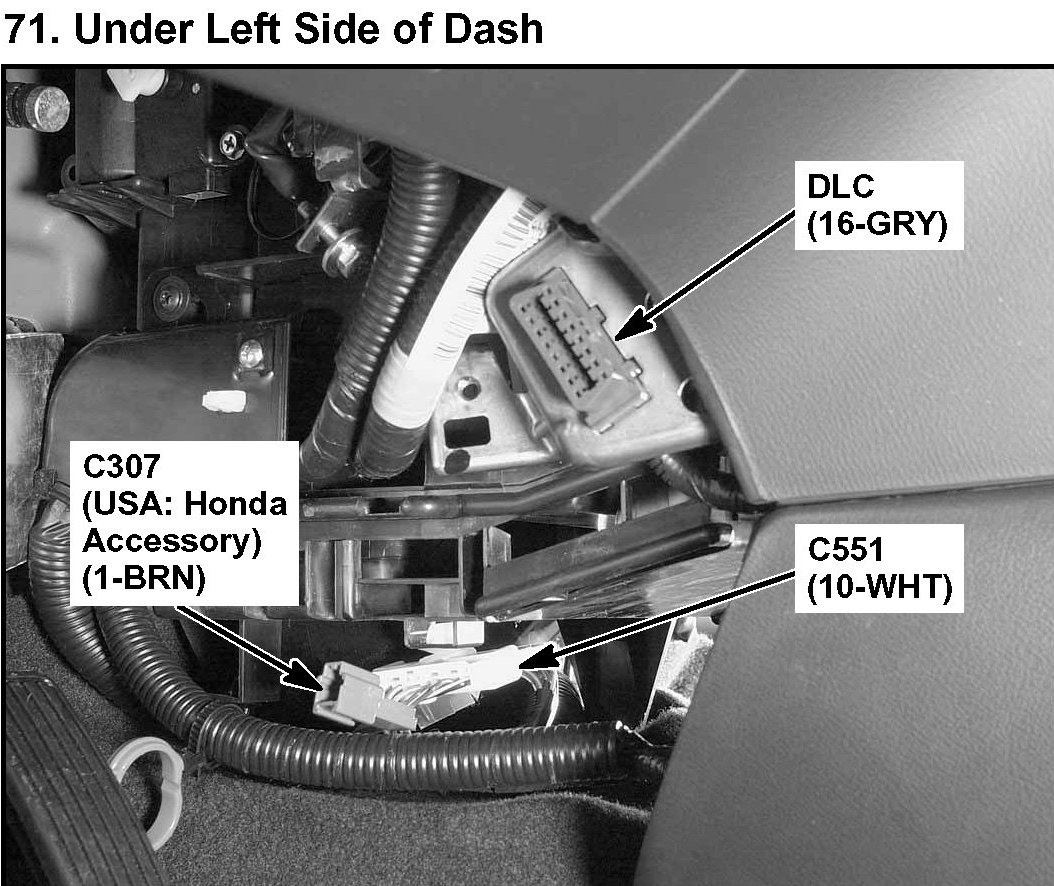

71. Under Left Side of Dash:

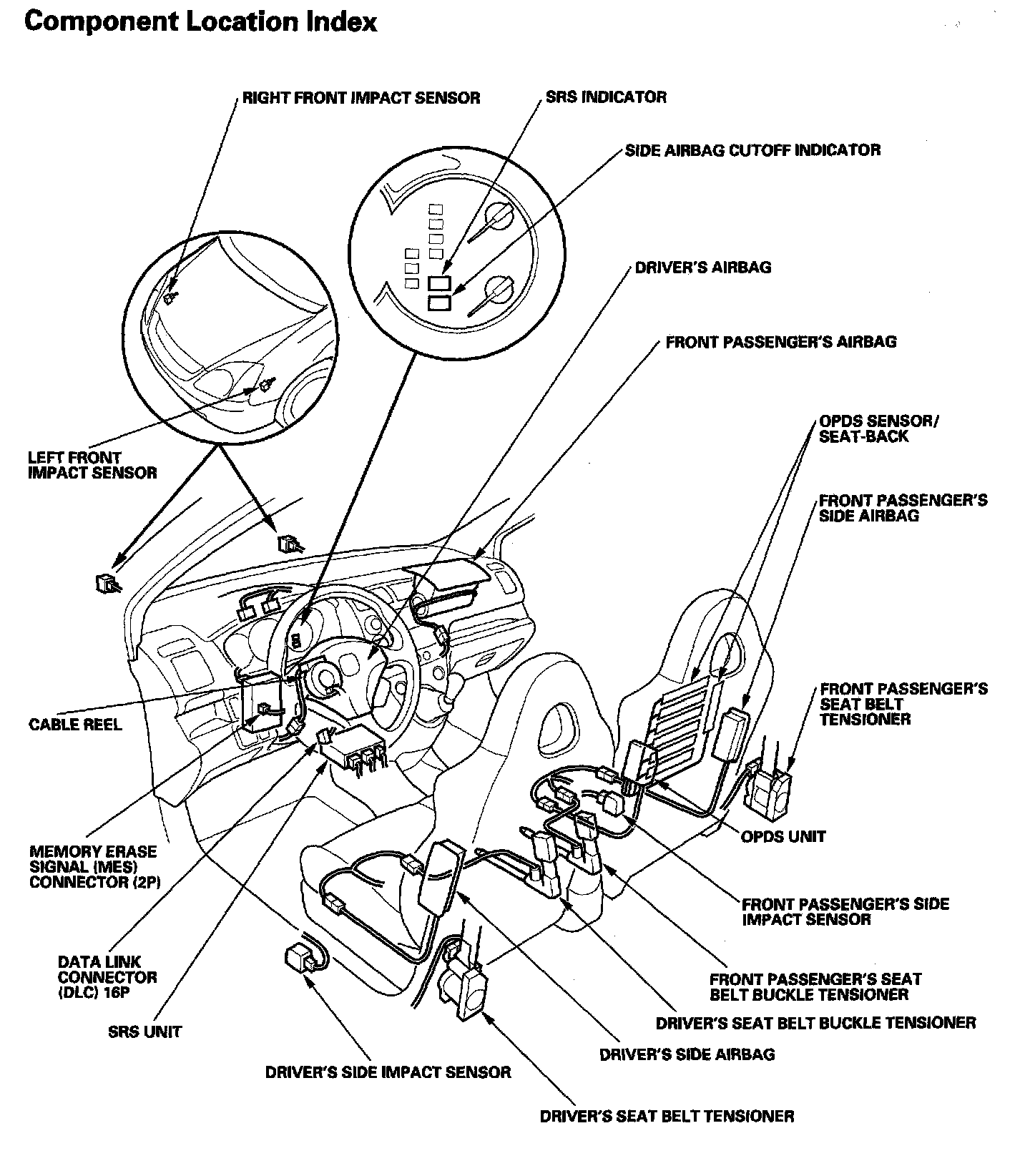

SRS - Component Location Index:
