PCM Inputs and Outputs

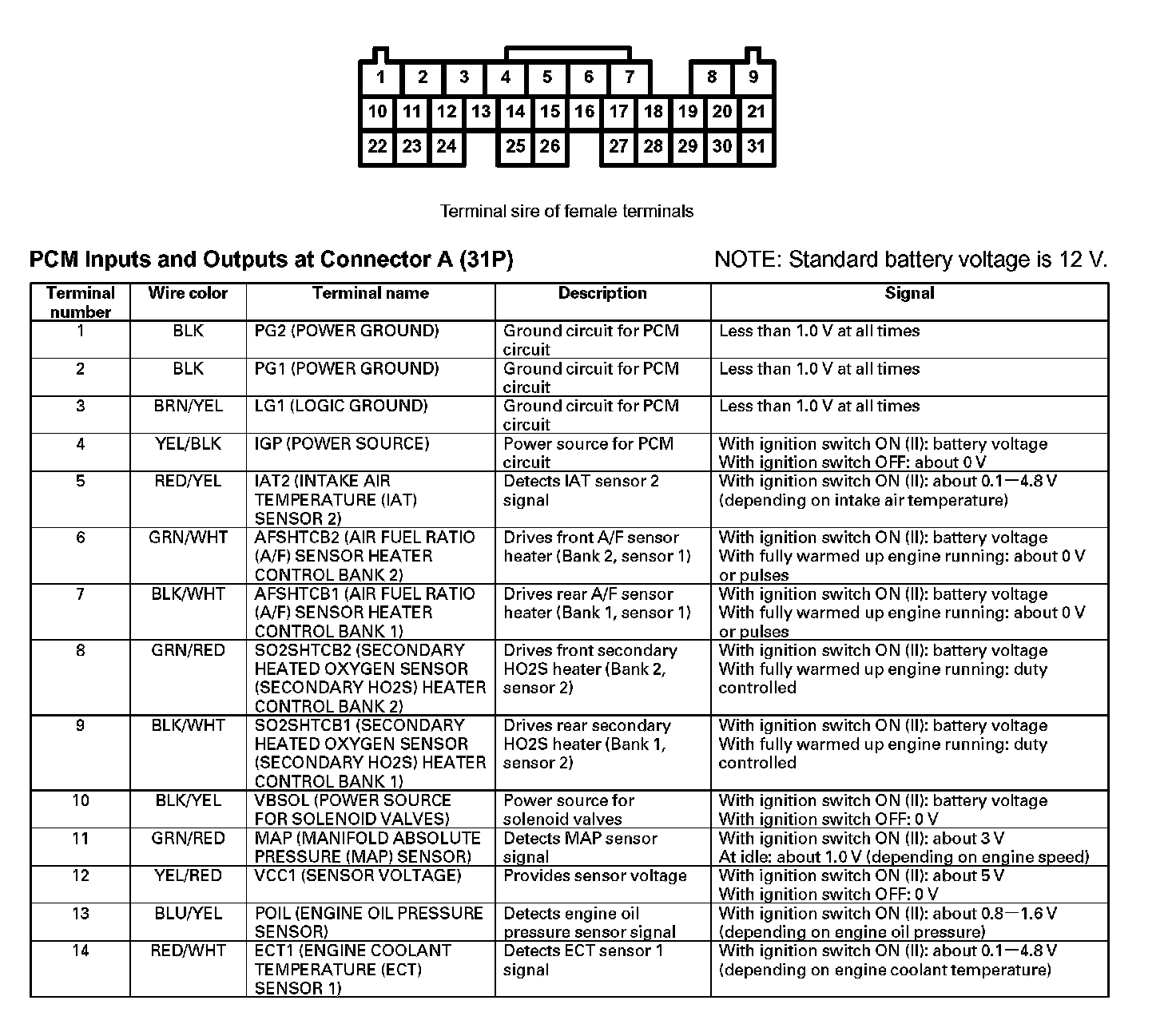

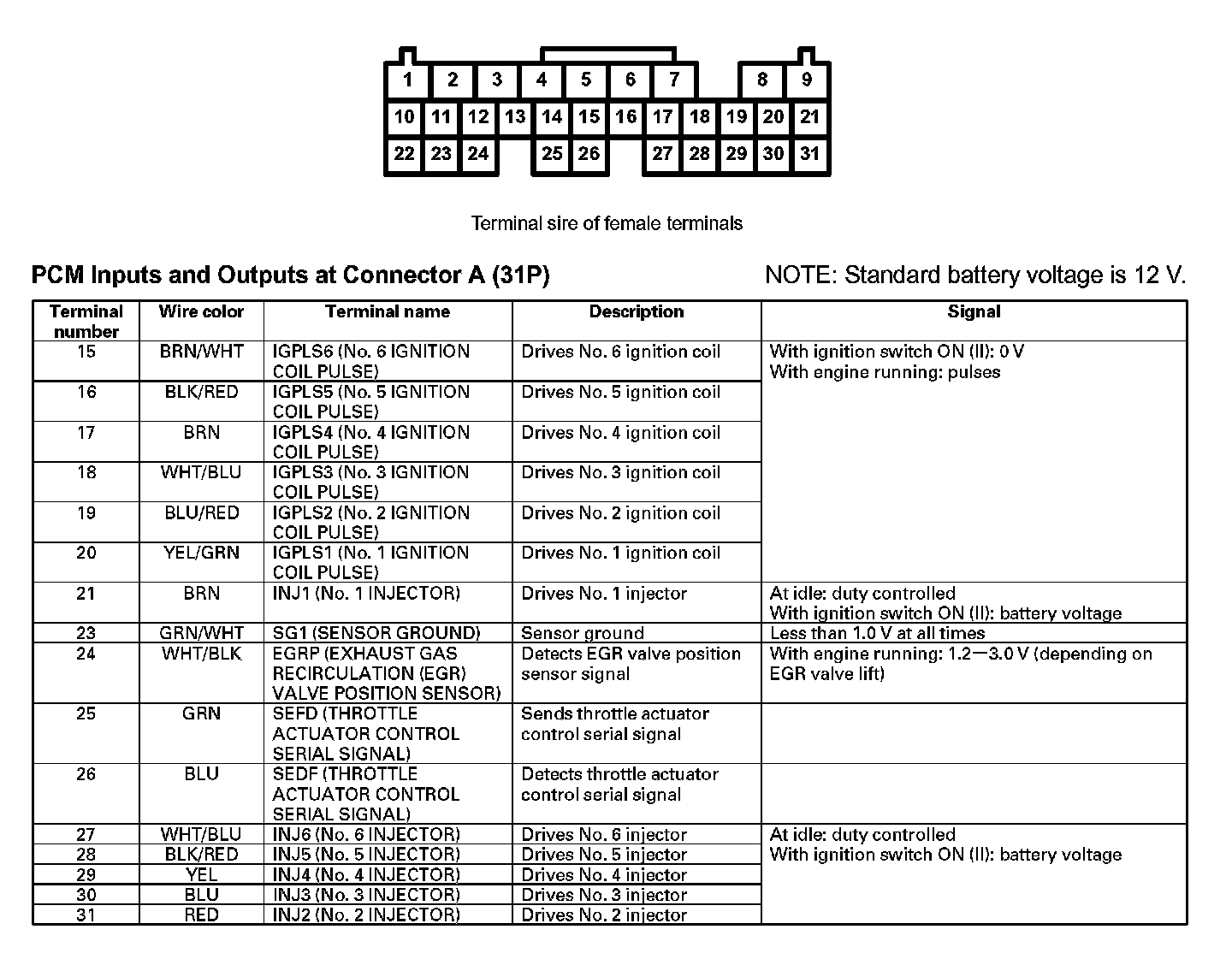

PCM Inputs And Outputs At Connector A (31P) Part 1:



PCM Inputs And Outputs At Connector A (31P) Part 2:

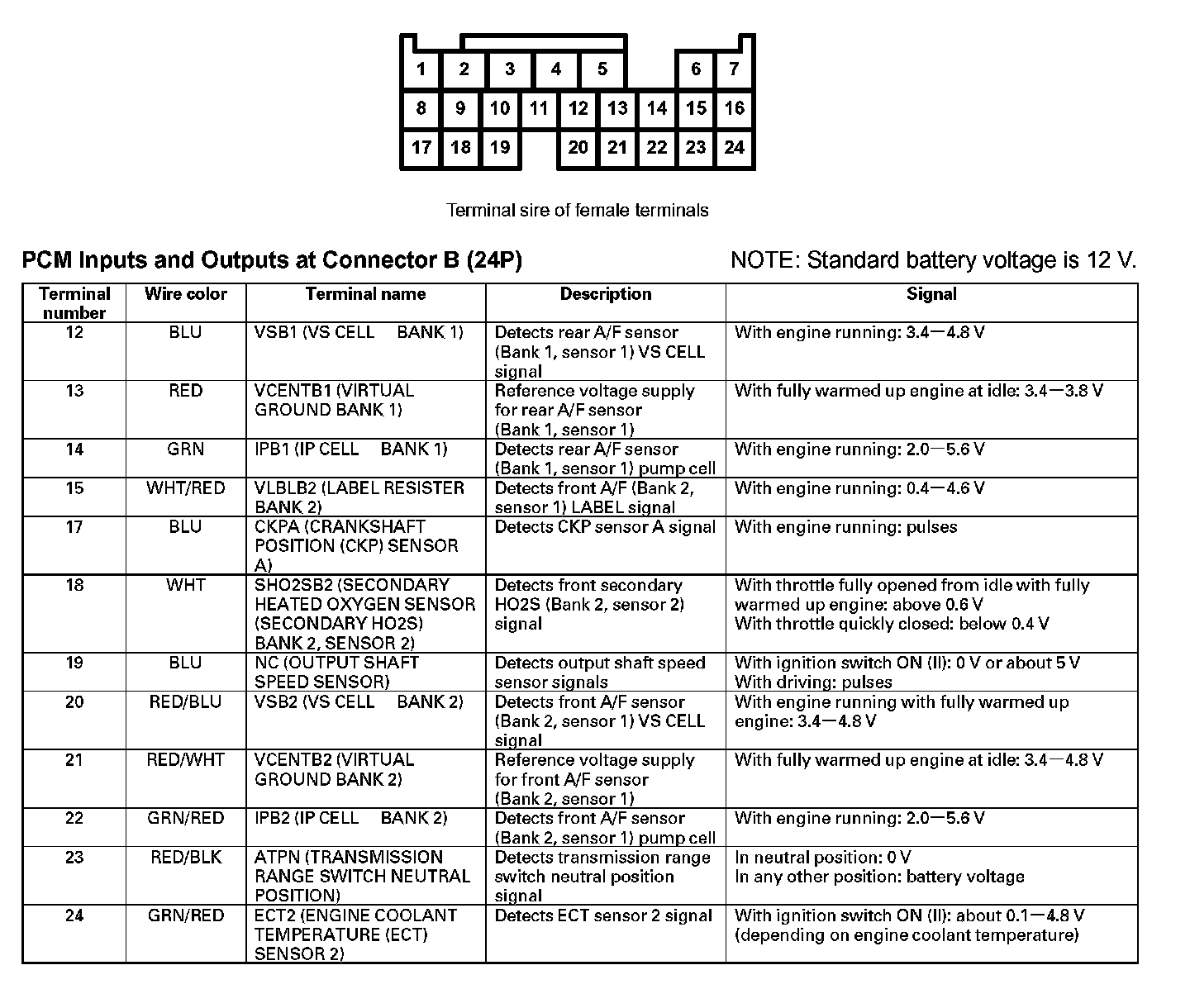

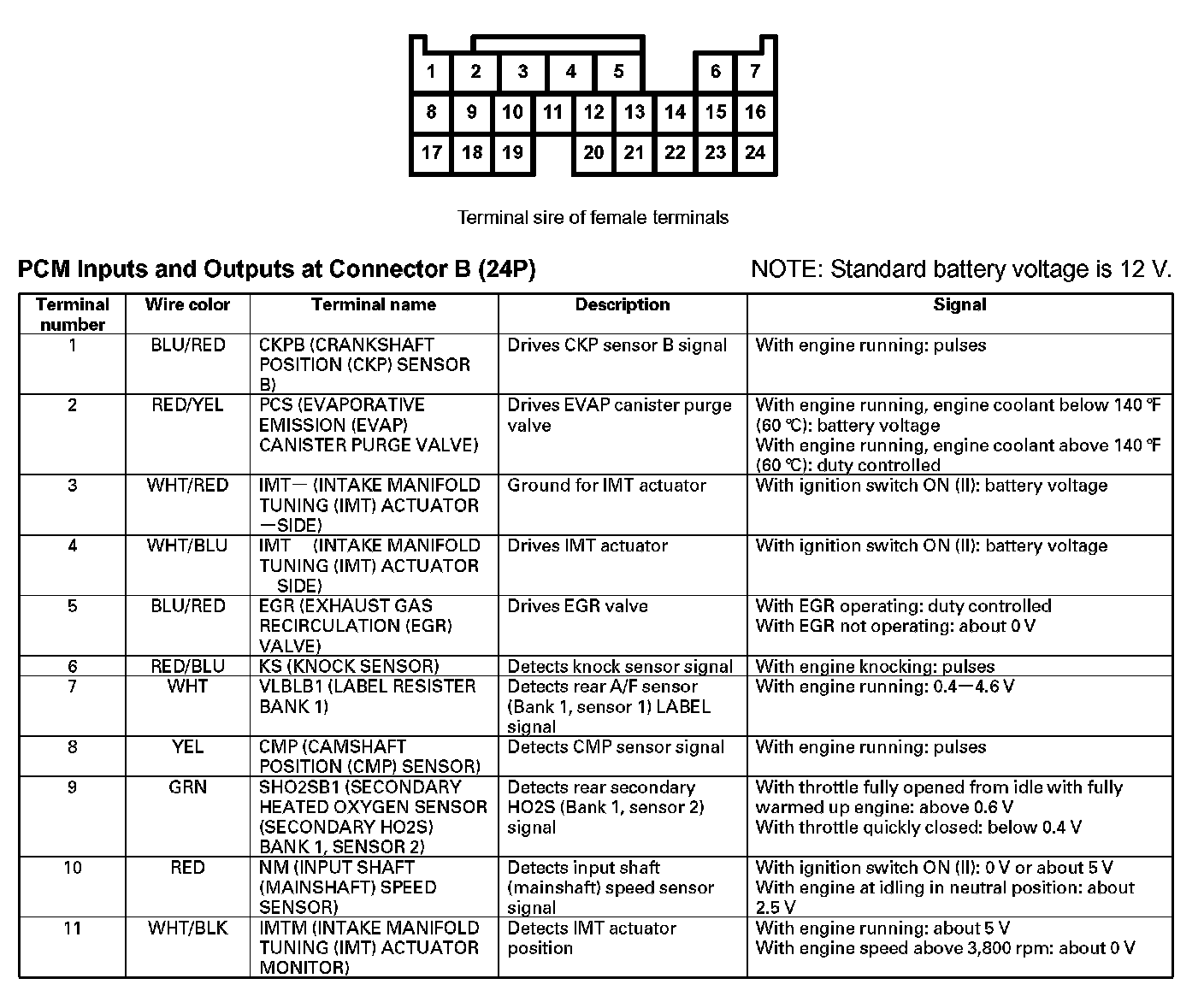

PCM Inputs And Outputs At Connector B (24P) Part 1:



PCM Inputs And Outputs At Connector B (24P) Part 2:

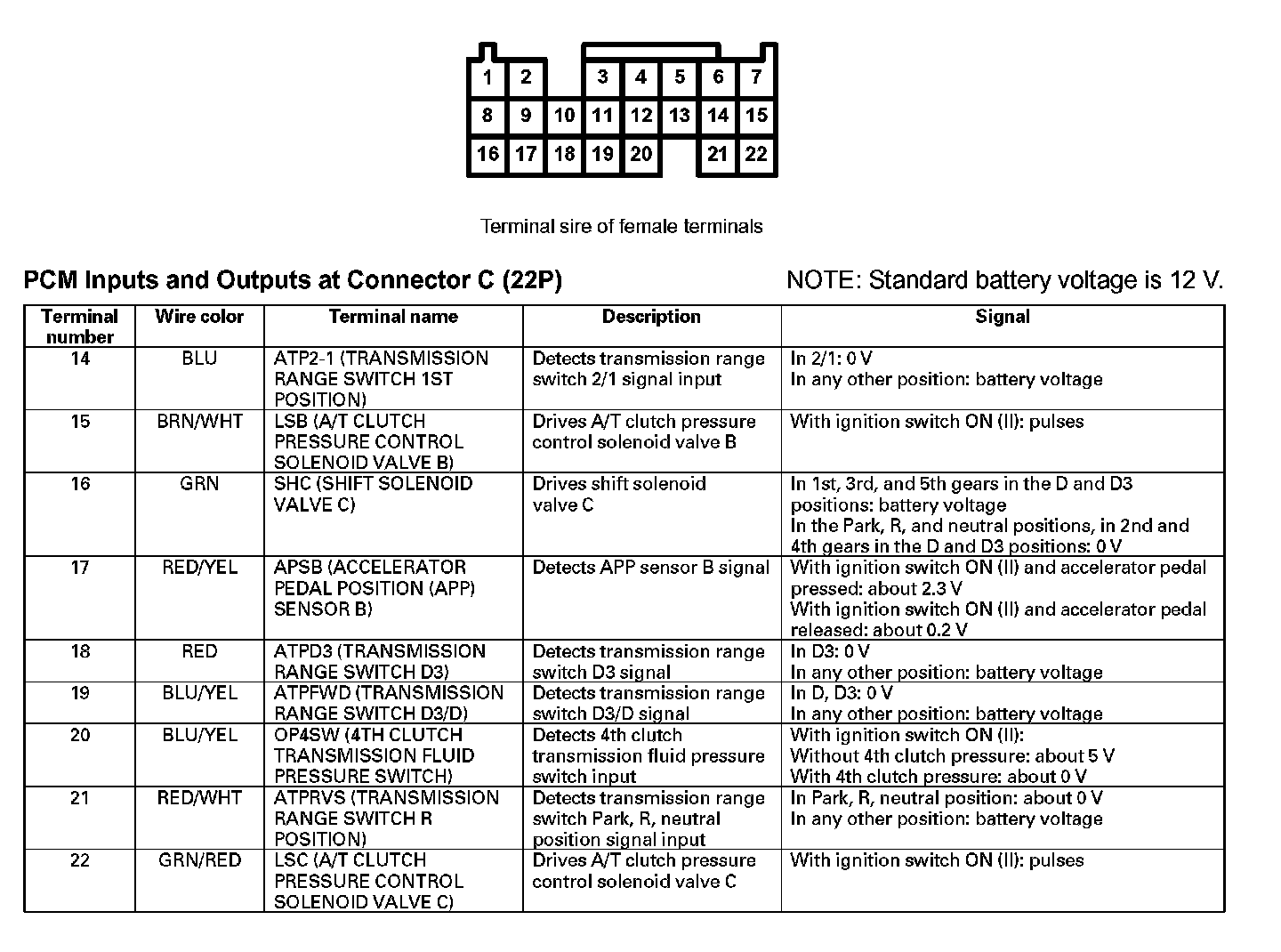

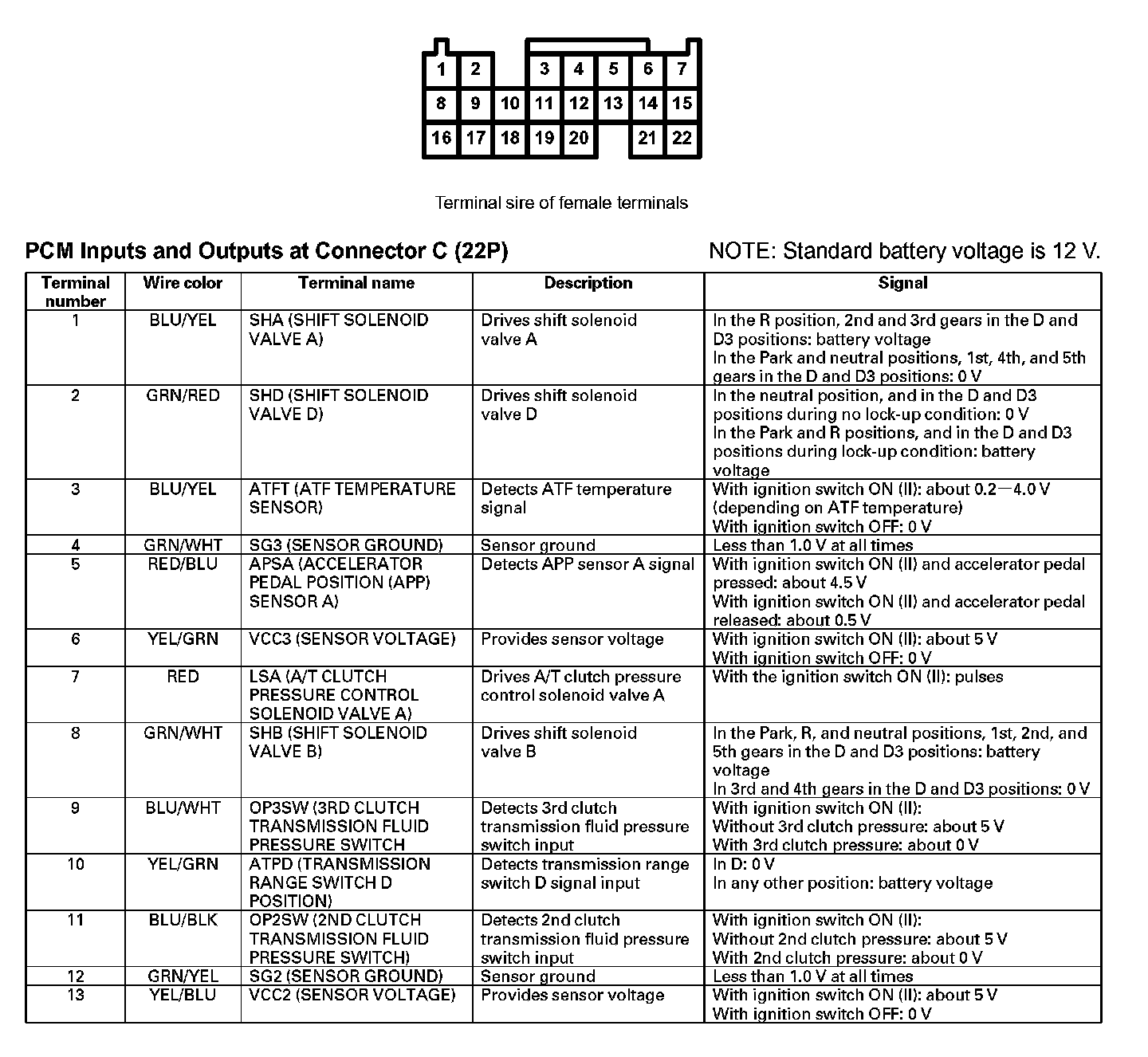

PCM Inputs And Outputs At Connector C (22P) Part 1:



PCM Inputs And Outputs At Connector C (22P) Part 2:

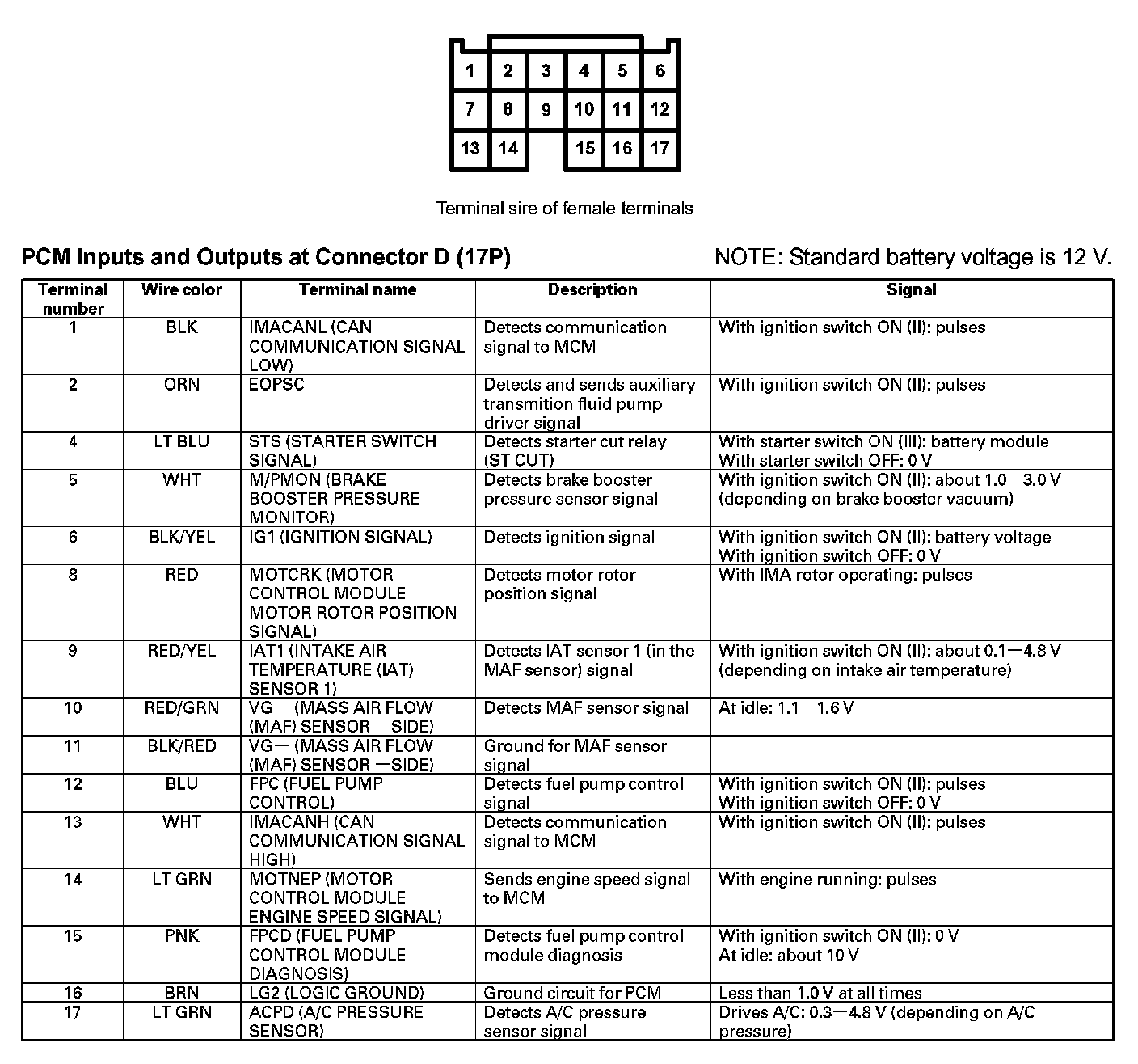

PCM Inputs And Outputs At Connector D (17P):

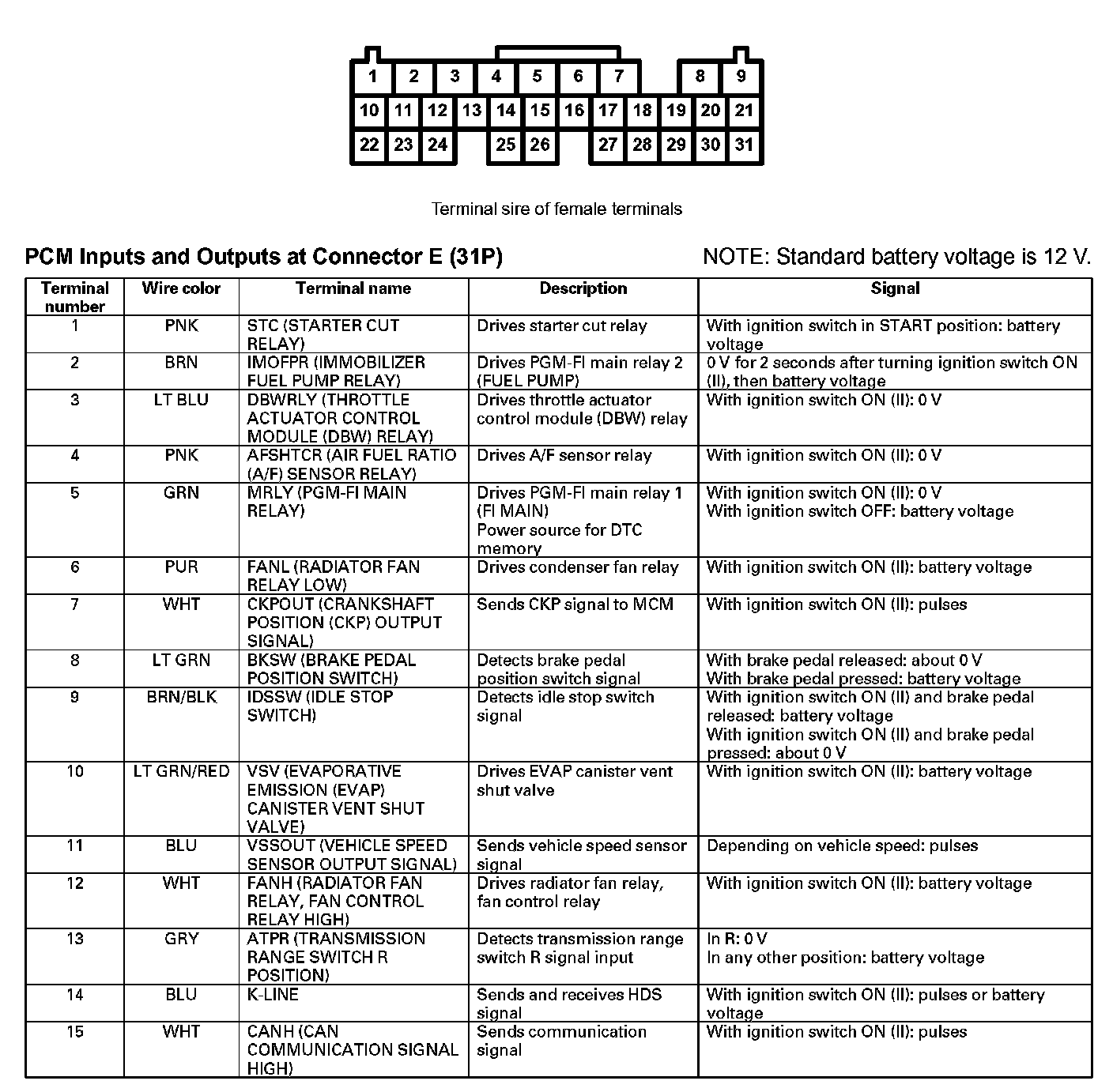

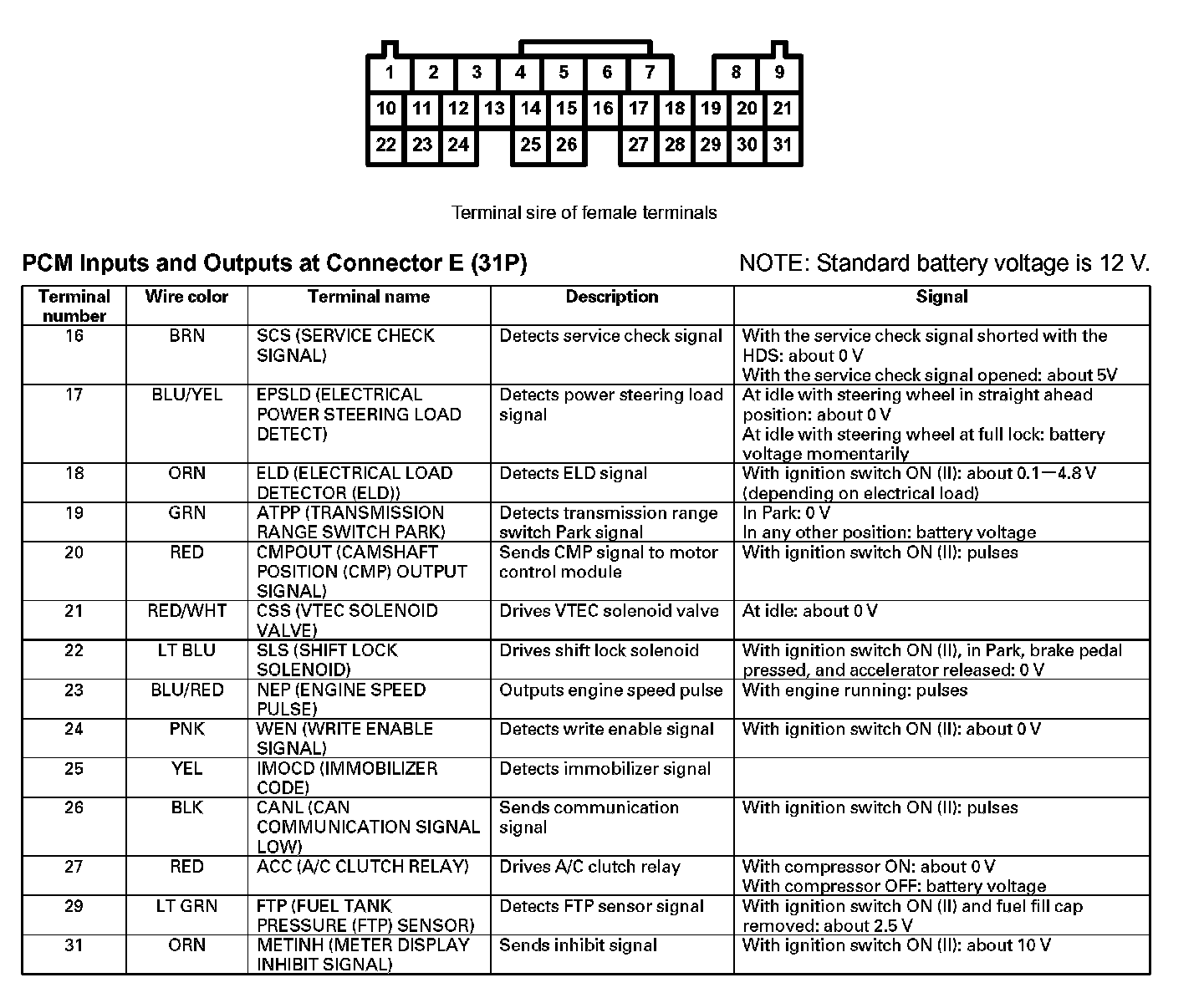

PCM Inputs And Outputs At Connector E (31P) Part 1:



PCM Inputs And Outputs At Connector E (31P) Part 2:
