Home >> Honda >> 2005 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module

General Module

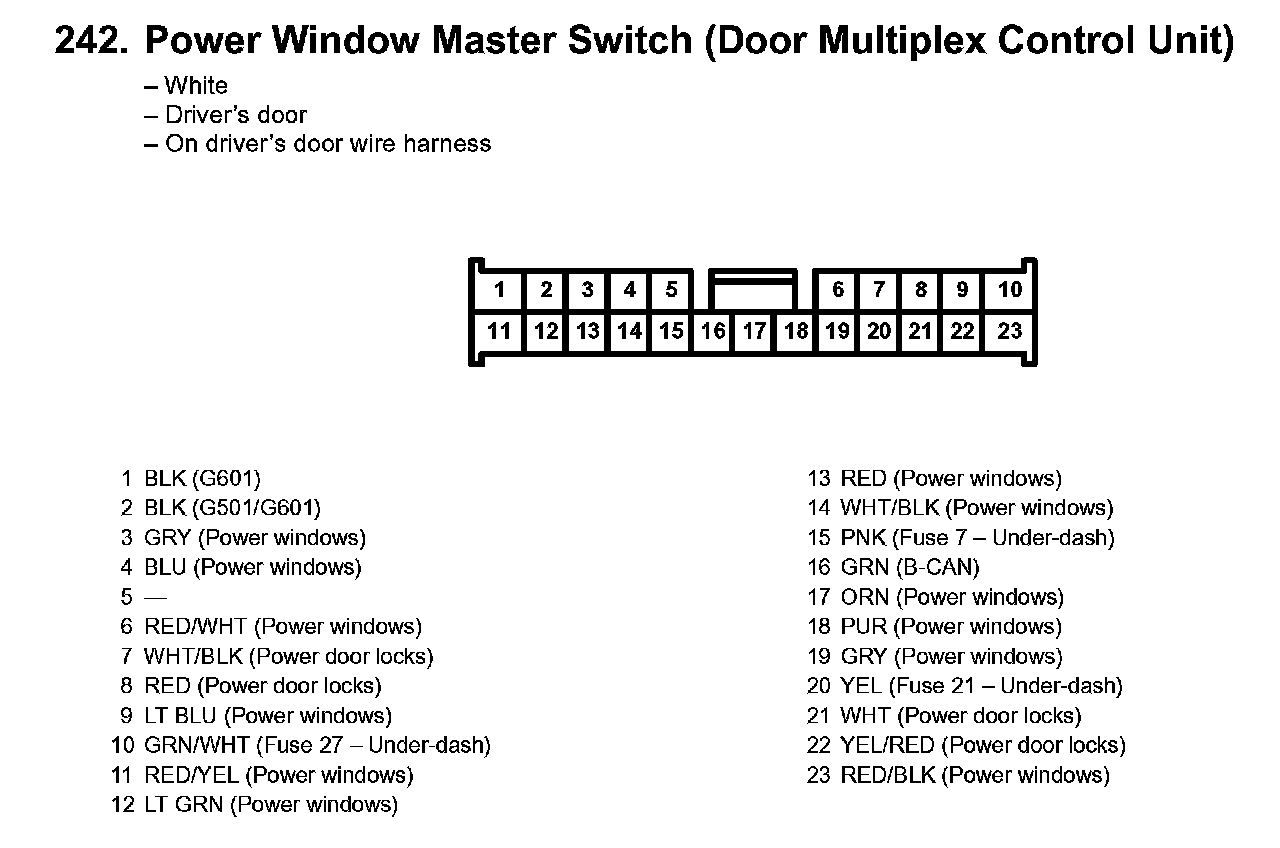

242. Power Window Master Switch (Door Multiplex Control Unit):
