Honda
>>
2005
>>
Accord V6-3.0L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Navigation Module
Navigation Module

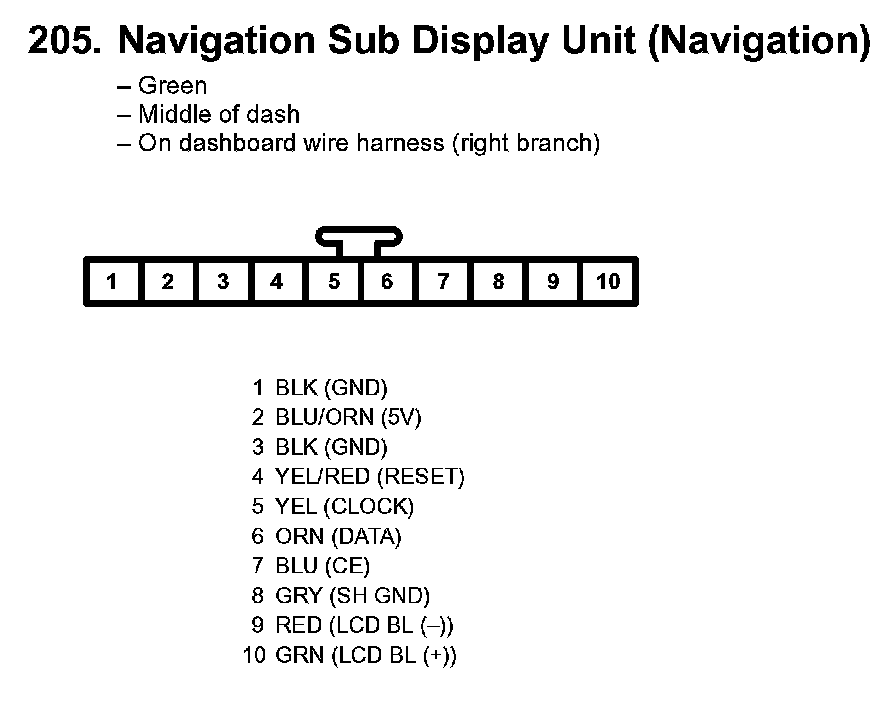

205. Navigation Sub Display Unit (Navigation):

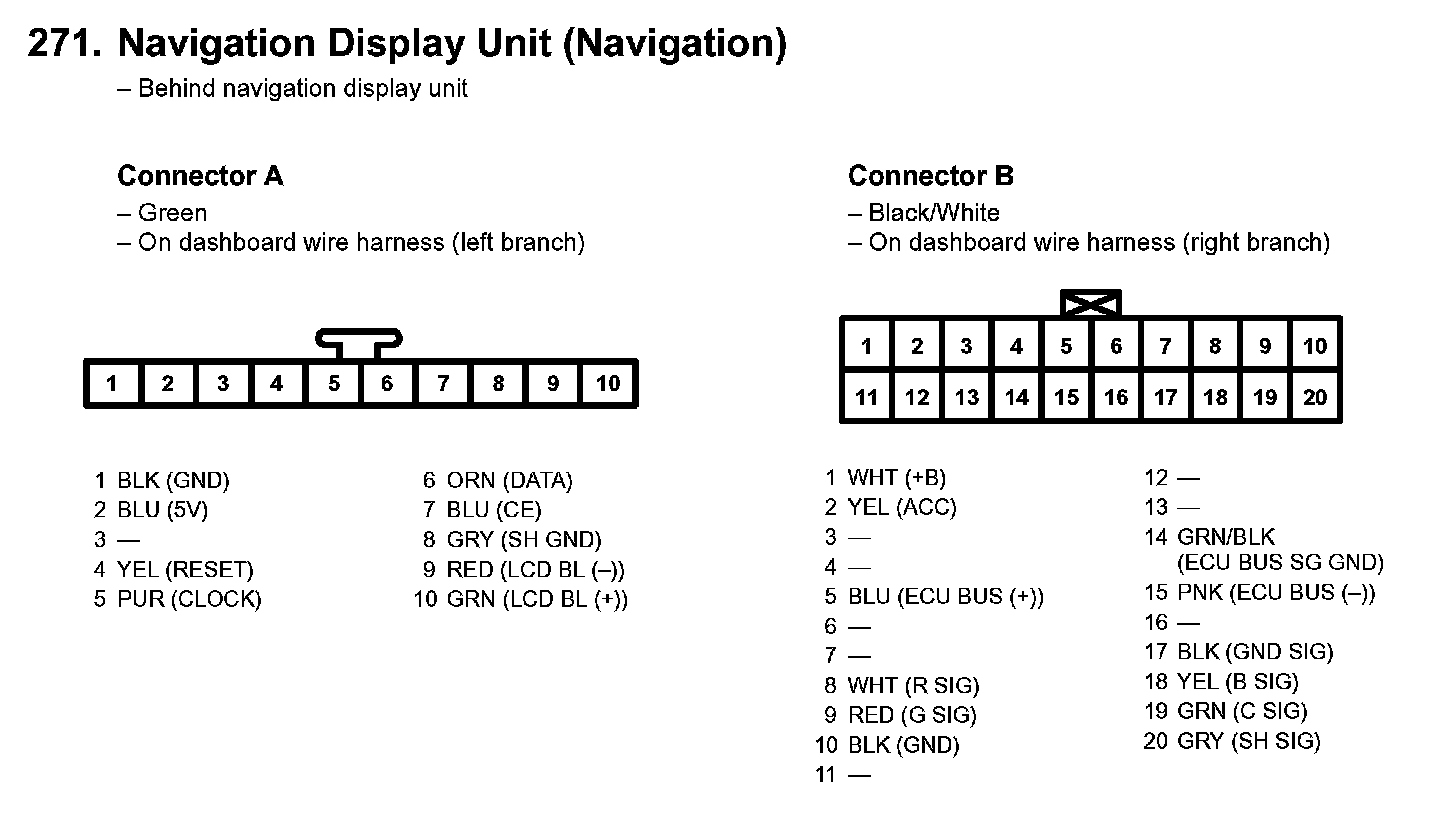

271. Navigation Display Unit (Navigation):

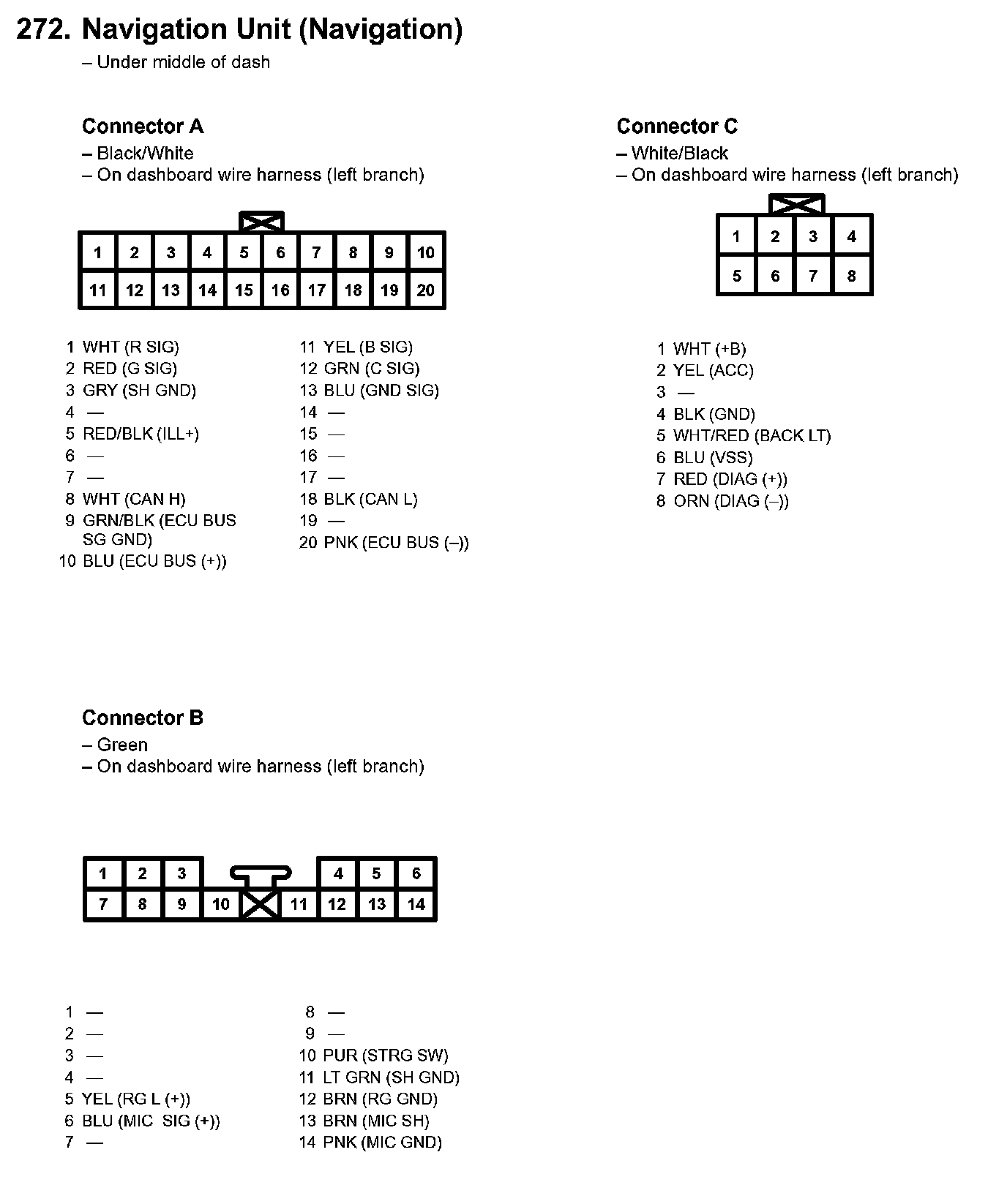

272. Navigation Unit (Navigation):
