Home >> Honda >> 2006 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

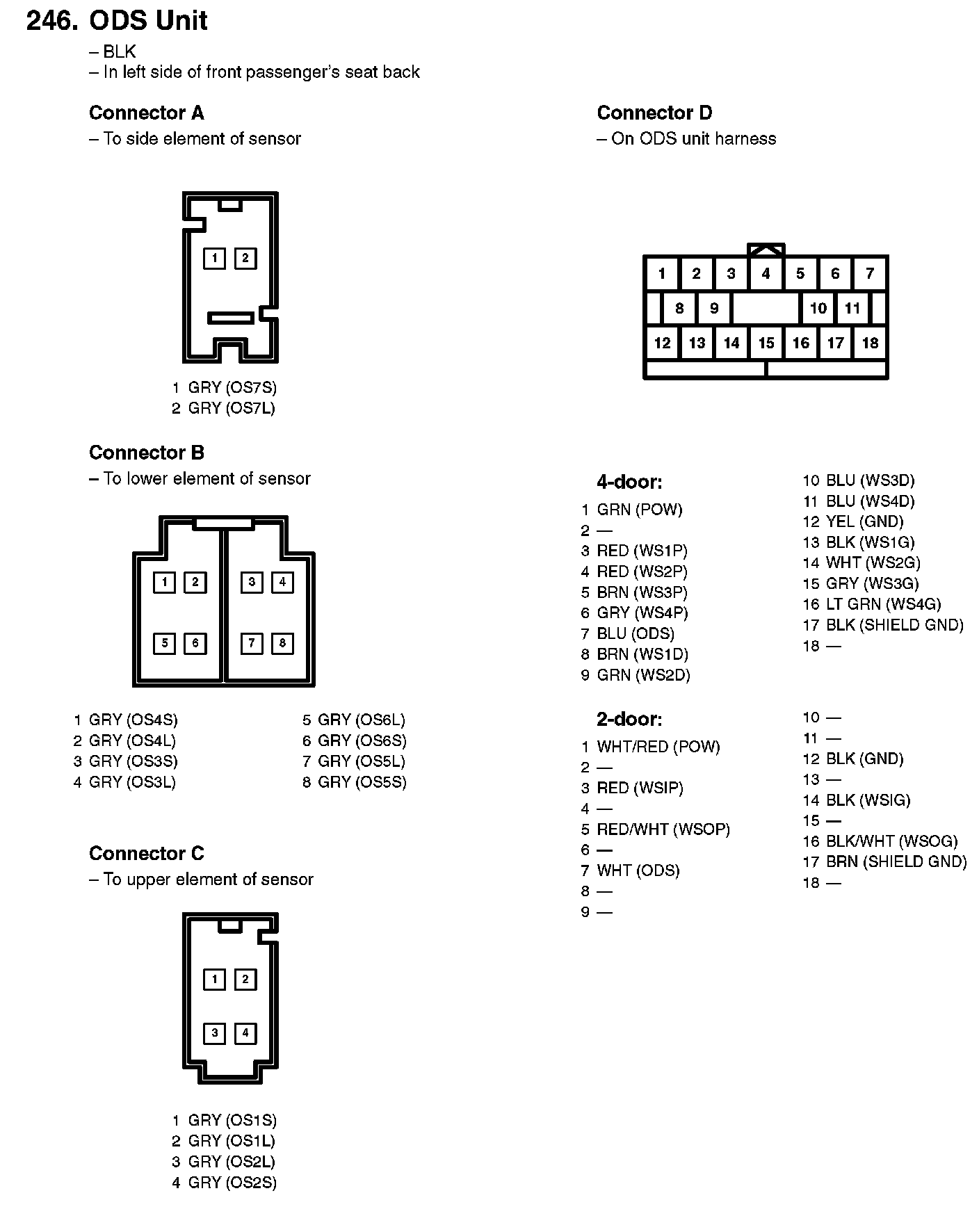

246. ODS Unit:

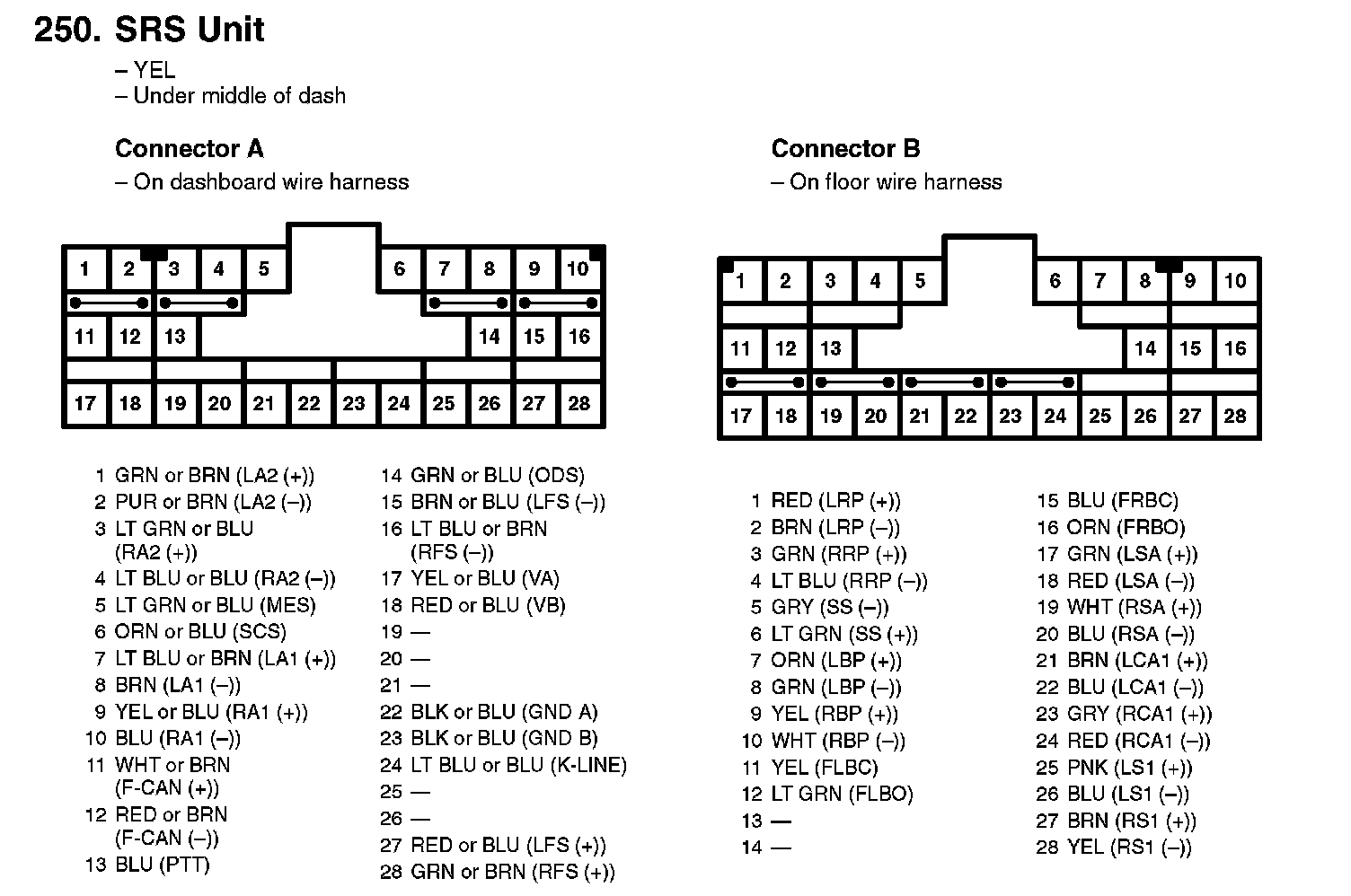

250. SRS Unit:
