Home >> Honda >> 2007 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Tank Unit

Fuel Tank Unit

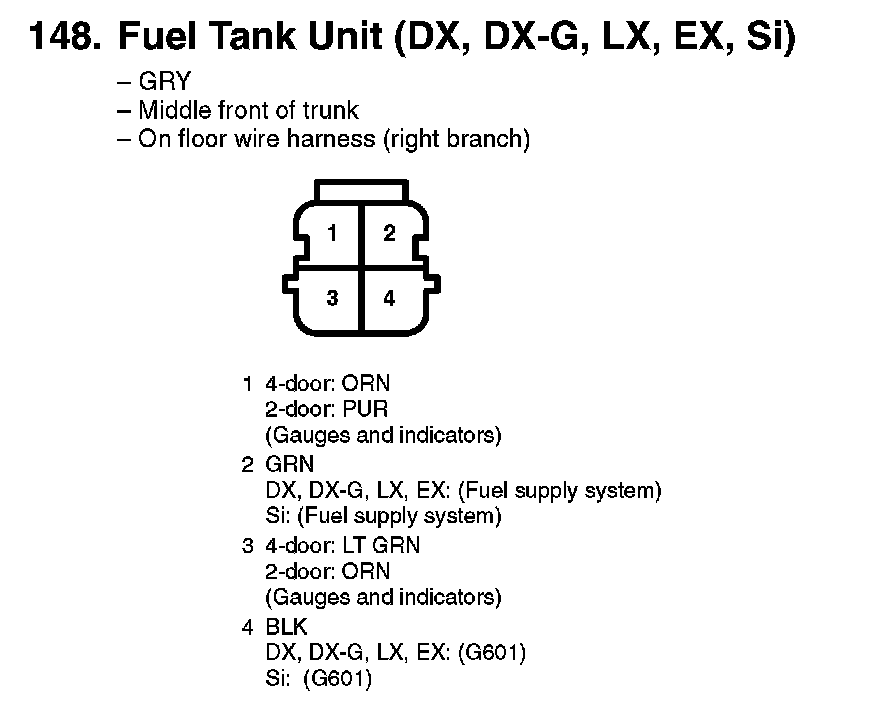

148. Fuel Tank Unit (DX, DX-G, LX, EX, Si):
