Connector Views

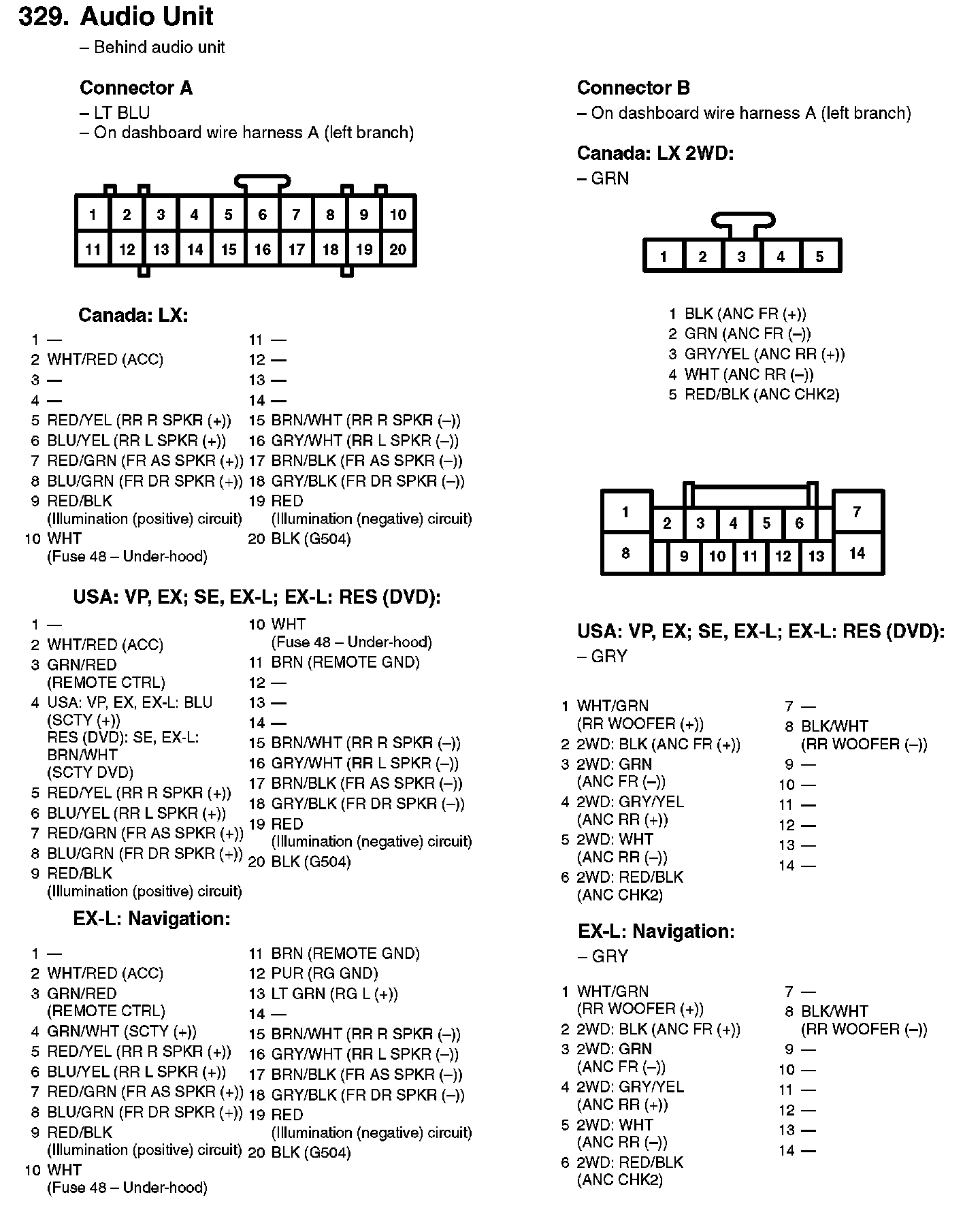

329. Audio Unit:

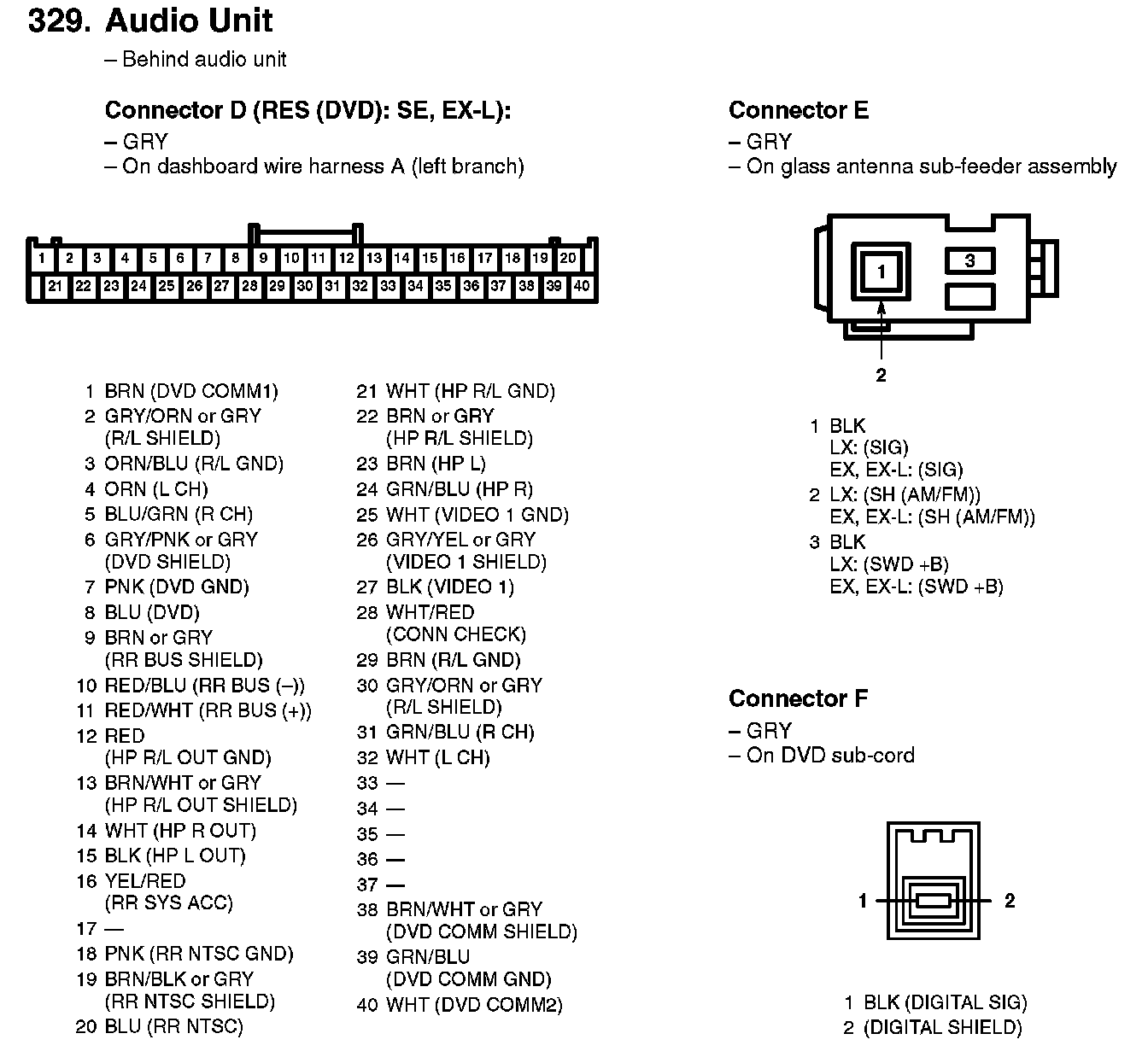

329. Audio Unit:

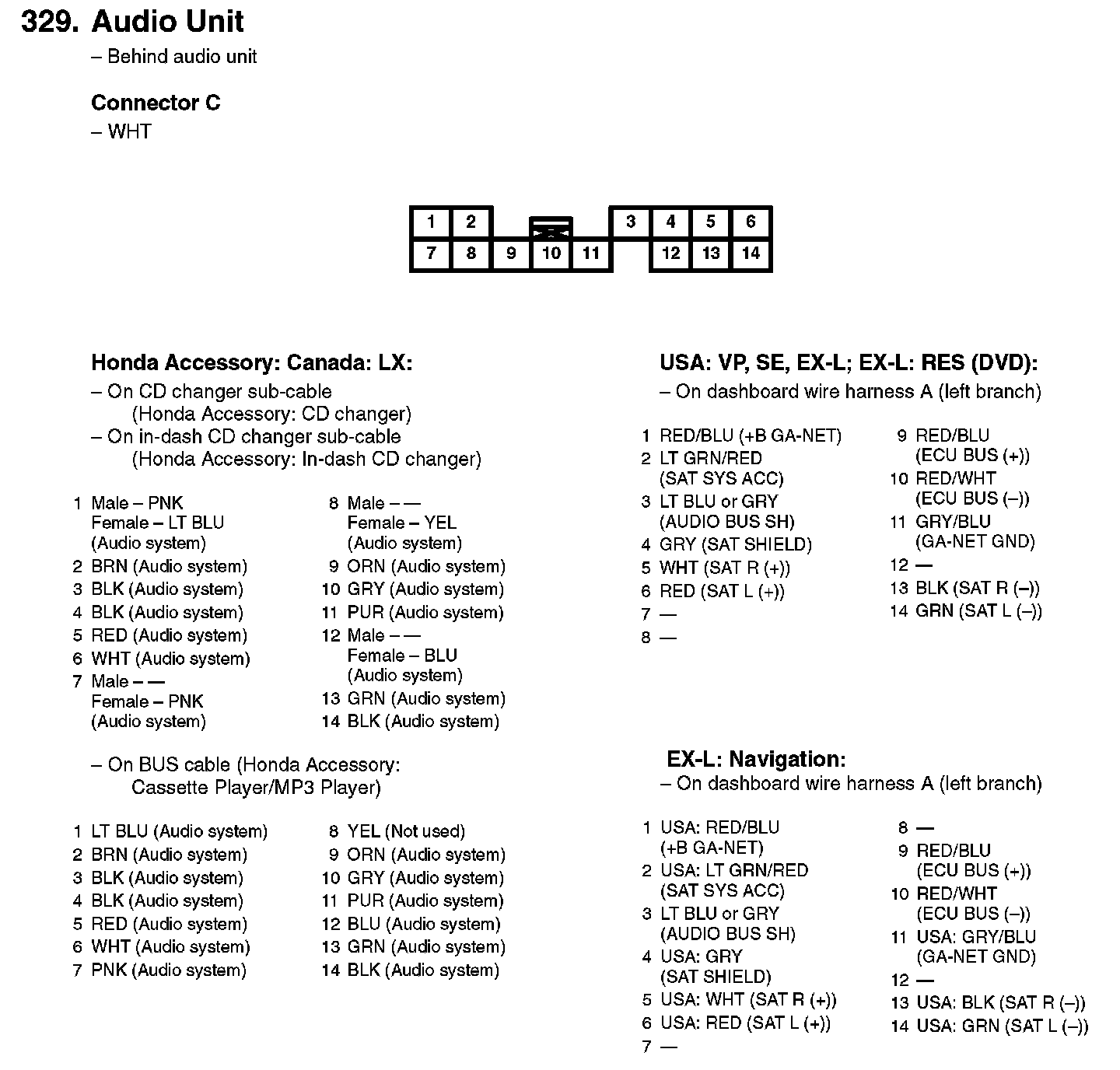

329. Audio Unit:

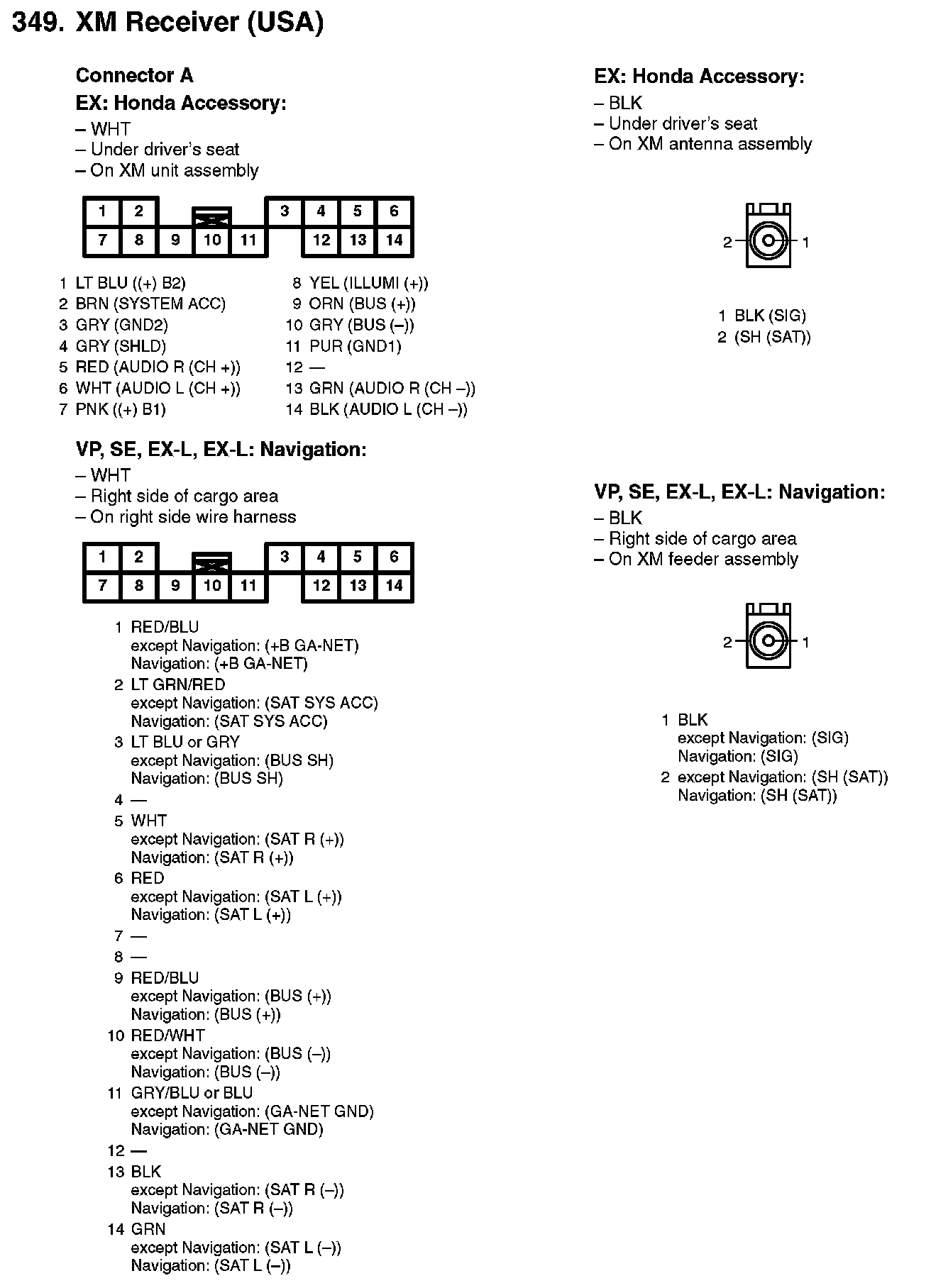

349. XM Receiver (USA):

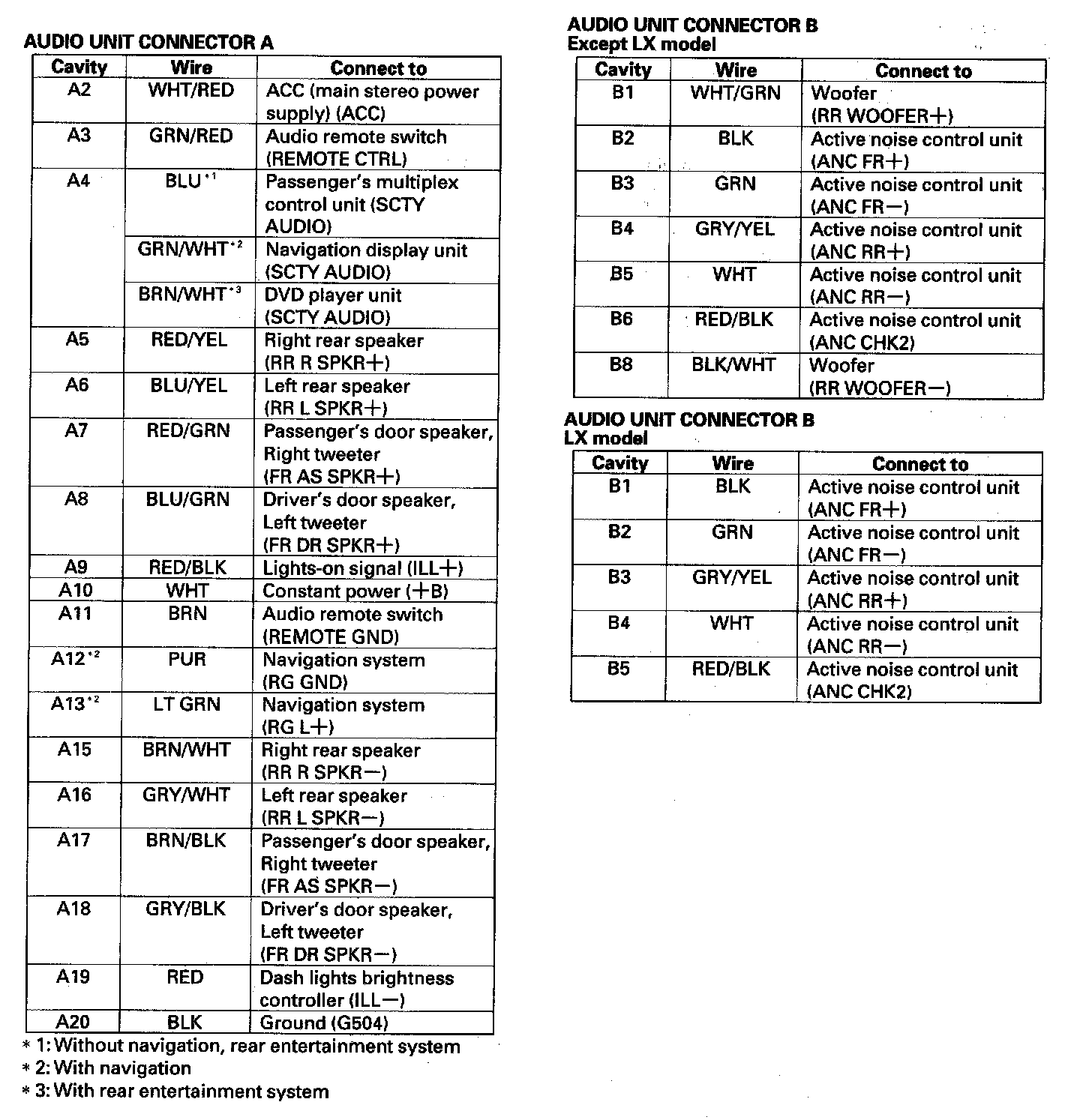

Audio Unit Connector For Inputs And Outputs (Part 1):

Audio Unit Connector For Inputs And Outputs (Part 2):

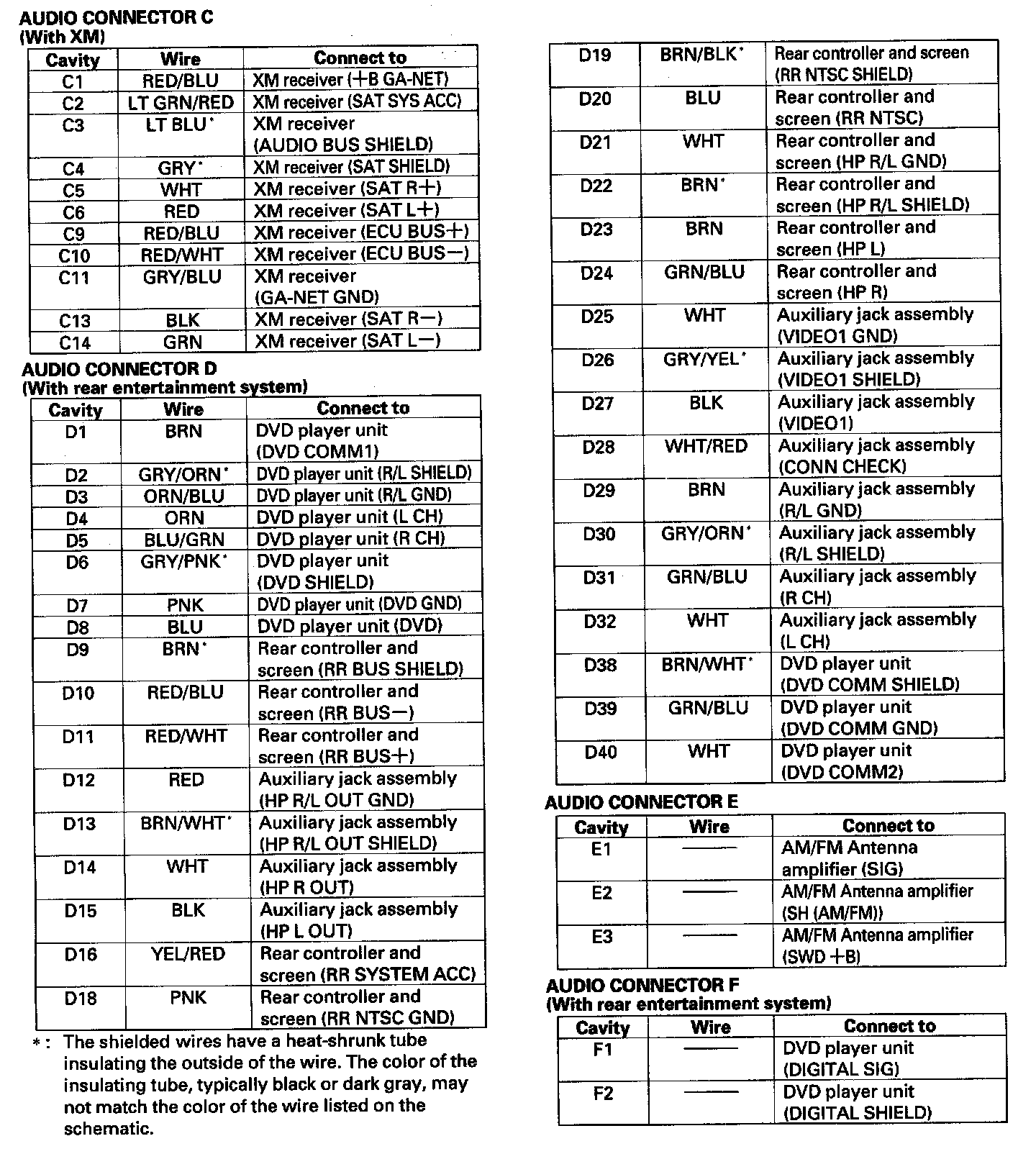

Audio Unit Connector For Inputs And Outputs (Part 3):

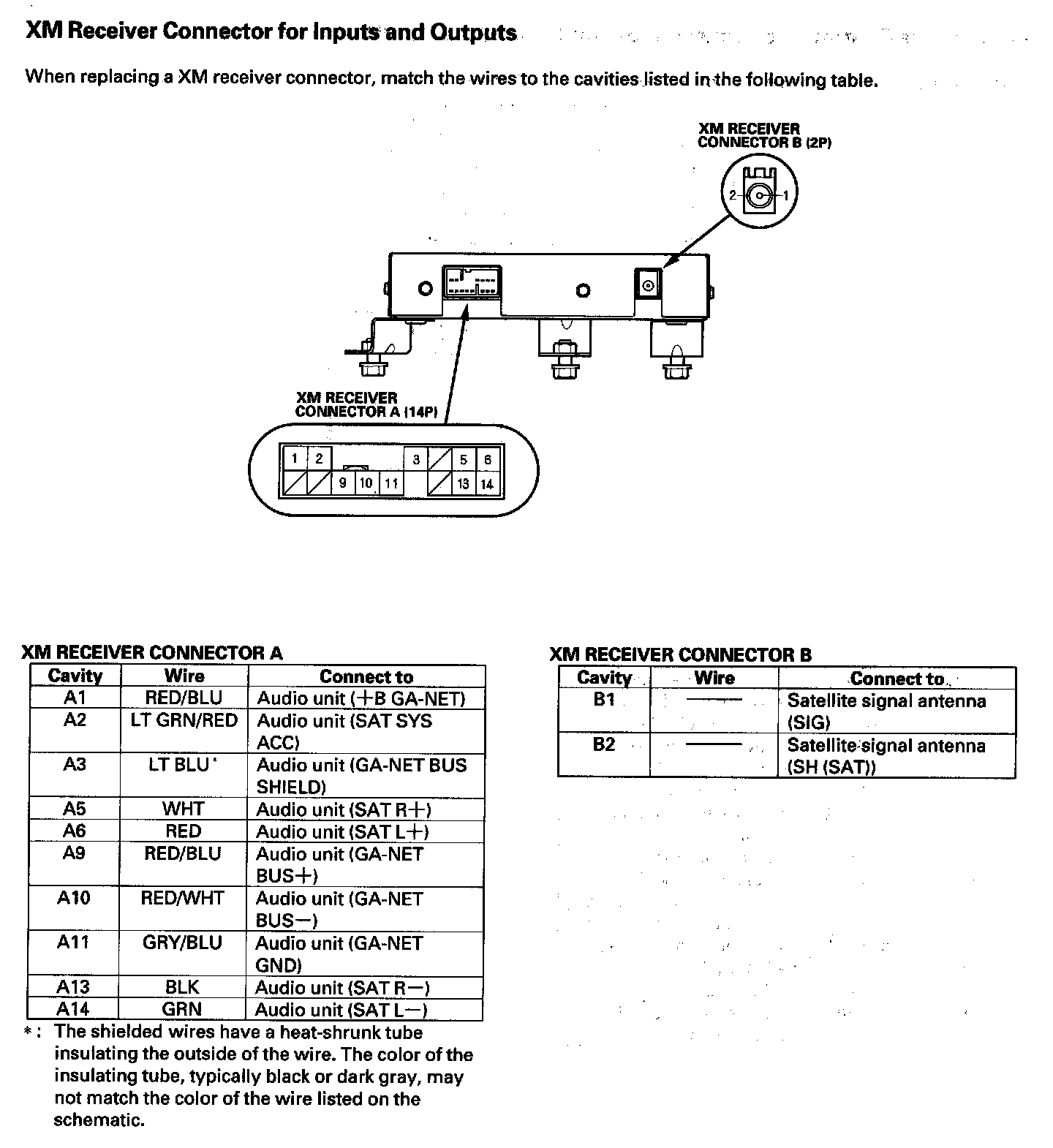

XM Receiver Connector For Inputs And Outputs:
