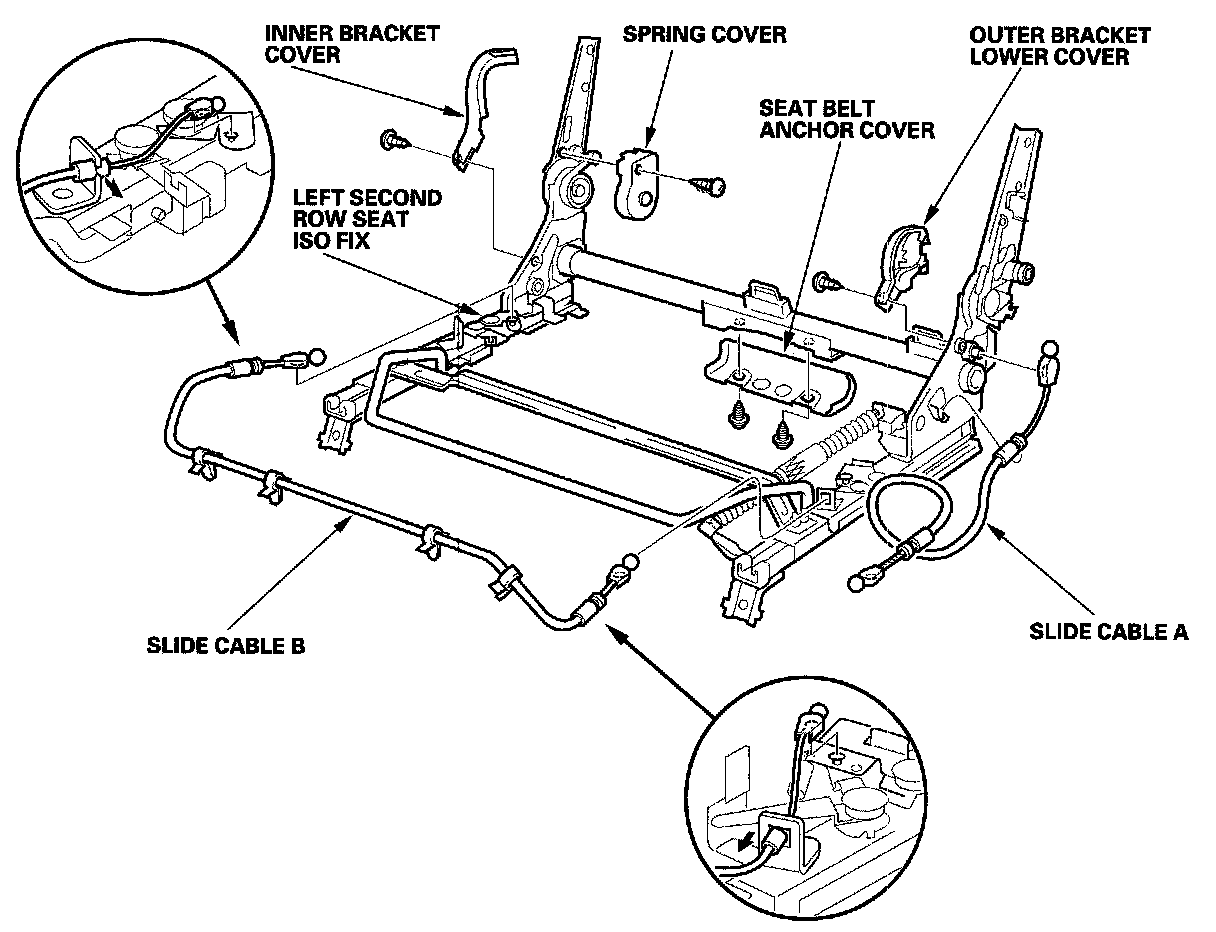

Left Second Row Seat Linkage Disassembly/Reassembly

Left Second Row Seat Linkage Disassembly/Reassembly






NOTE:
- Take care not to bend the slide cable.
- Replace the push nut with a new one.
- Apply multipurpose grease to the sliding portions.
- Make sure the slide cable is connected securely, and if necessary, adjust the cable.
