Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit Diagram
Circuit Diagram
Circuit Diagram

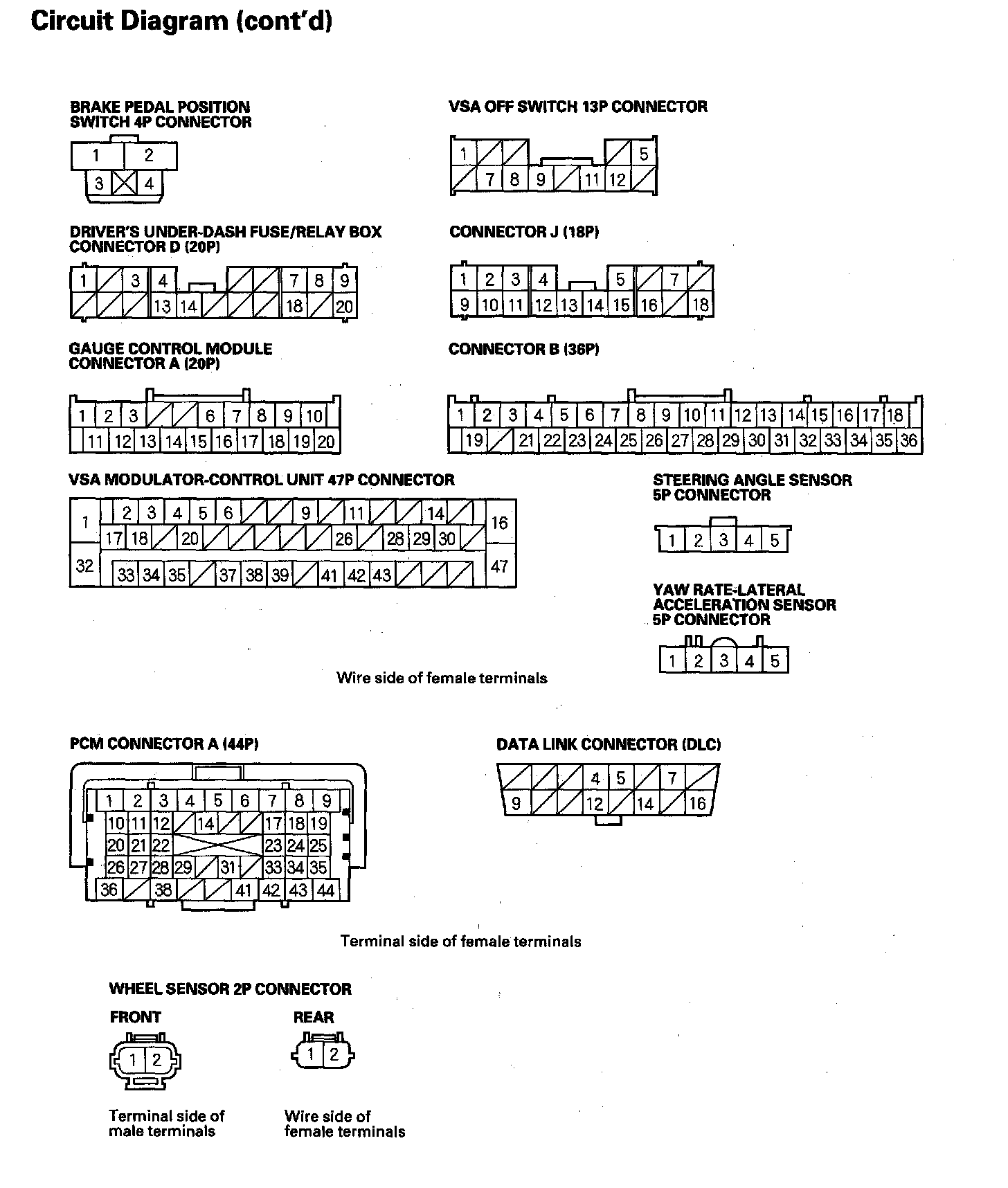

ABS/TCS Circuit Diagram (Part 1):

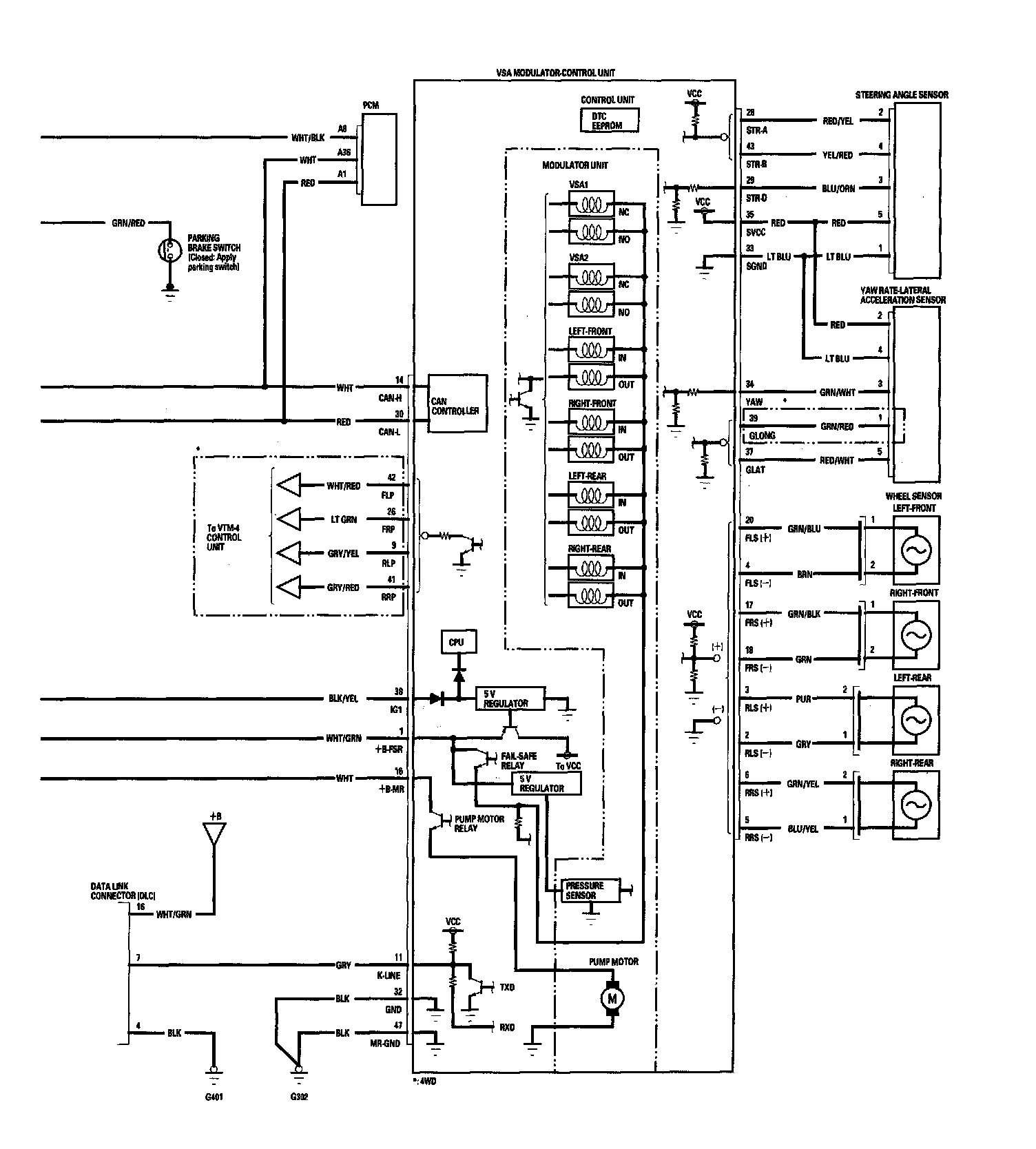

ABS/TCS Circuit Diagram (Part 2):

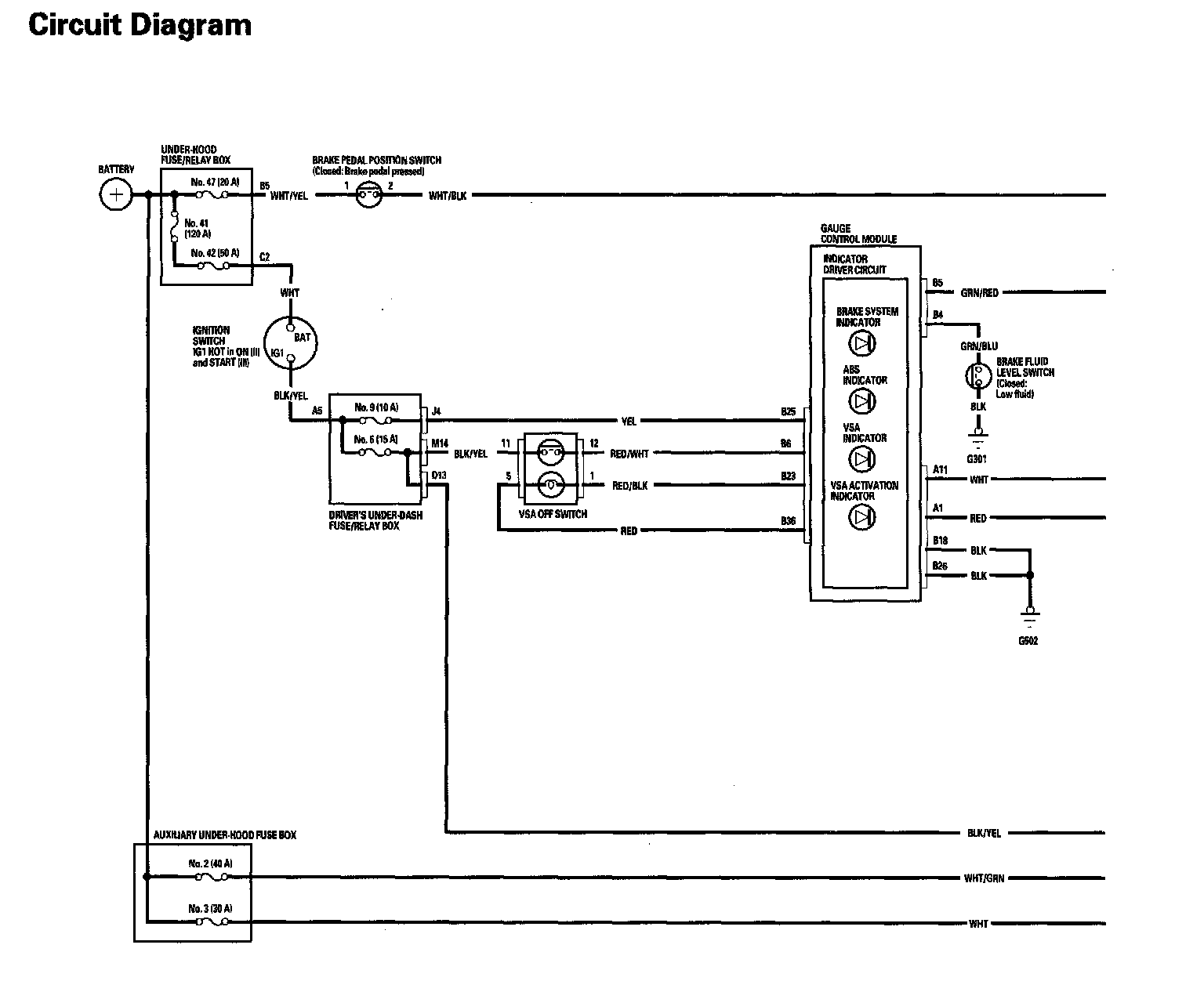

ABS/TCS Circuit Diagram (Part 3):
