Clockspring Assembly / Spiral Cable, Air Bag
Clockspring Assembly / Spiral Cable, Air Bag

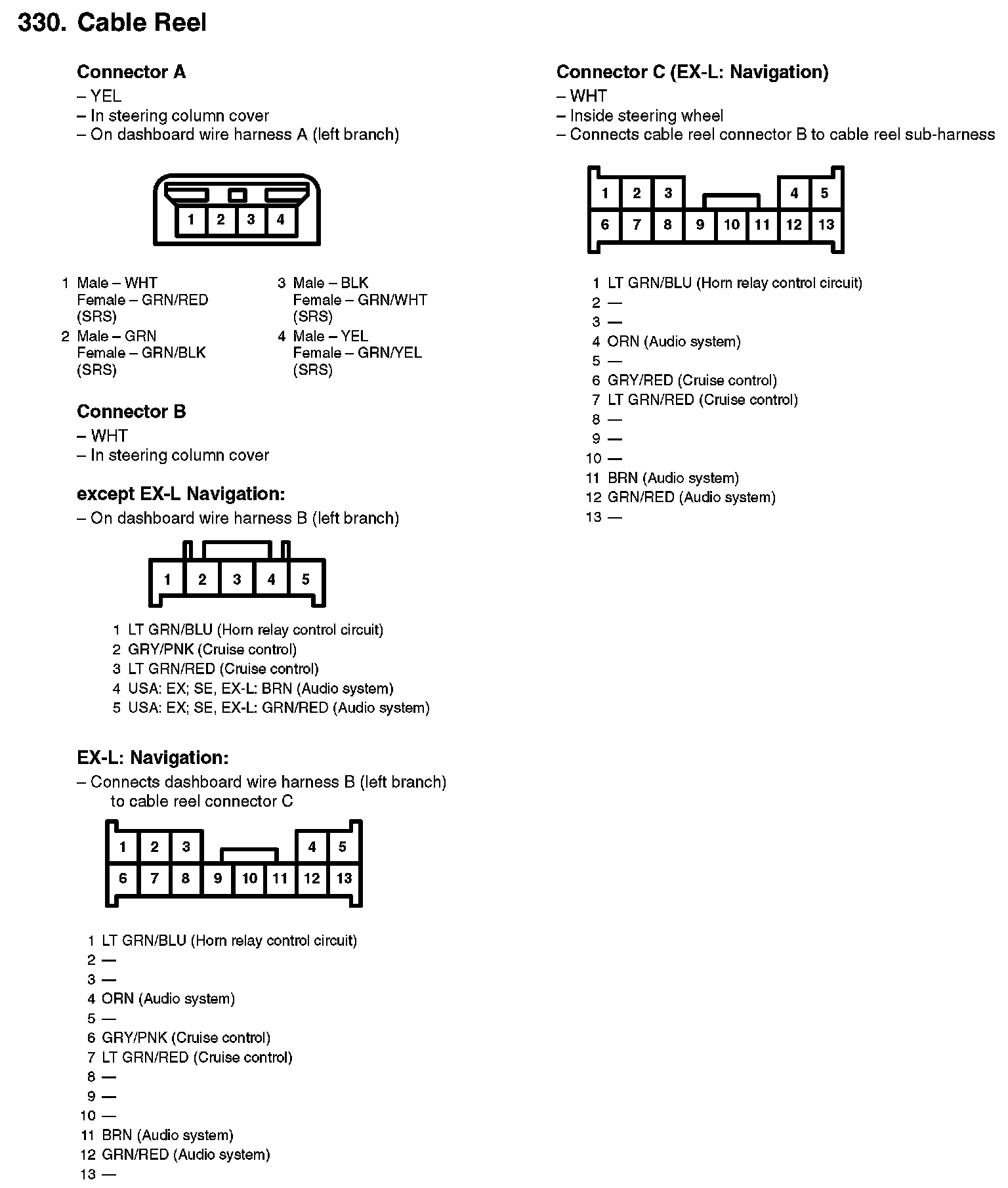

330. Cable Reel:
