Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
System Diagram
>>
Charging System Circuit Diagram
Charging System Circuit Diagram

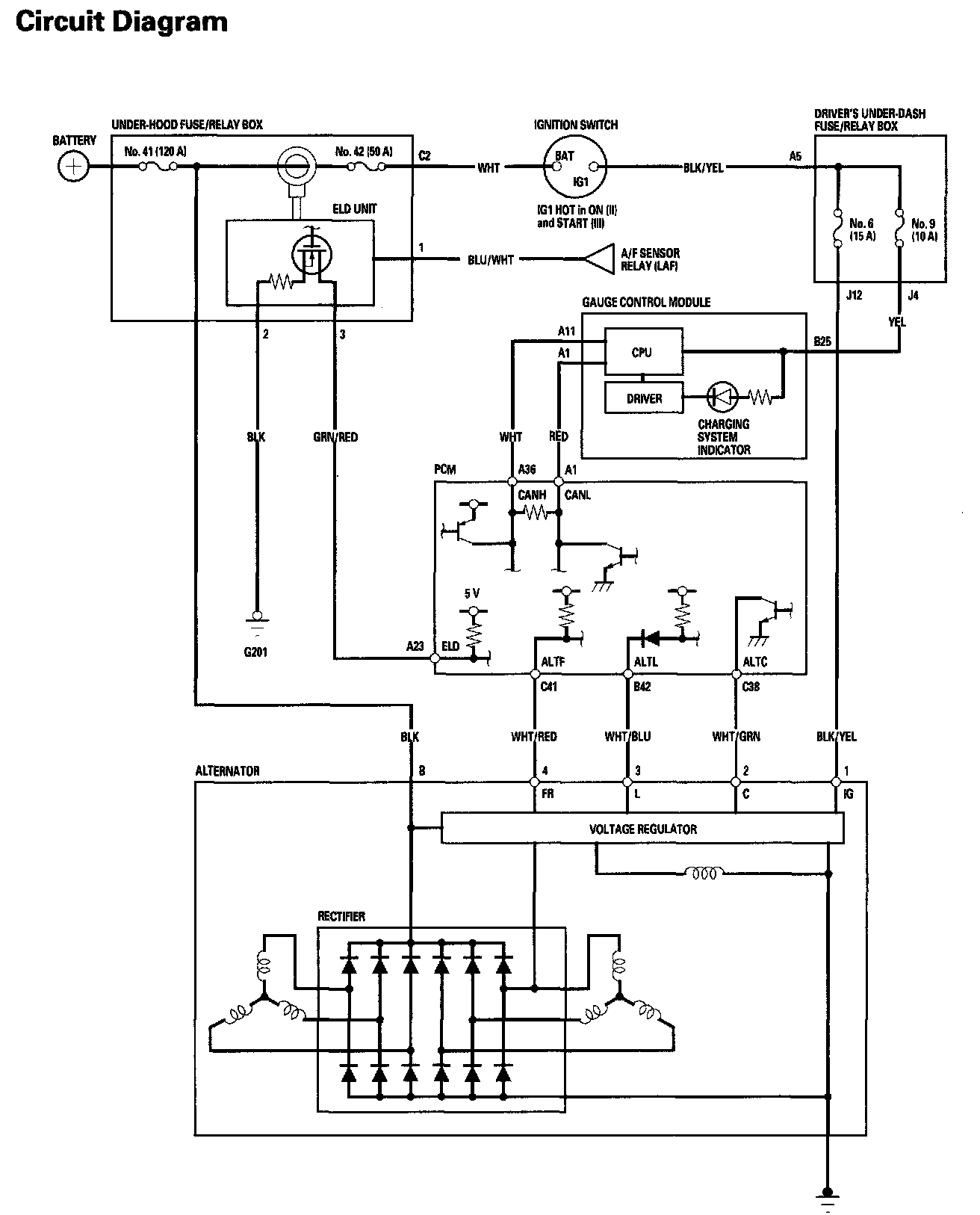

Charging System Circuit Diagram:
