Home >> Honda >> 2008 >> Pilot 4WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Entertainment Systems >> Circuit Diagrams

Circuit Diagrams

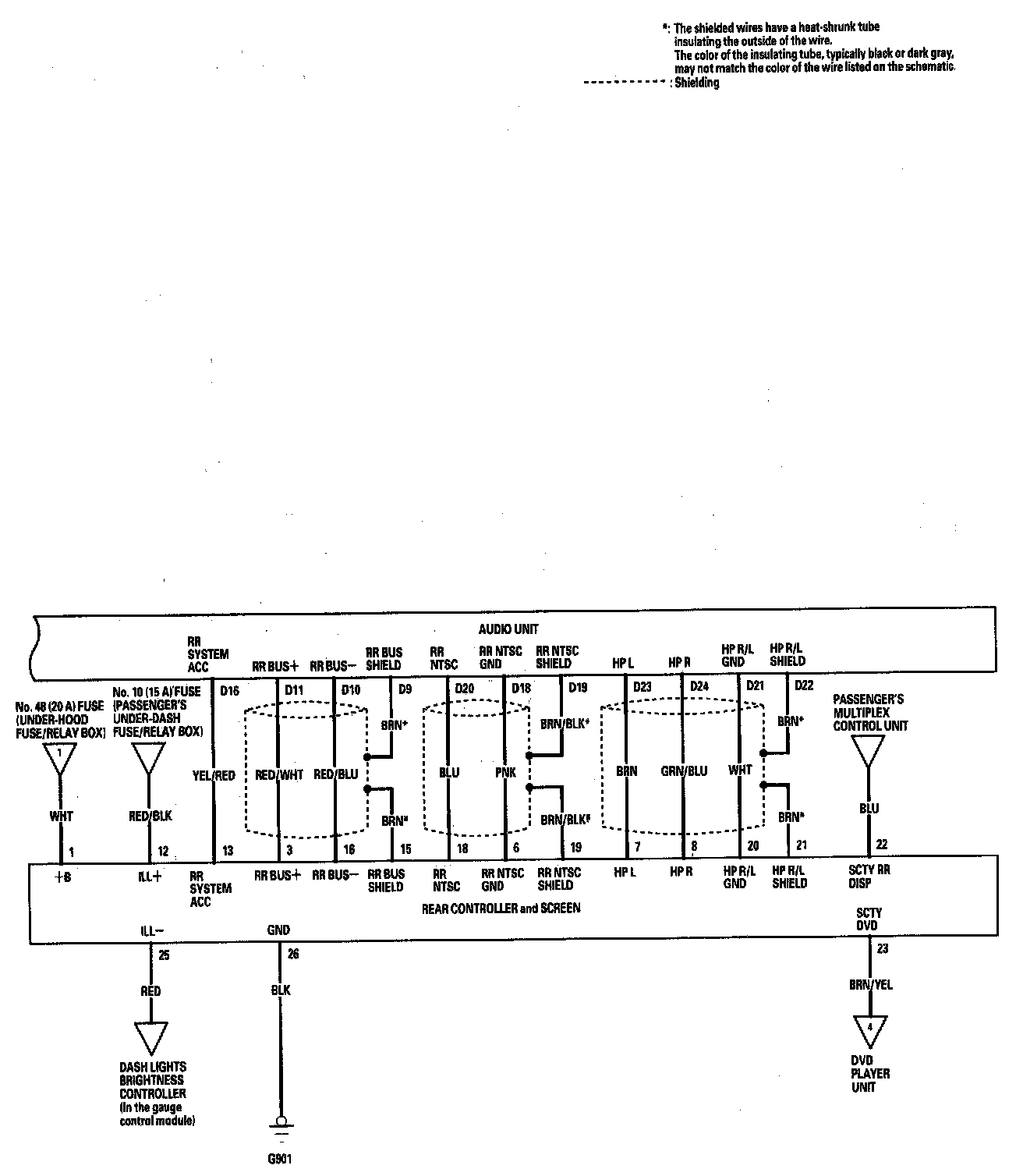

Rear Entertainment System Circuit Diagram (Part 1):

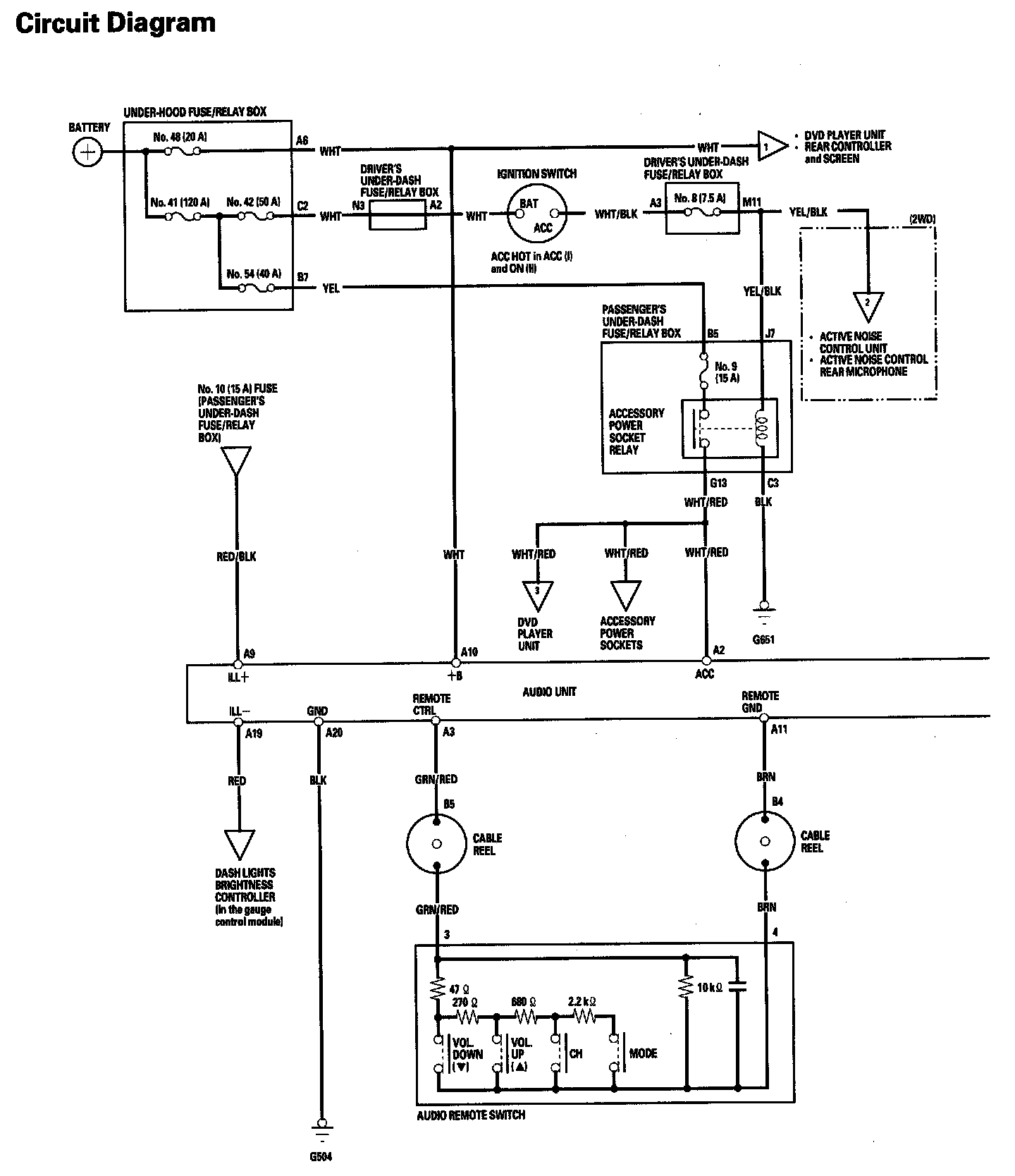

Rear Entertainment System Circuit Diagram (Part 2):

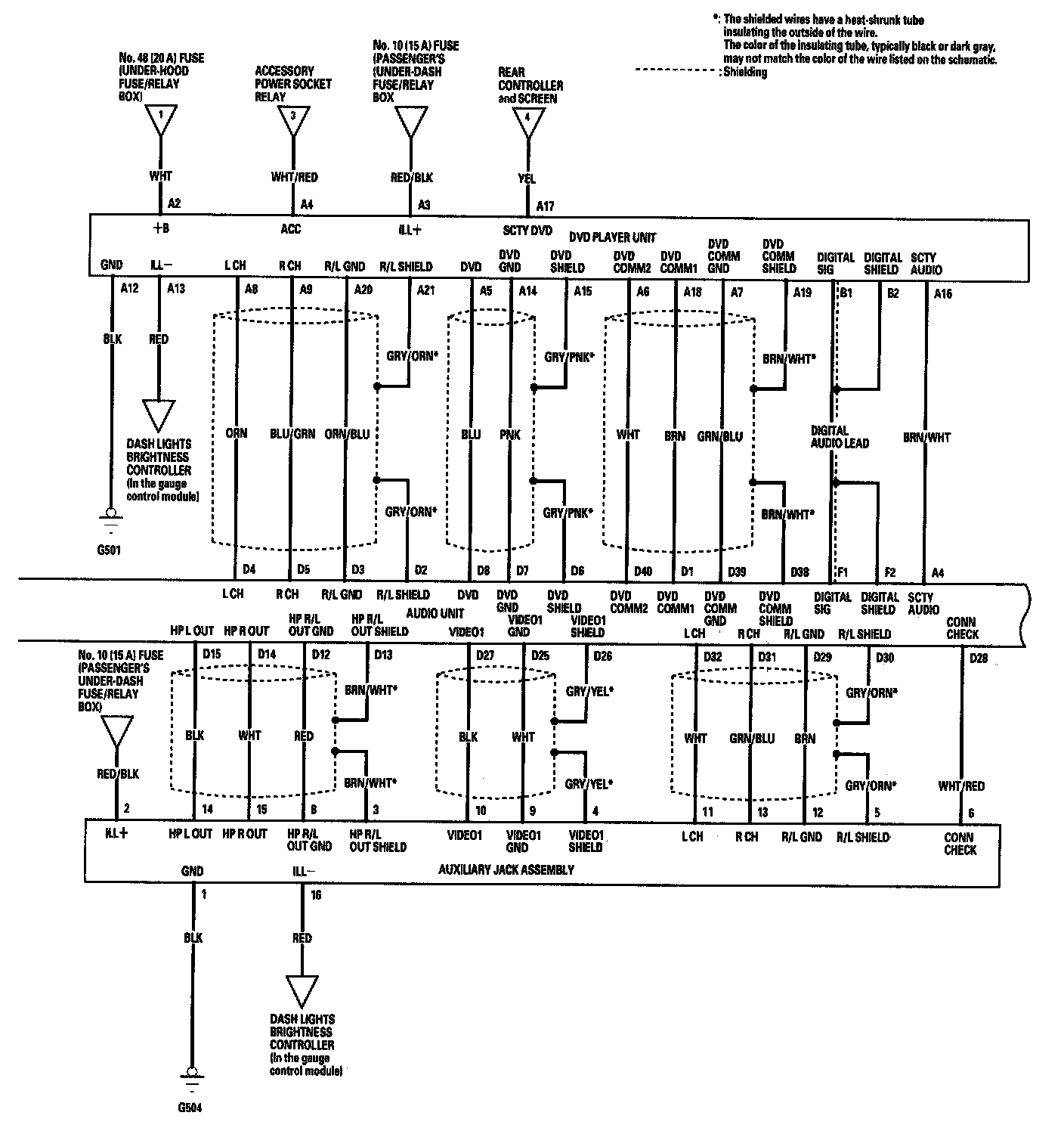

Rear Entertainment System Circuit Diagram (Part 3):

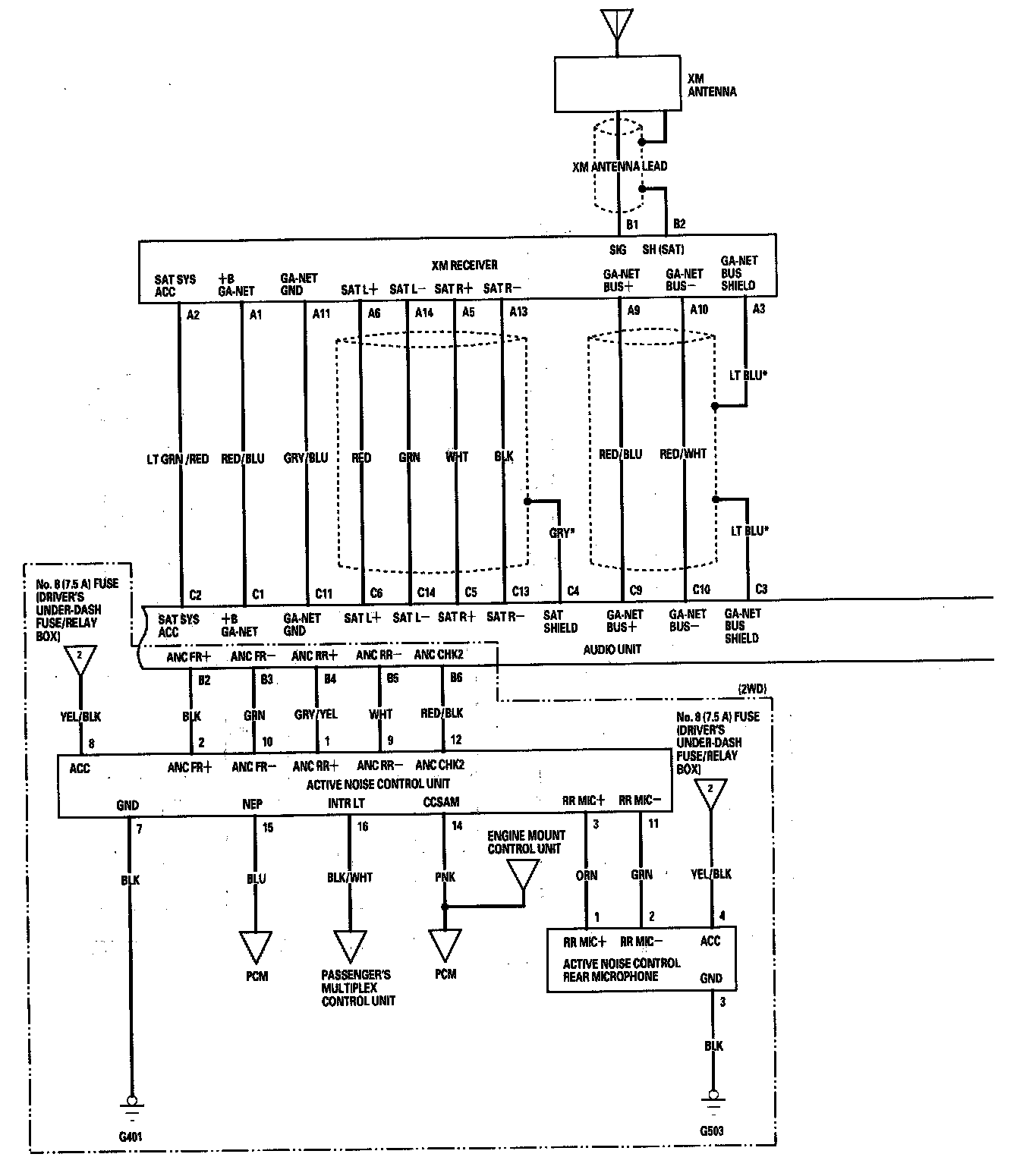

Rear Entertainment System Circuit Diagram (Part 4):



Rear Entertainment System Circuit Diagram (Part 5):
