Circuit Diagrams

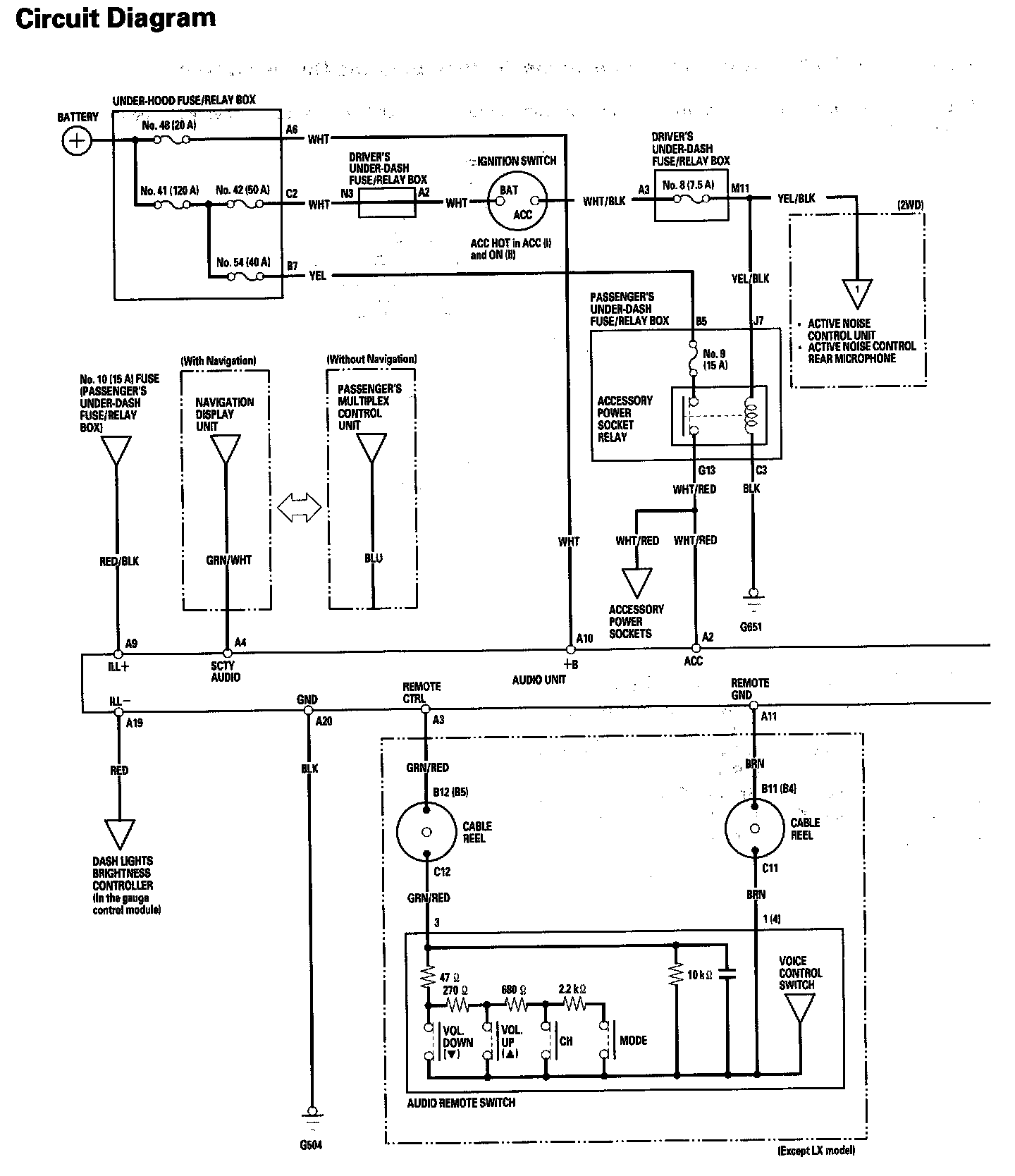

Audio System Circuit Diagram (Part 1):

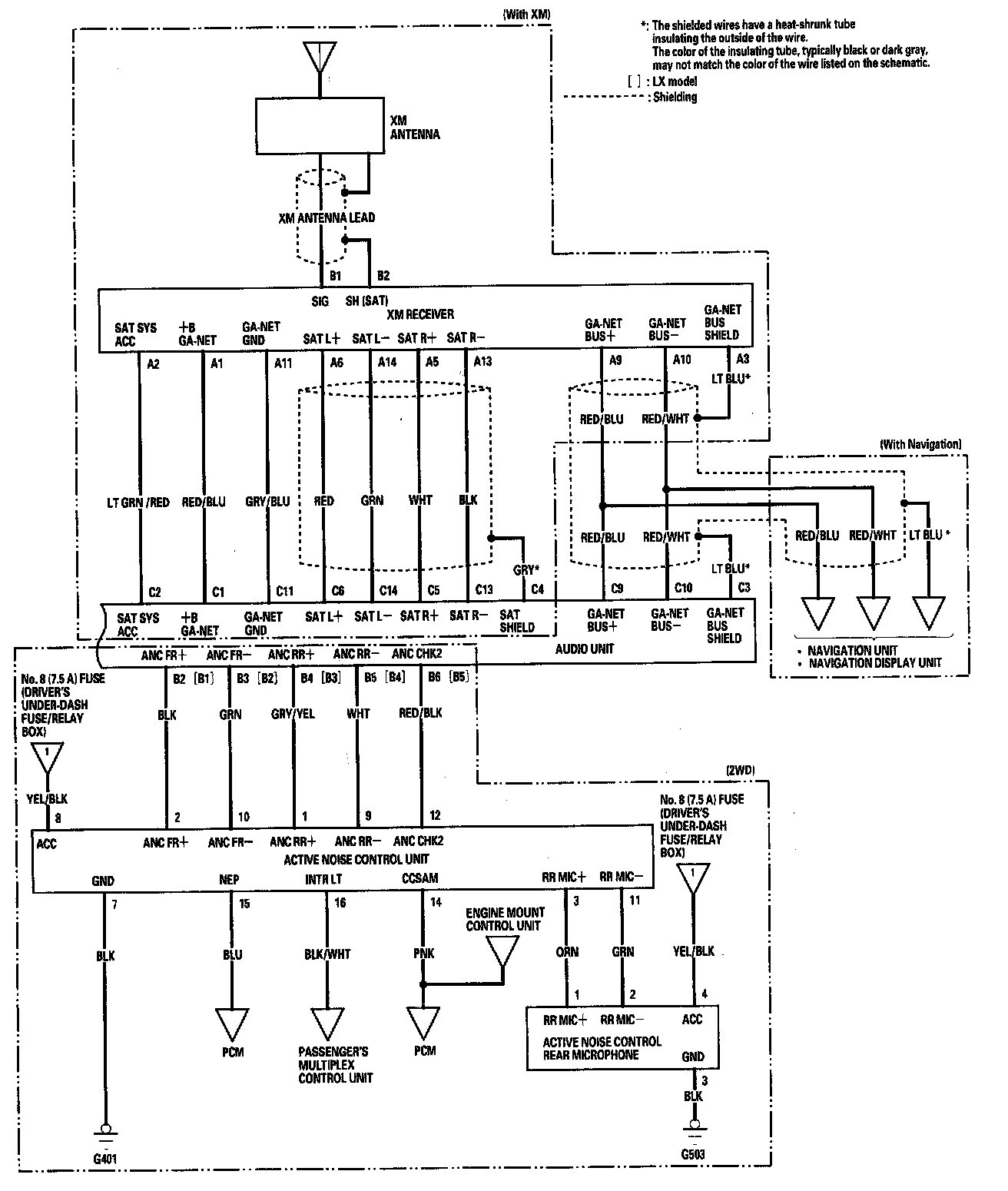

Audio System Circuit Diagram (Part 2):

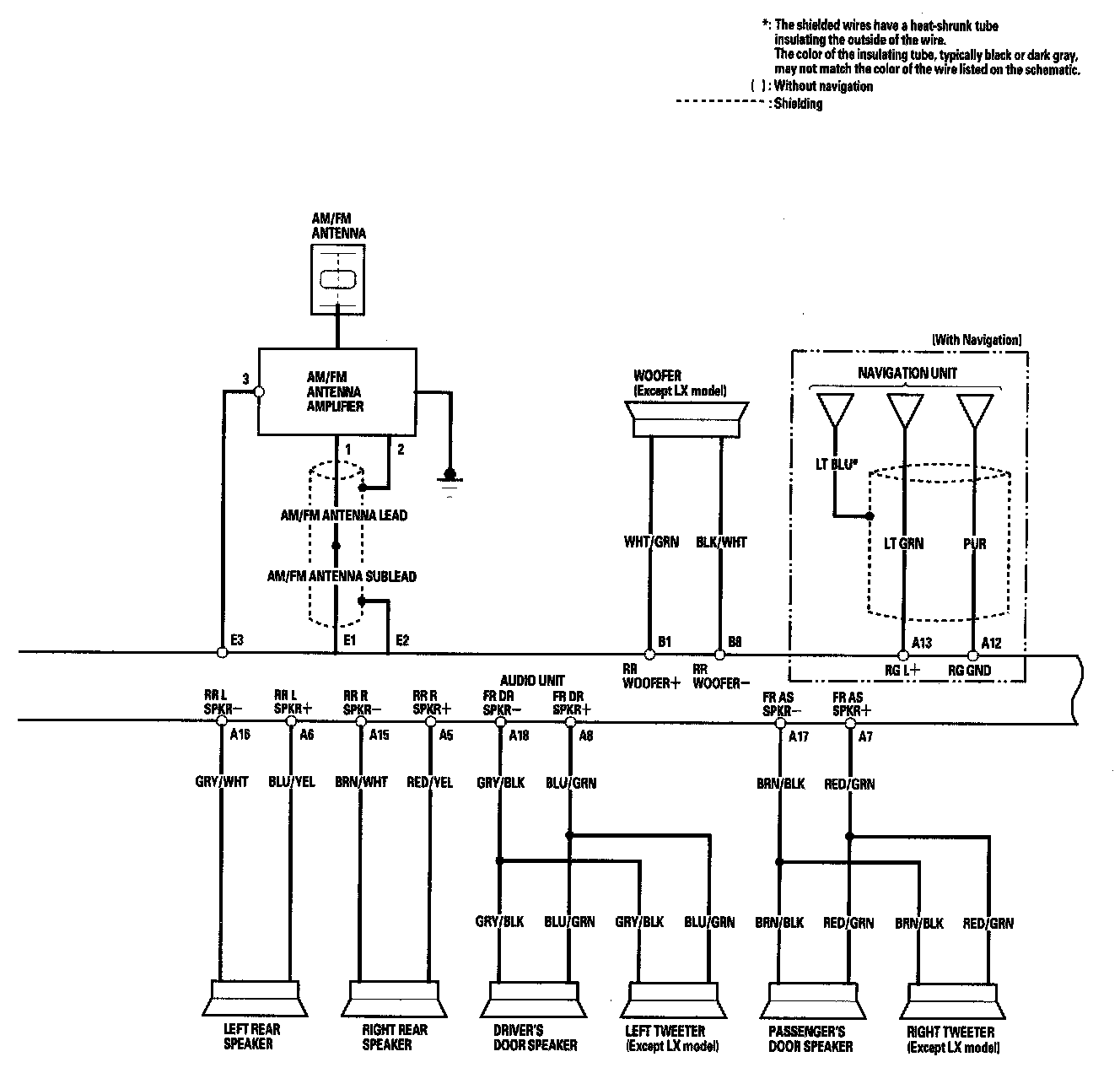

Audio System Circuit Diagram (Part 3):
