Circuit Diagrams

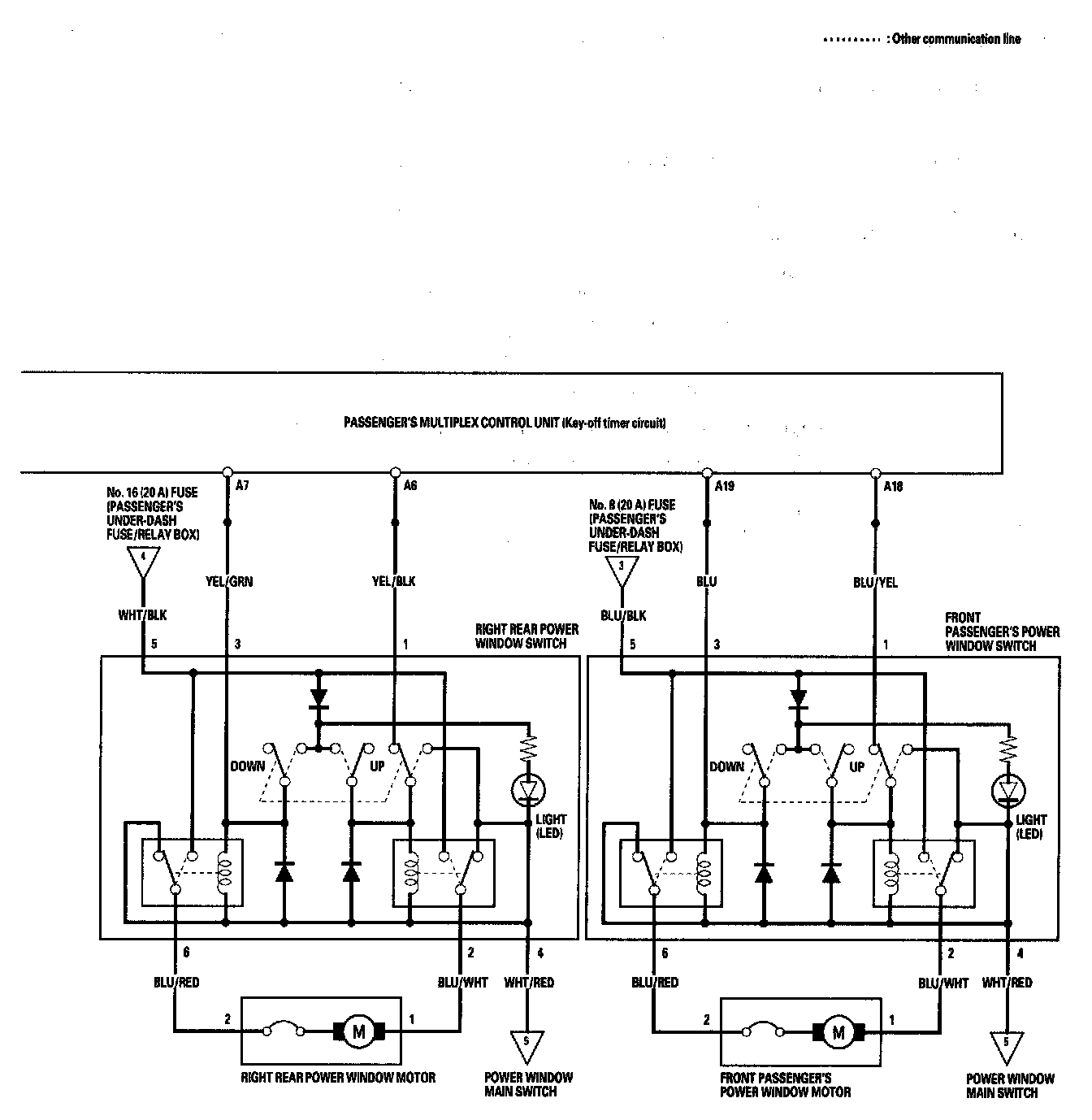

Power Windows Circuit Diagram (Part 1):

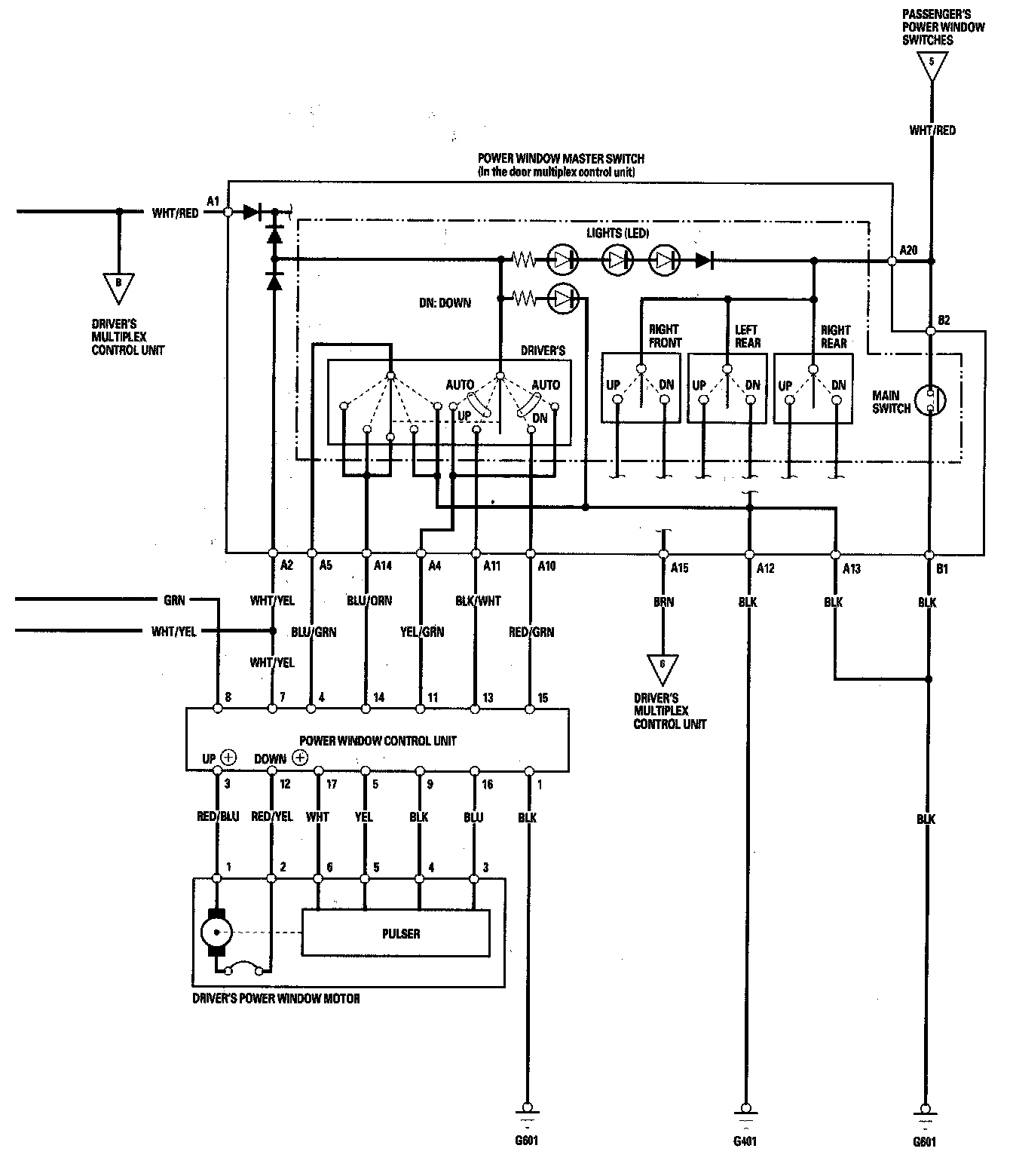

Power Windows Circuit Diagram (Part 2):

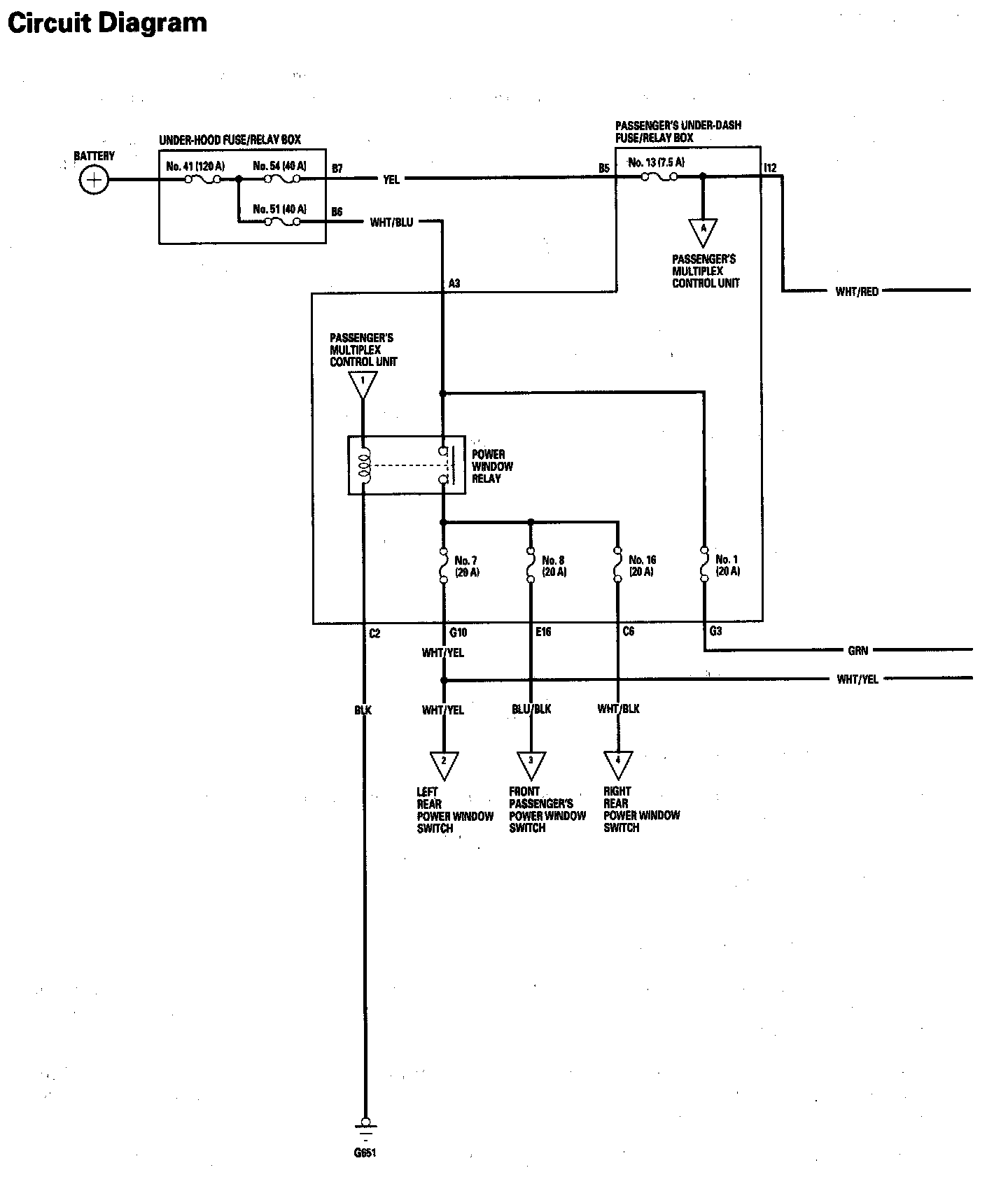

Power Windows Circuit Diagram (Part 3):

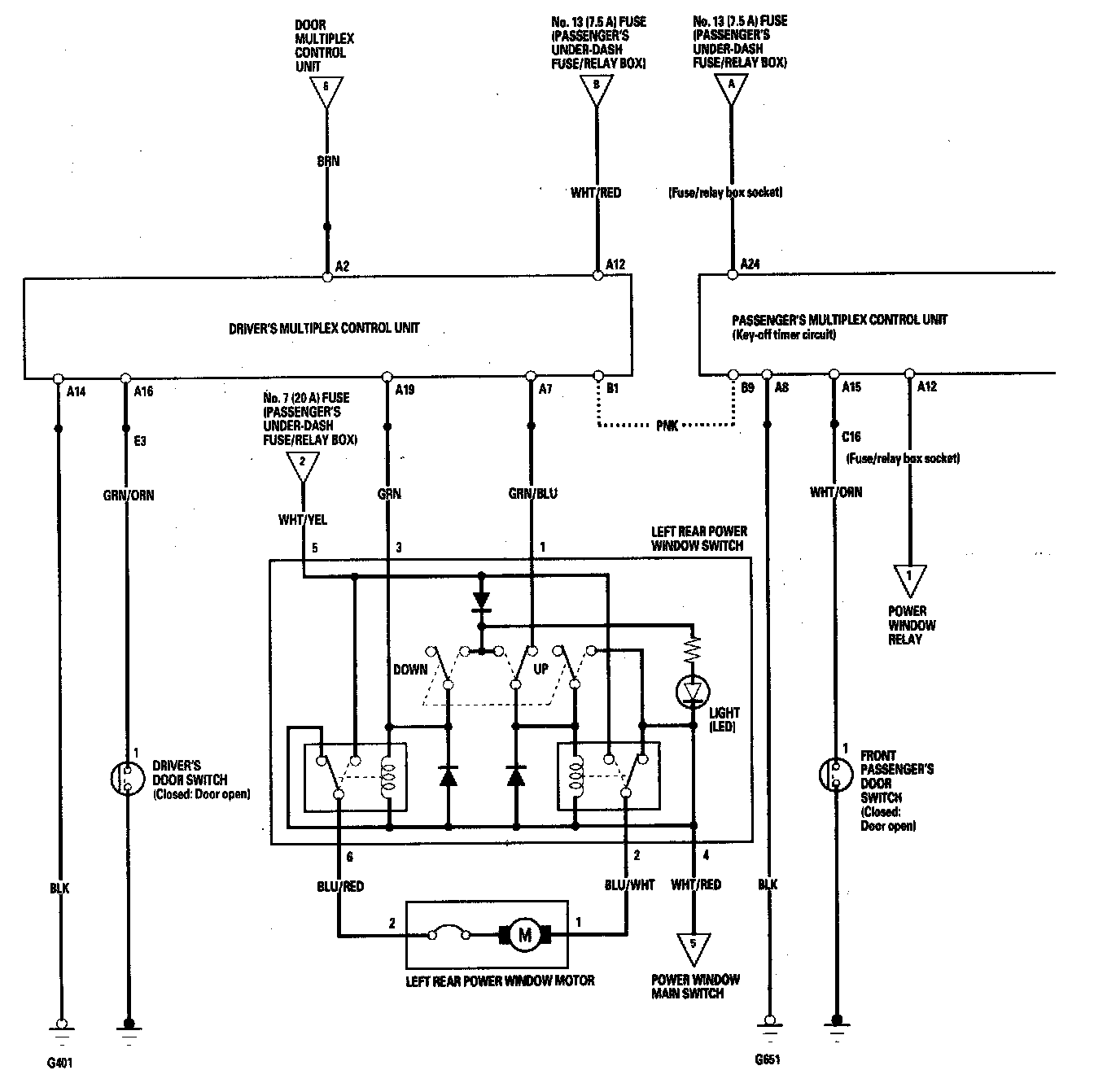

Power Windows Circuit Diagram (Part 4):
