Home >> Honda >> 2008 >> Pilot 4WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Console Accessory Power Socket Sub-harness

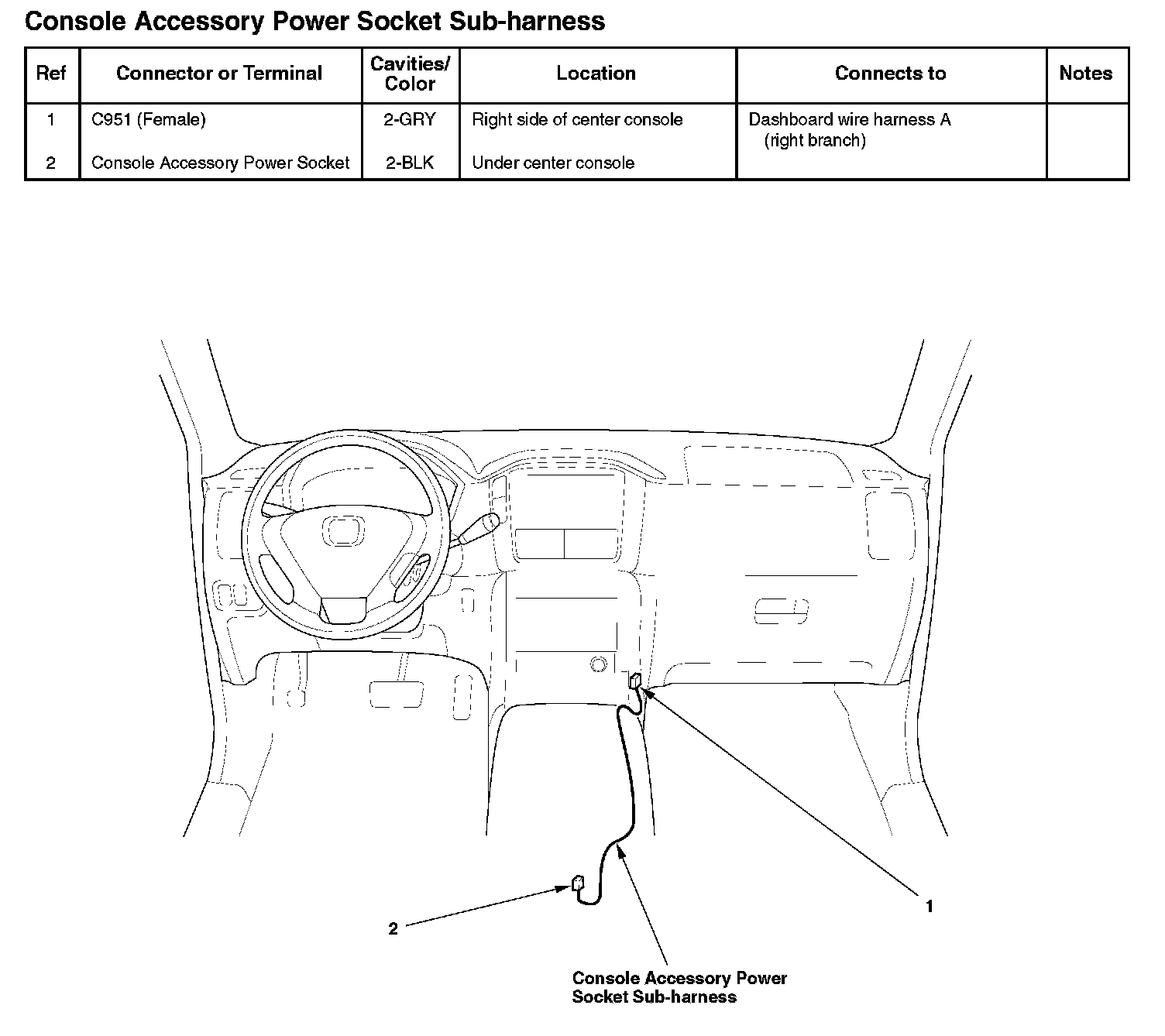

Console Accessory Power Socket Sub-harness

Console Accessory Power Socket Sub-harness:
