Driver's Door Subharness
Driver's Door Subharness

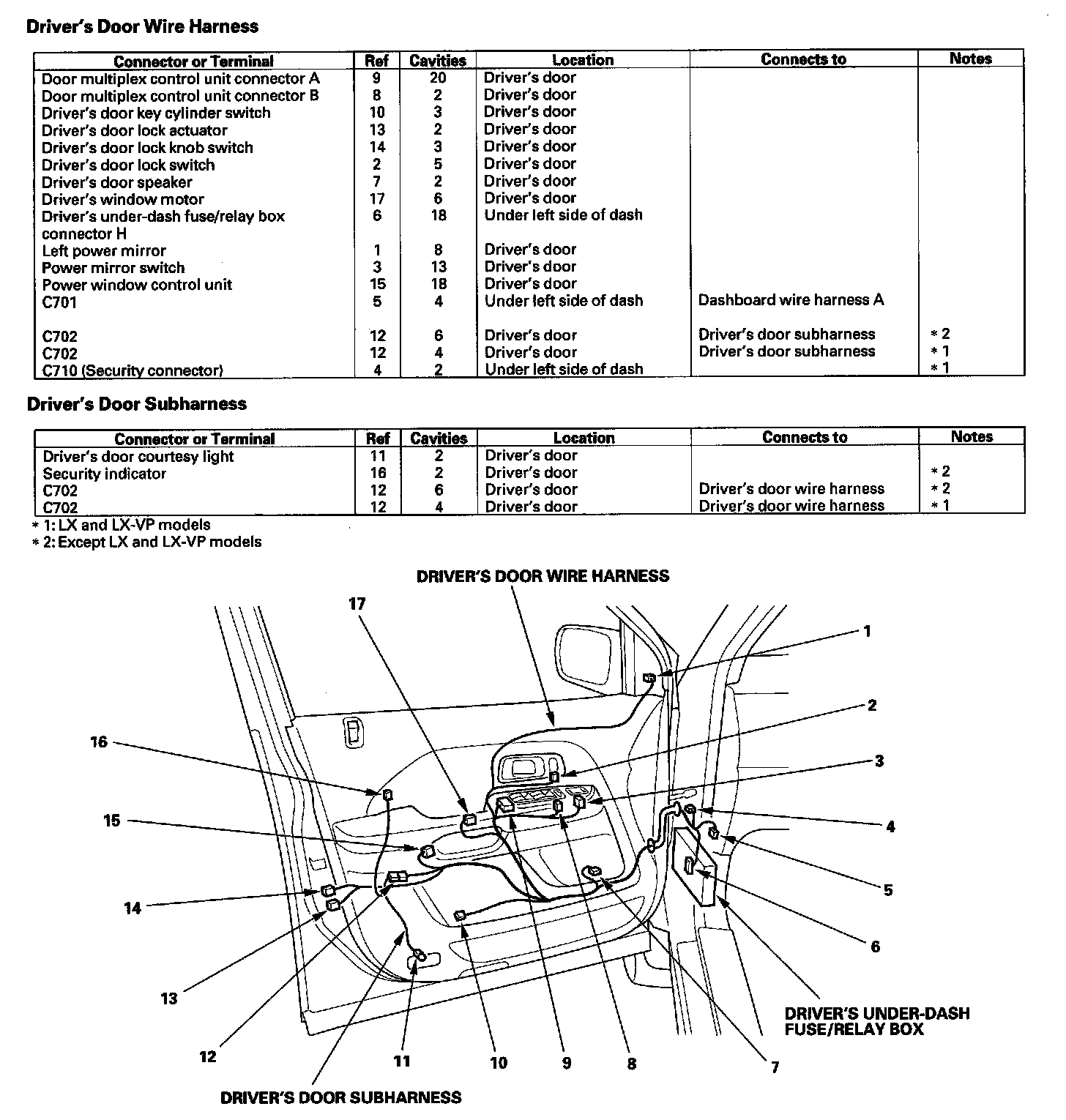

Driver's Door Wire Harness/Driver's Door Subharness:

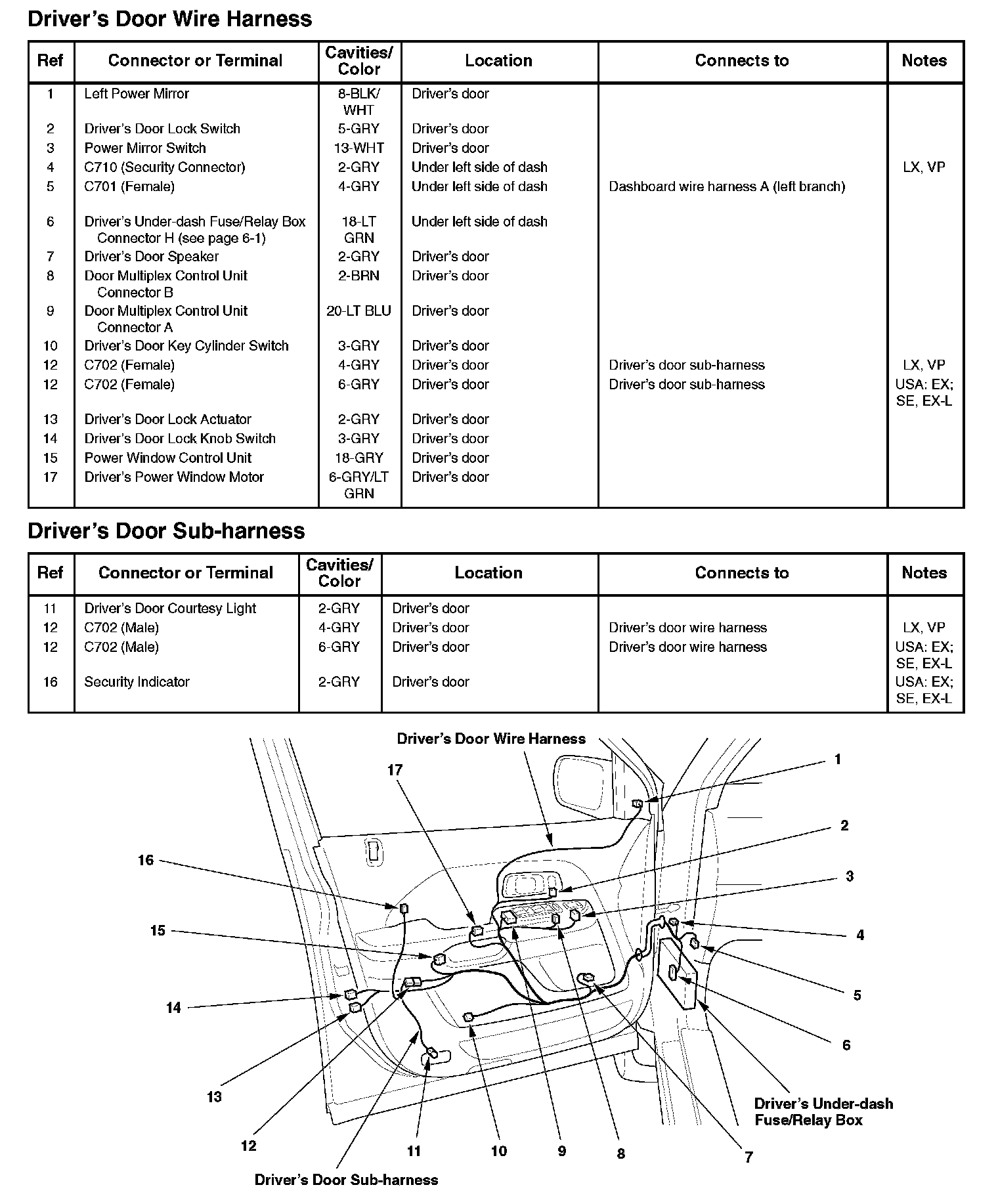

Driver's Door Wire Harness/Driver's Door Sub-harness:
