Right Engine Compartment Wire Harness
>>
Part 2 of 2
Part 2 of 2

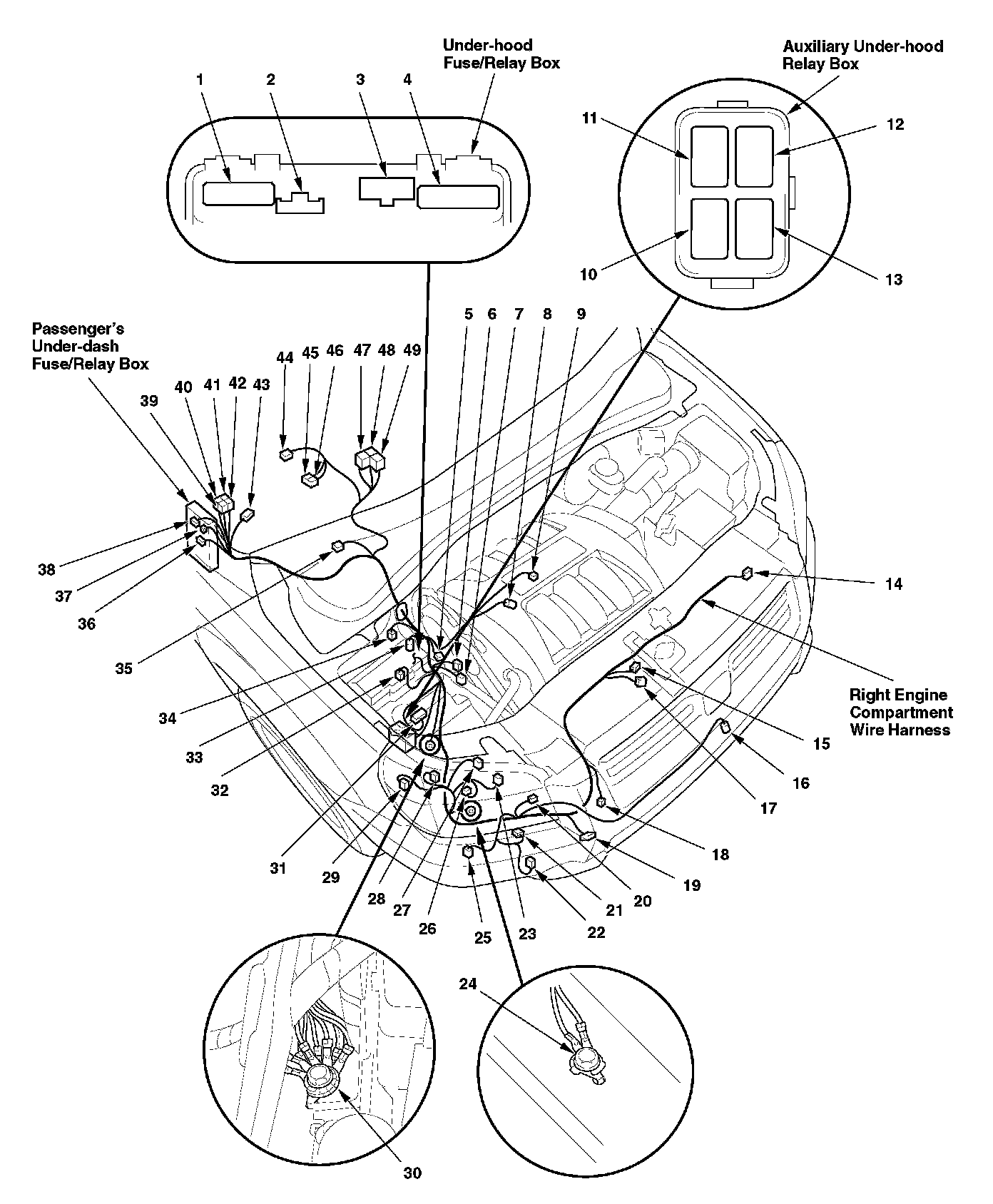

Harness Location View:

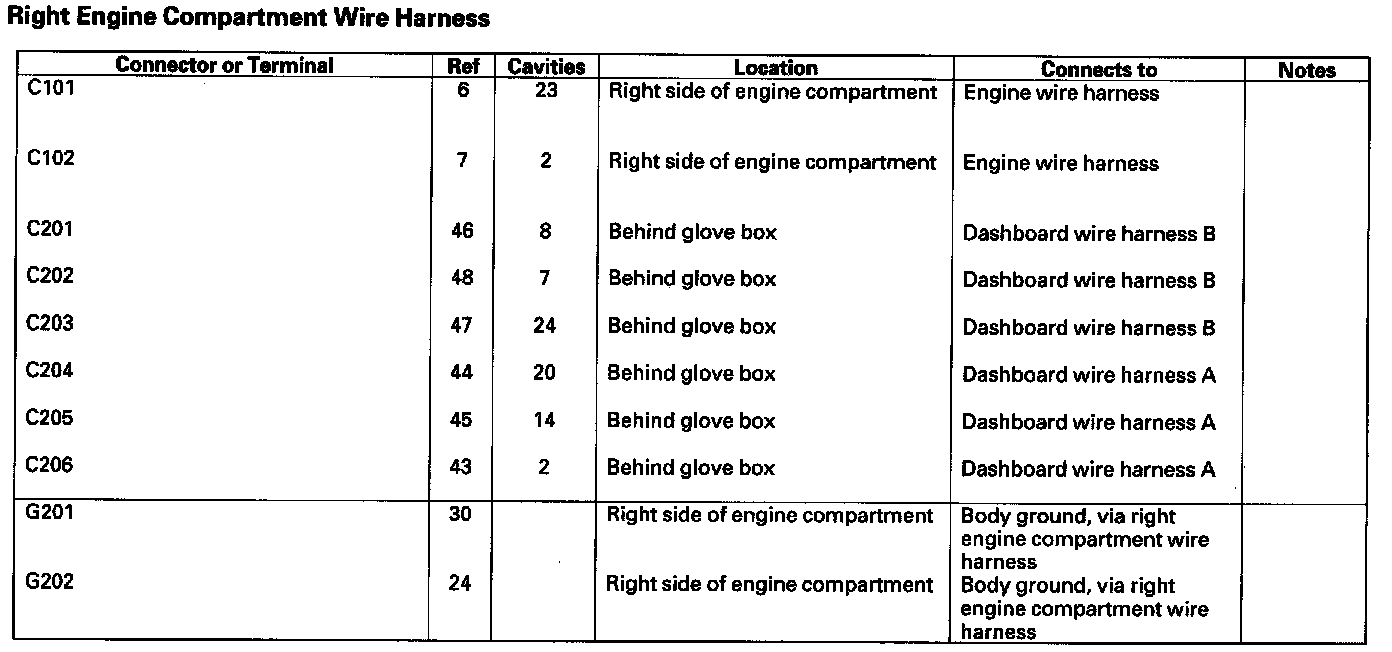

Right Engine Compartment Wire Harness:

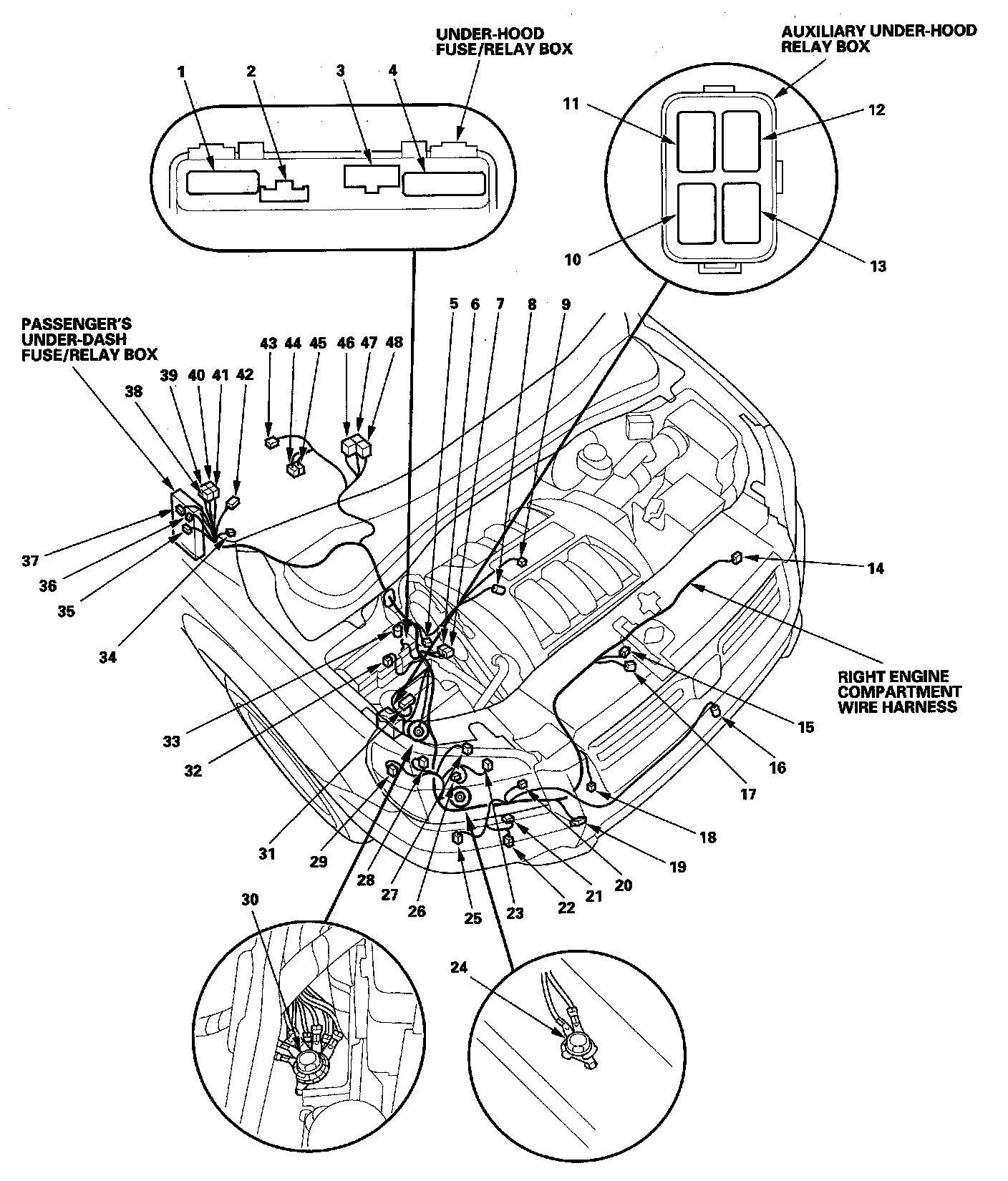

Harness Location View:

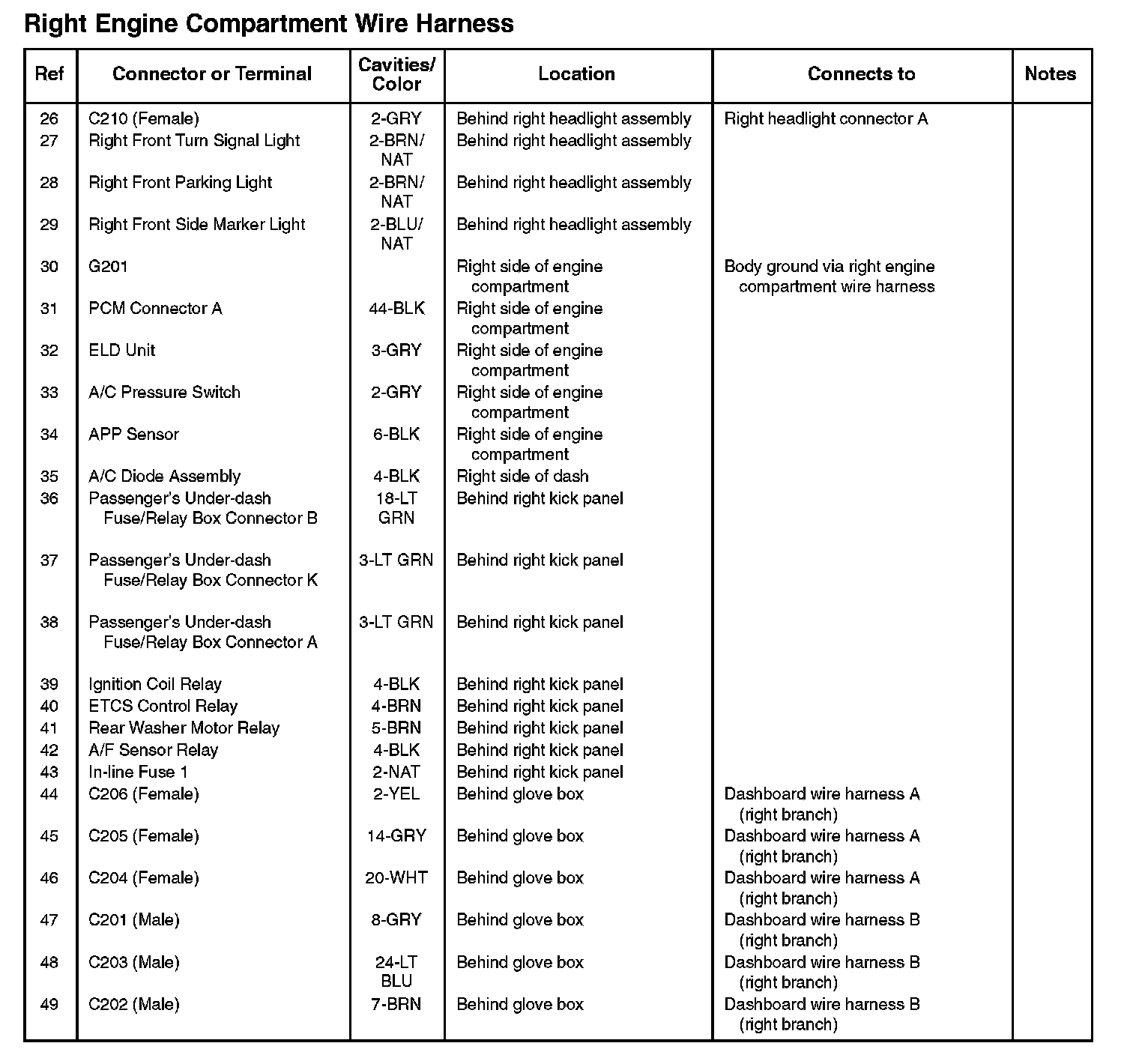

Right Engine Compartment Wire Harness:
