Right Side Wire Harness
Right Side Wire Harness

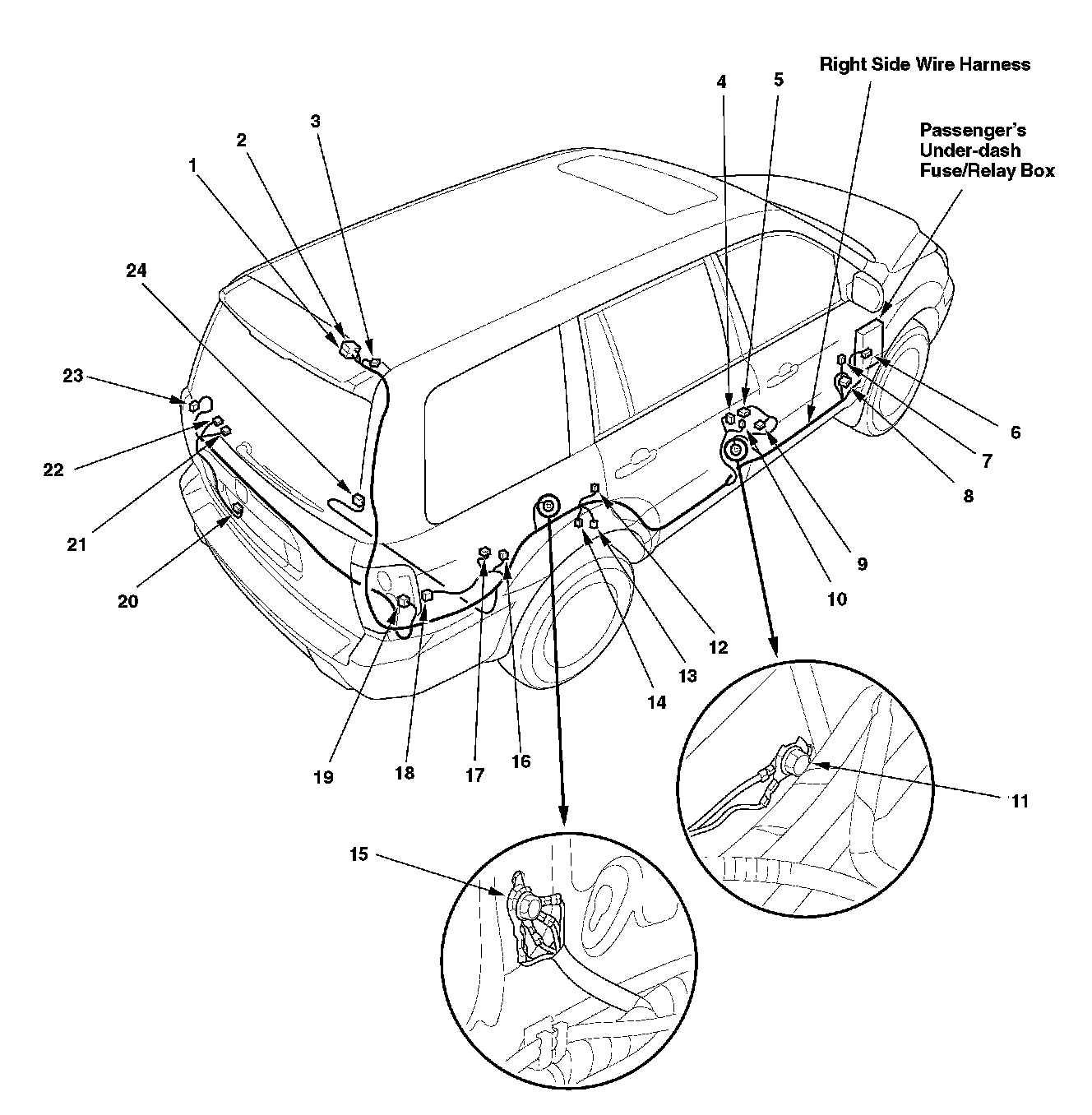

Harness Location View:

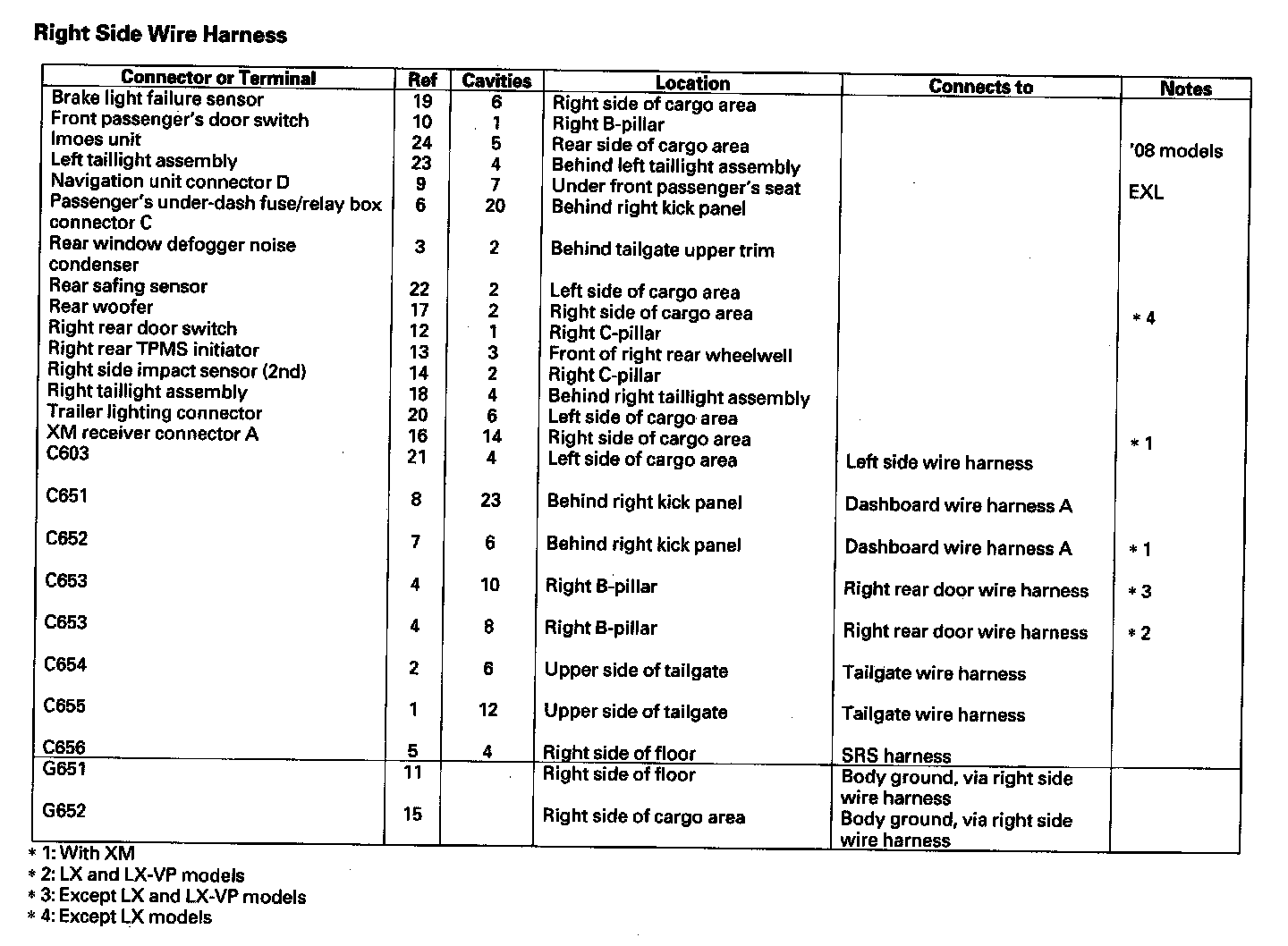

Right Side Wire Harness:
Harness Location View:

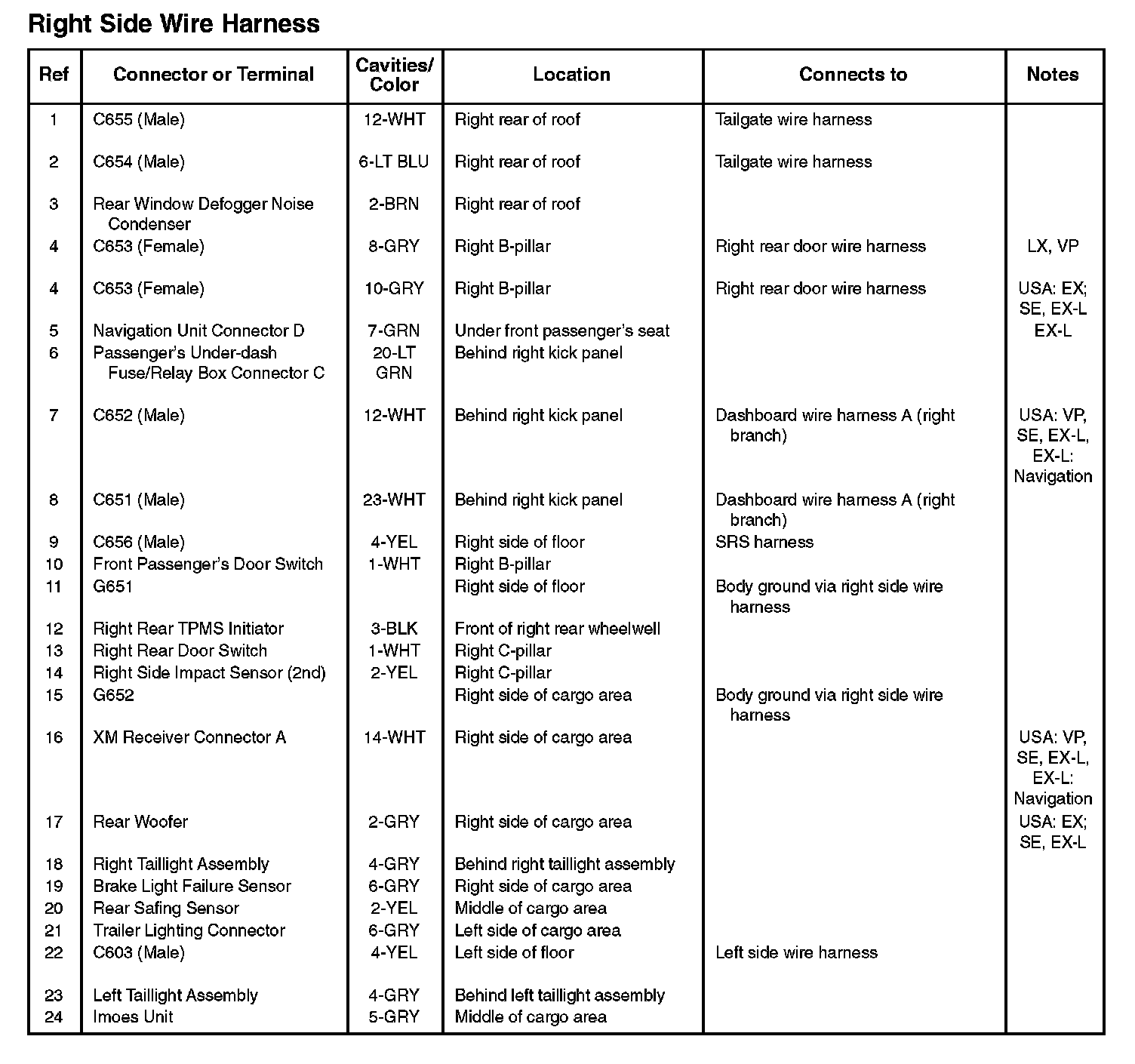

Right Side Wire Harness:
