Roof Wire Harness

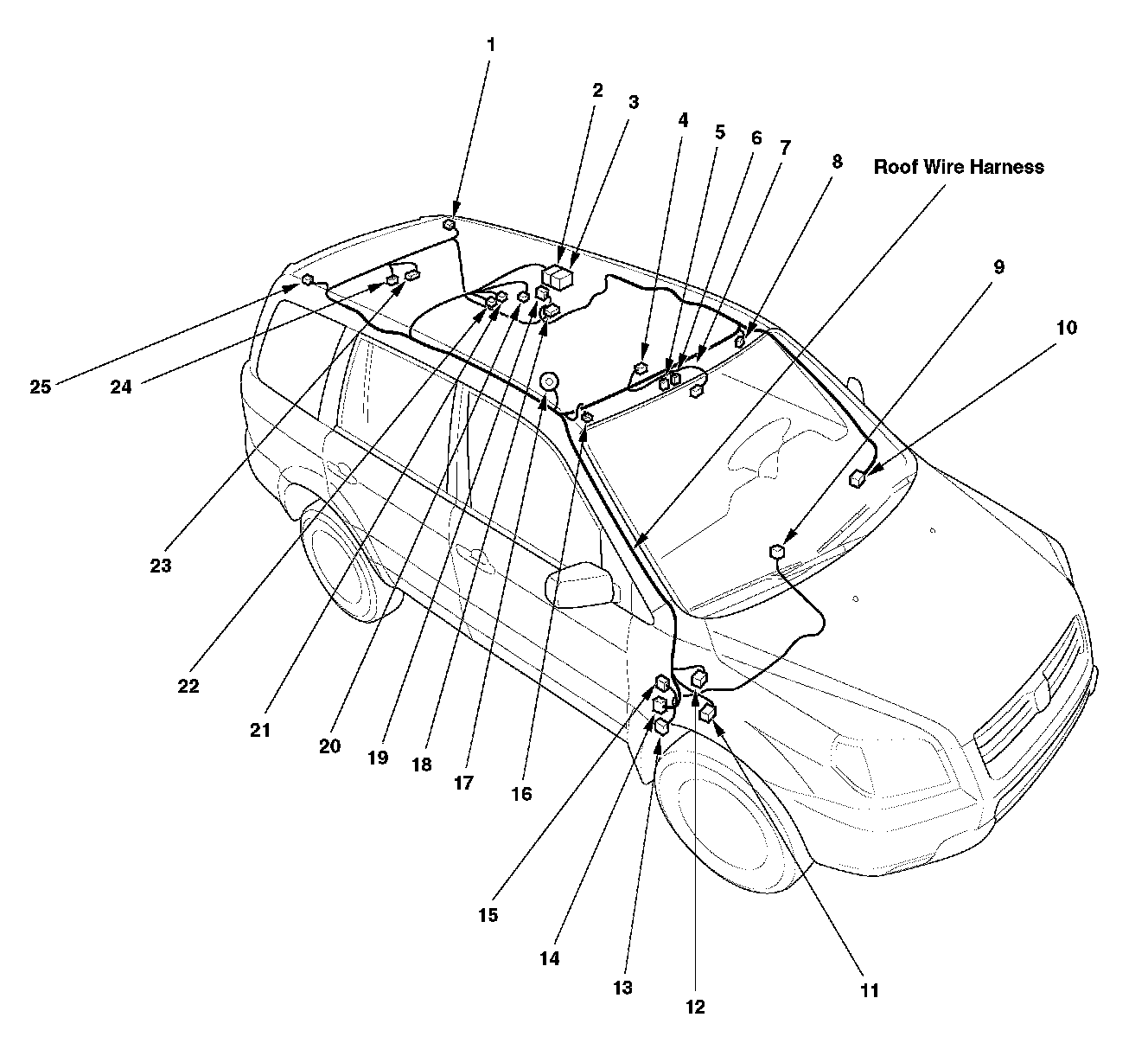

Harness Location View:

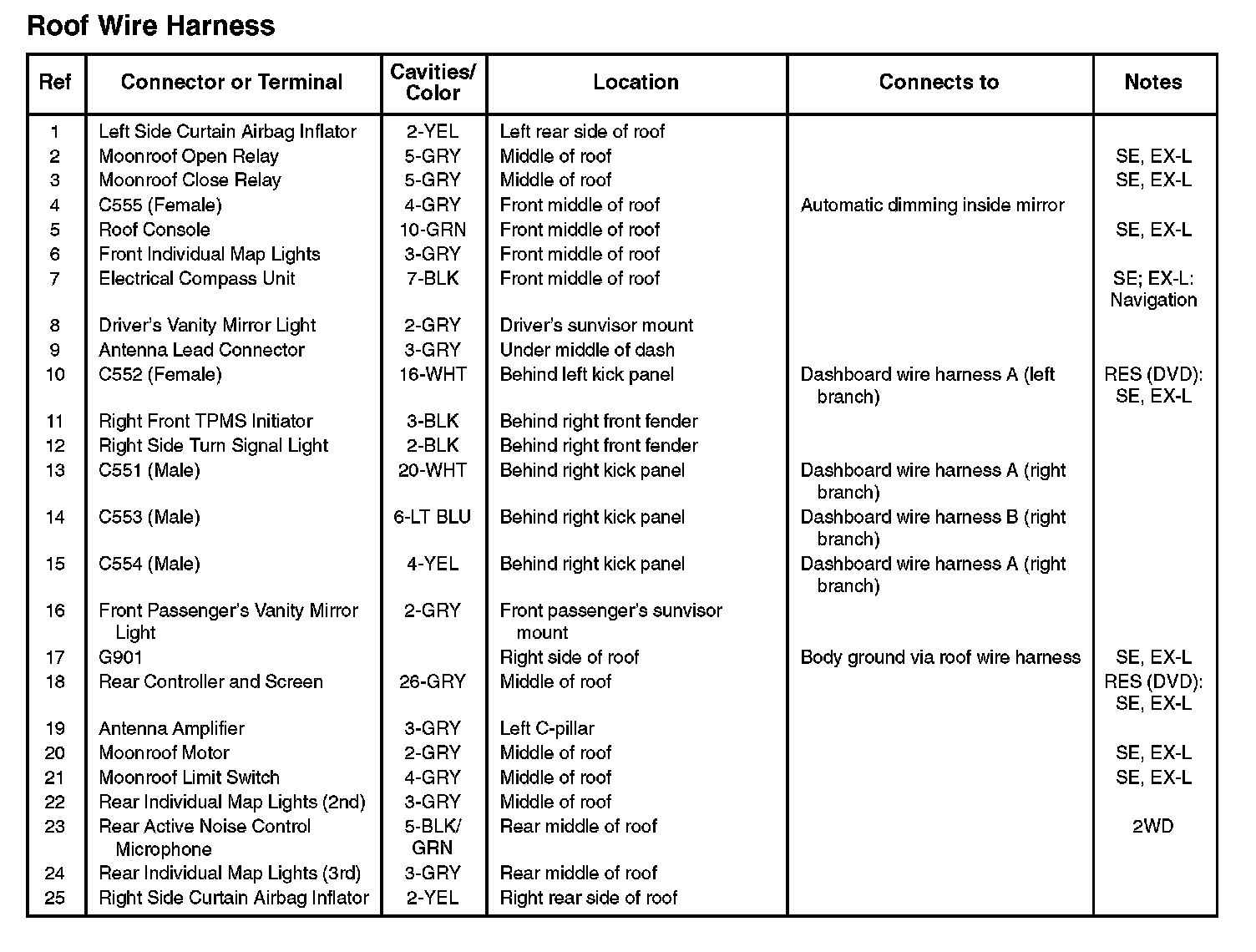

Roof Wire Harness:
Harness Location View:
Roof Wire Harness:
