Engine Lubrication: Locations

Component Location Index

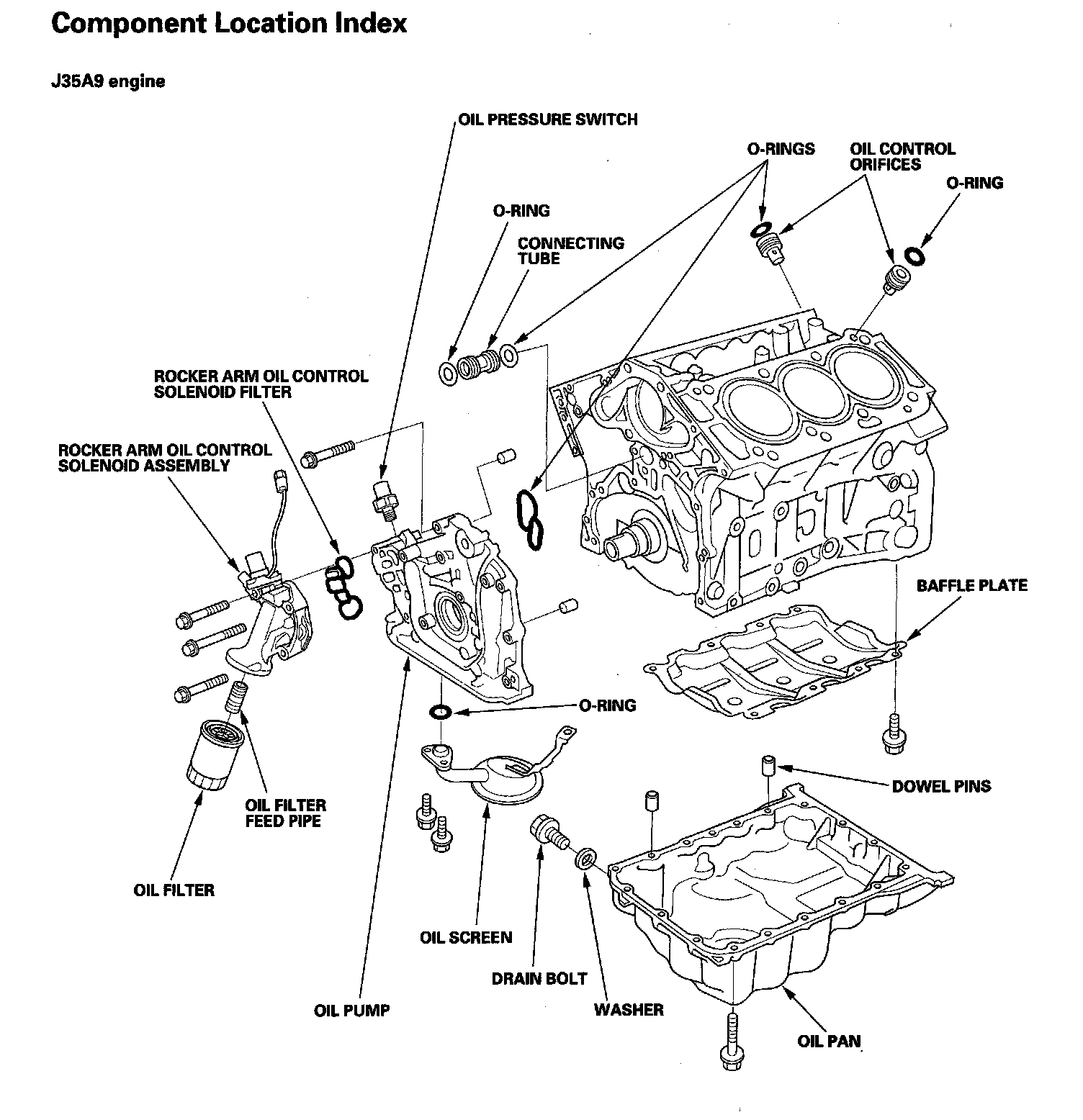

Engine Lubrication Component Location Index (Part 1):

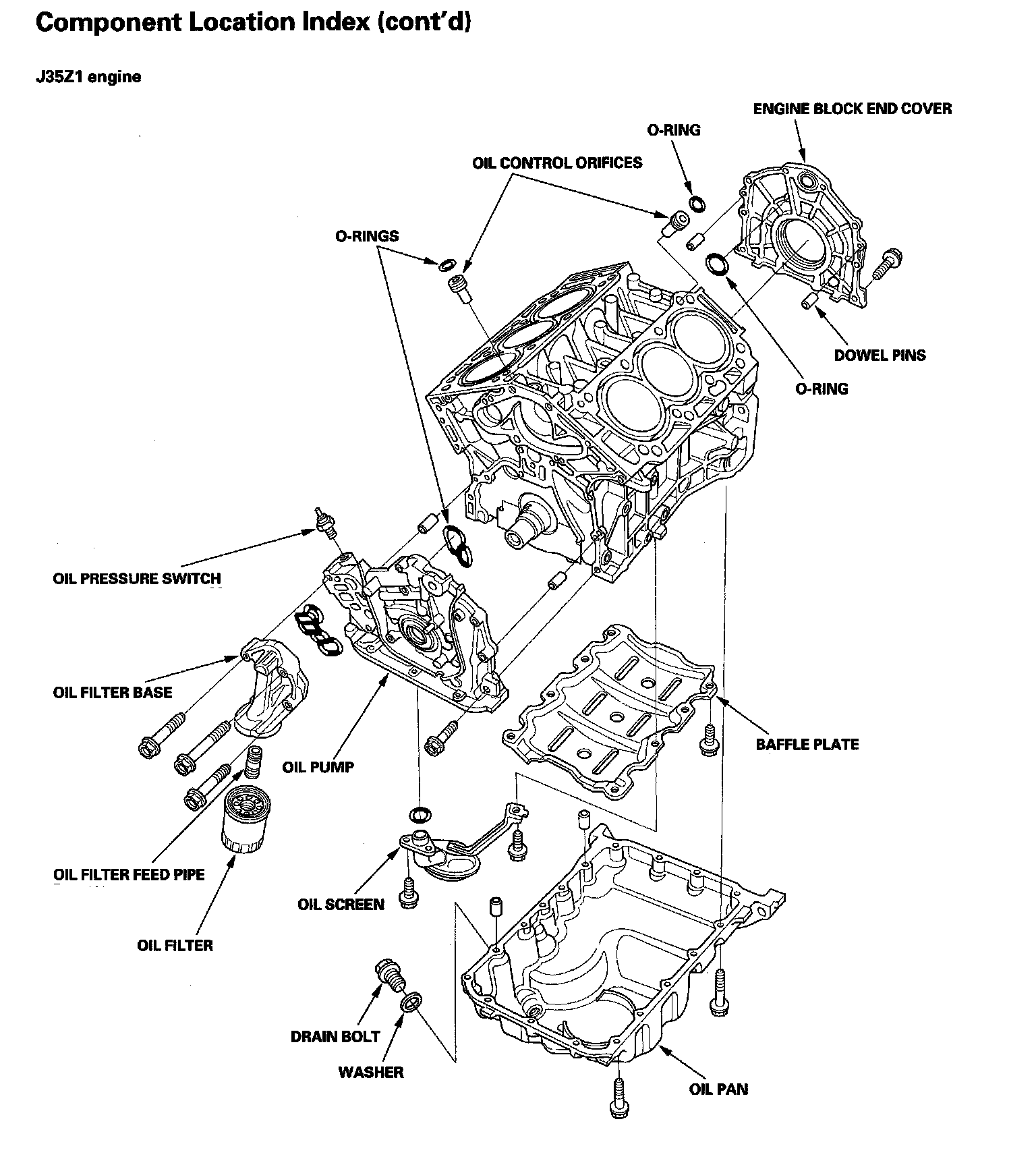

Engine Lubrication Component Location Index (Part 2):




Engine Lubrication Component Location Index (Part 3):
