Home >> Honda >> 2008 >> Pilot 4WD V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Locations

Fog/Driving Lamp: Locations

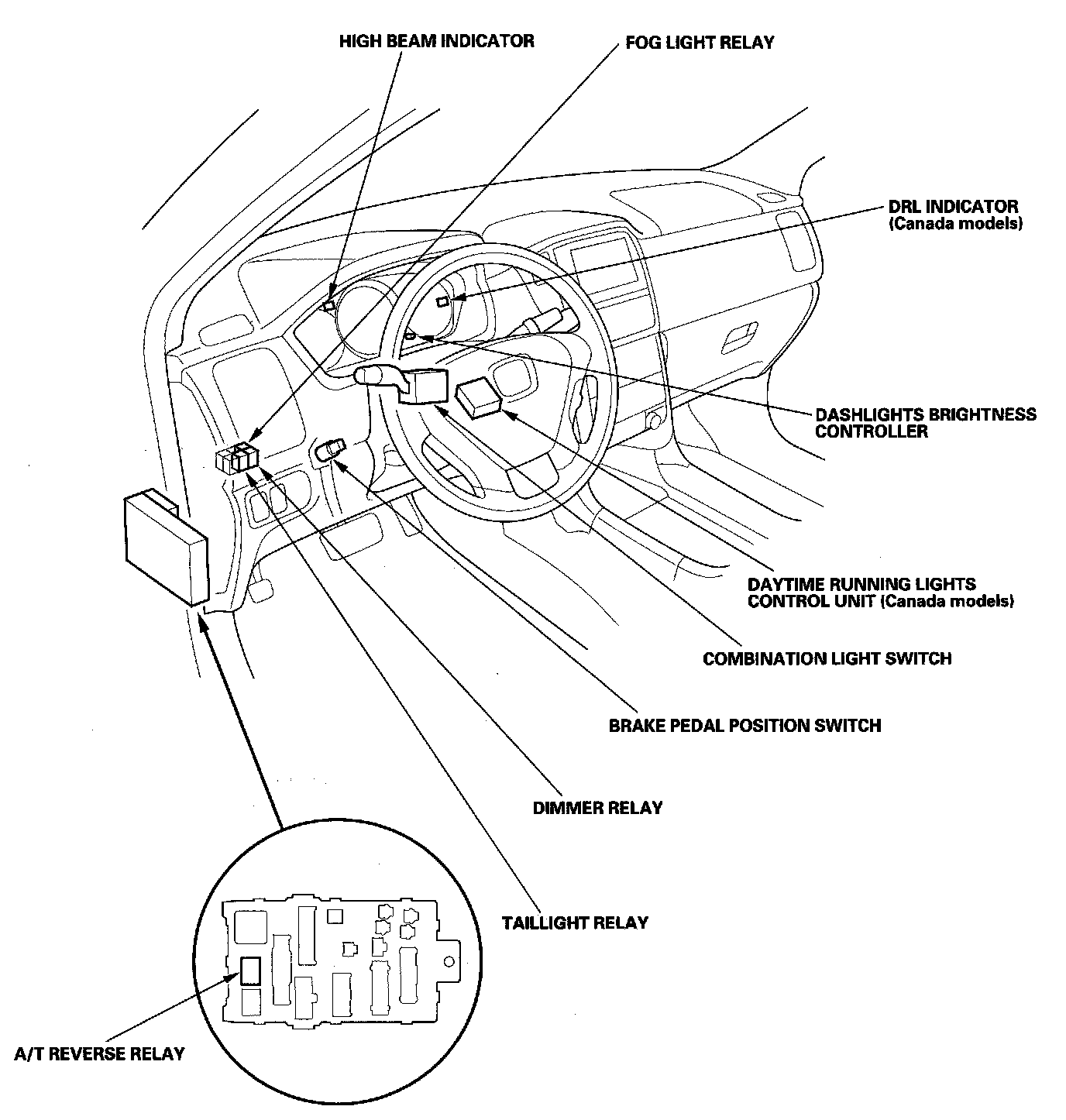

75. Under Left Side Of Dash:

Relay And Control Unit Locations Dashboard:

Exterior Lights Component Location Index:
